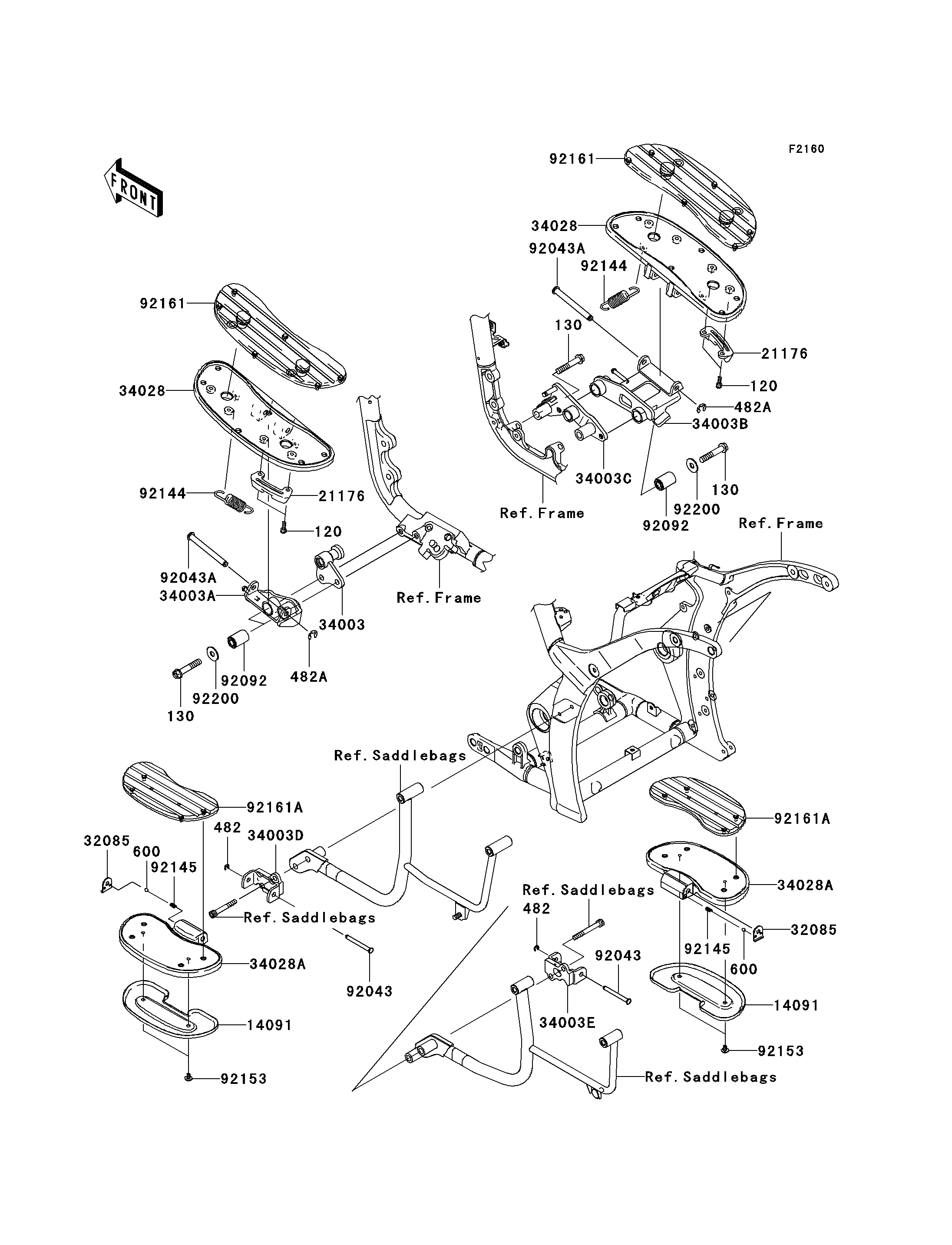

2007 Vulcan 2000 Classic LT - Footrests

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130
130
482
482
482A
482A
600
600
14091
14091
21176
21176
32085
32085
34003
34003A
34003B
34003C
34003D
34003E
34028
34028
34028A
34028A
92043
92043
92043A
92043A
92092
92092
92144
92144
92145
92145
92153
92153
92161
92161
92161A
92161A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X16 120 120S0616 4
BOLT-FLANGED,10X55 130 130L1055 6
CIRCLIP-TYPE-E 482 482L7000 2
CIRCLIP-TYPE-E,8MM 482A 482L8000 2
BALL-STEEL,1/4" 600 600A0800 2
COVER,REAR STEP 14091 14091-0229 2
SENSOR,BANK 21176 21176-0021 2
STOPPER,REAR STEP 32085 32085-0045 2
HOLDER-STEP,FR,LH 34003 34003-0020 1
HOLDER-STEP,FR,LH 34003A 34003-0026 1
HOLDER-STEP,FR,RH 34003B 34003-0029 1
HOLDER-STEP,FR,RH 34003C 34003-0031 1
HOLDER-STEP,RR,LH 34003D 34003-0041 1
HOLDER-STEP,RR,RH 34003E 34003-0042 1
STEP,FR 34028 34028-0011 2
STEP,RR 34028A 34028-0051 2
PIN,8X76.5 92043 92043-0054 2
PIN,10X98.5 92043A 92043-1707 2
BUSHING-RUBBER 92092 92092-0005 4
SPRING 92144 92144-1266 2
SPRING 92145 92145-1319 2
BOLT,SOCKET,6X10 92153 92153-1096 4
DAMPER,FOOT BOARD 92161 92161-0126 2
DAMPER,REAR STEP 92161A 92161-0145 2
WASHER,10.3X28X2.3 92200 92200-0113 4
