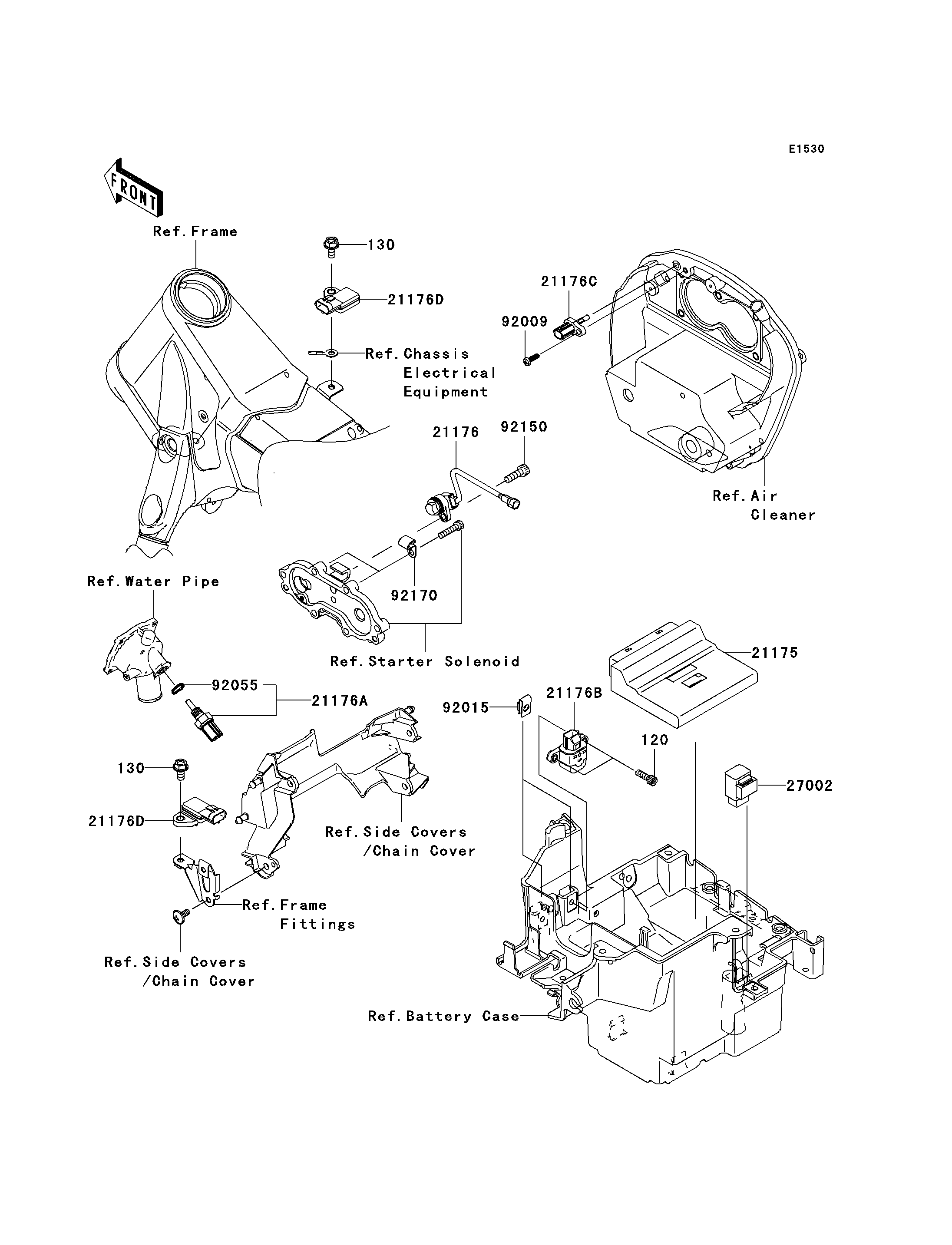

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X16 120 120CB0516 2
BOLT-FLANGED,6X12 130 130BB0612 2
CONTROL UNIT-ELECTRONIC 21175 21175-0160 1
SENSOR,CAM ANGLE 21176 21176-0007 1
SENSOR,WATER TEMP 21176A 21176-0009 1
SENSOR 21176B 21176-0025 1
SENSOR,AIR TEMPERATURE 21176C 21176-0048 1
SENSOR,PRESSURE 21176D 21176-0058 2
RELAY-ASSY 27002 27002-1062 1
SCREW,TAPPING,5X16 92009 92009-1984 1
NUT,5MM 92015 92015-1710 2
RING-O,9.5X1.9 92055 92055-0016 1
BOLT,SOCKET,6X18 92150 92150-3775 1
CLAMP 92170 92170-1804 2
