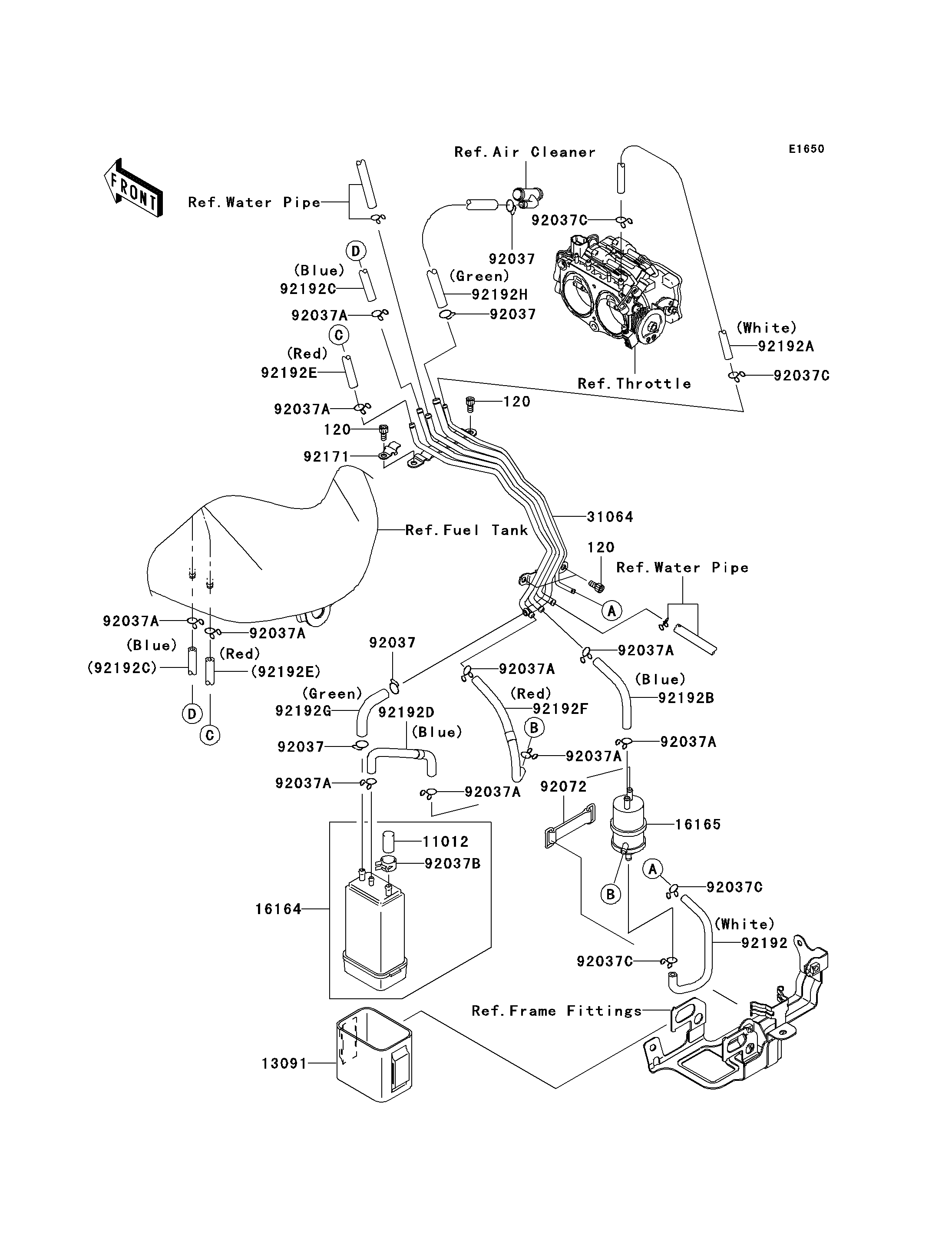

2008 Vulcan® 2000 Classic - Fuel Evaporative System(CA)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X12 | 120 | 120CB0612 | 4 | CA | |
| CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
| HOLDER,CANISTER | 13091 | 13091-1308 | 1 | CA | |
| CANISTER | 16164 | 16164-1054 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| PIPE-COMP | 31064 | 31064-0010 | 1 | CA | |
| CLAMP,HOSE | 92037 | 92037-1104 | 4 | CA | |
| CLAMP,TUBE | 92037A | 92037-147 | 10 | CA | |
| CLAMP,CANISTER | 92037B | 92037-1512 | 1 | CA | |
| CLAMP | 92037C | 92037-1712 | 4 | CA | |
| BAND,L=50 | 92072 | 92072-1419 | 1 | CA | |
| CLAMP | 92171 | 92171-0209 | 1 | CA | |
| TUBE,SEPARATOR-PIPE,WHITE | 92192 | 92192-0013 | 1 | CA | |
| TUBE,4X9X510,WHITE | 92192A | 92192-0121 | 1 | CA | |
| TUBE,SEPARATOR-PIPE,BLUE | 92192B | 92192-0561 | 1 | CA | |
| TUBE,TANK-PIPE,BLUE | 92192C | 92192-0562 | 1 | CA | |
| TUBE,SEPARATOR-CANISTER,BLUE | 92192D | 92192-0563 | 1 | CA | |
| TUBE,TANK-PIPE,RED | 92192E | 92192-0564 | 1 | CA | |
| TUBE,SEPARATOR-PIPE,RED | 92192F | 92192-0565 | 1 | CA | |
| TUBE,CANISTER-PIPE,GREEN | 92192G | 92192-0566 | 1 | CA | |
| TUBE,7X12X430,GREEN | 92192H | 92192-0567 | 1 | CA |
| BOLT-SOCKET,6X12 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| CAP,CANISTER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| HOLDER,CANISTER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| SEPARATOR | |
| REF # | 16165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| PIPE-COMP | |
| REF # | 31064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,CANISTER | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=50 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEPARATOR-PIPE,WHITE | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,4X9X510,WHITE | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEPARATOR-PIPE,BLUE | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,TANK-PIPE,BLUE | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEPARATOR-CANISTER,BLUE | |
| REF # | 92192D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,TANK-PIPE,RED | |
| REF # | 92192E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEPARATOR-PIPE,RED | |
| REF # | 92192F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,CANISTER-PIPE,GREEN | |
| REF # | 92192G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,7X12X430,GREEN | |
| REF # | 92192H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
