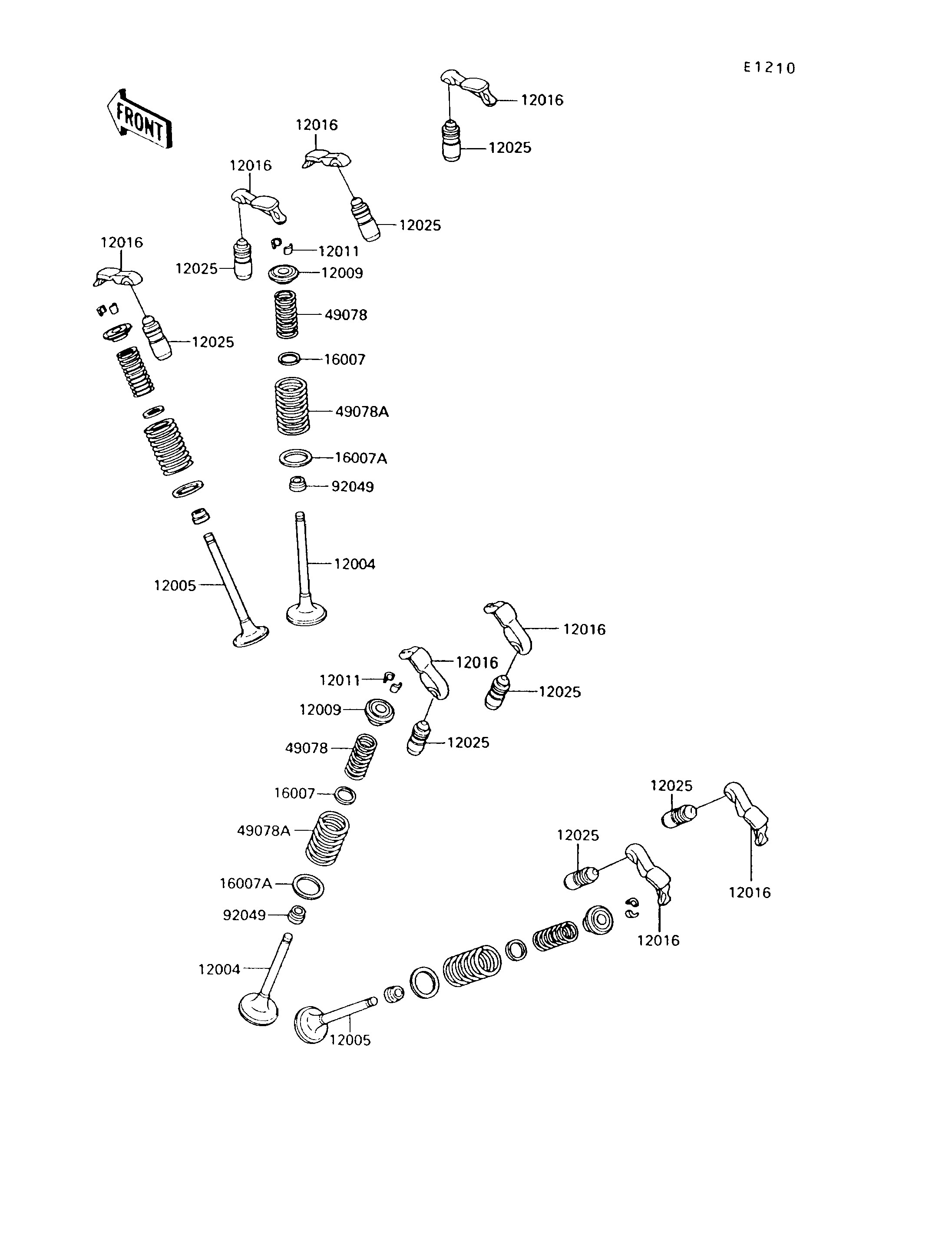

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-1061 4
VALVE-EXHAUST 12005 12005-1064 4
RETAINER-VALVE SPRING 12009 12009-1054 8
COLLET 12011 12011-1003 16
ARM-ROCKER 12016 12016-1053 8
ADJUSTER-LASH 12025 12025-1052 8
SEAT-SPRING,12.1X16.2X0.5 16007 16007-1177 8
SEAT-SPRING,17.5X23.8X0.5 16007A 16007-1178 8
SPRING-ENGINE VALVE,INNER 49078 49078-1058 8
SPRING-ENGINE VALVE,OUTER 49078A 49078-1059 8
SEAL-OIL,RVC2-5.5X8.5X8.3 92049 92049-1062 8
