Parts Diagrams |

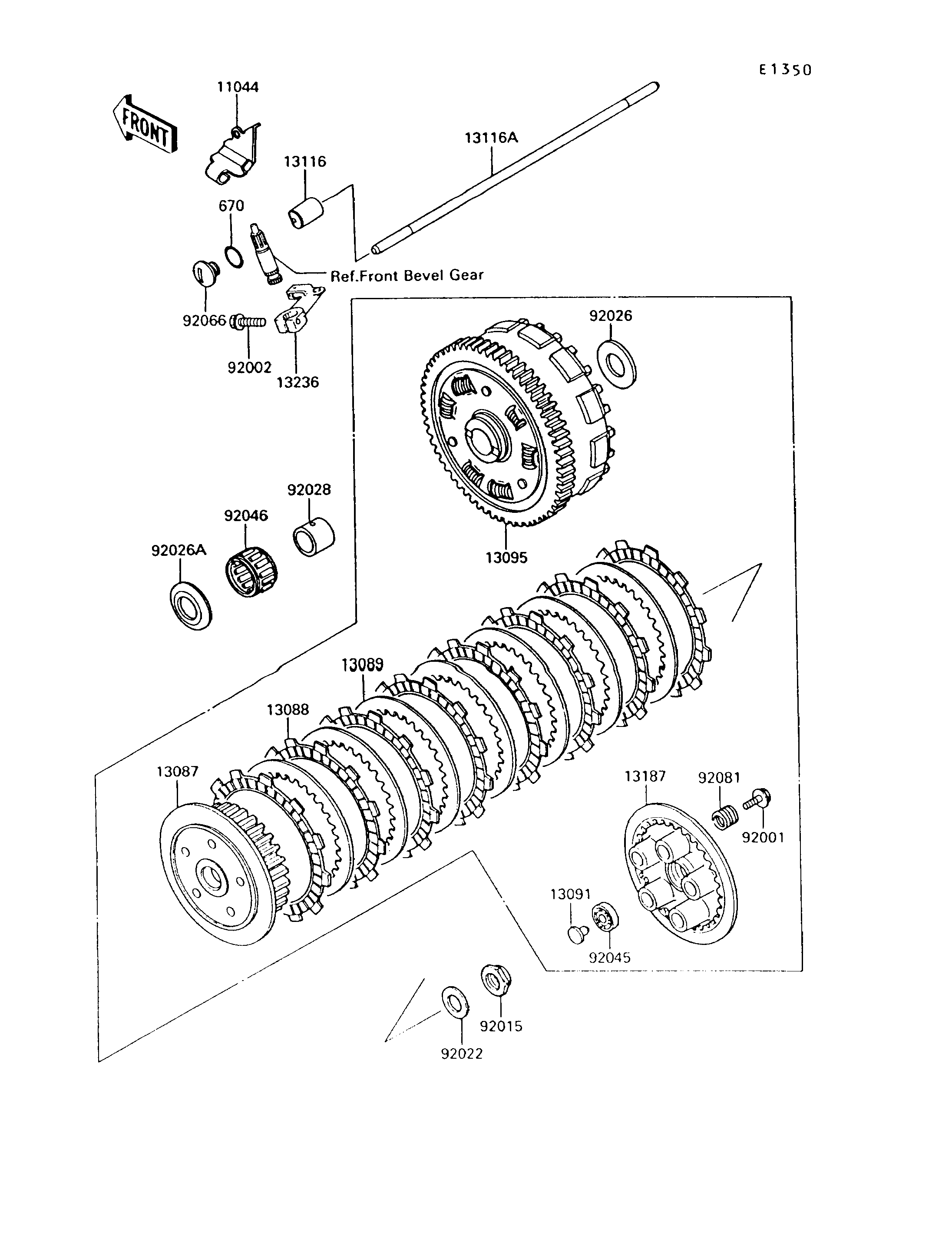

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| O RING,15MM | 670 | 670B2015 | 1 | ||
| BRACKET,CLUTCH CABLE | 11044 | 11044-1473 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-042 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1087 | 8 | ||
| PLATE-CLUTCH | 13089 | 13089-027 | 7 | ||
| HOLDER,CLUTCH PUSH ROD | 13091 | 13091-1085 | 1 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-1302 | 1 | ||
| ROD-PUSH,CLUTCH,6T | 13116 | 13116-1040 | 1 | ||
| ROD-PUSH,L=316.5 | 13116A | 13116-1114 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-1006 | 1 | ||
| LEVER-COMP,CLUTCH RELEASE | 13236 | 13236-1140 | 1 | ||
| BOLT,FLANGED,6X18 | 92001 | 92001-1066 | 5 | ||
| BOLT,6X20 | 92002 | 92002-1237 | 1 | ||
| NUT,20MM | 92015 | 92015-1555 | 1 | ||
| WASHER,20.3X36X2.3 | 92022 | 92022-1116 | 1 | ||
| SPACER,25.5X47X2.5 | 92026 | 92026-022 | 1 | ||
| SPACER,THRUST,T=5.5 | 92026A | 92026-116 | 1 | ||
| BUSHING,25X32X23.6 | 92028 | 92028-178 | 1 | ||
| BEARING-BALL,6001C3ML01 | 92045 | 92045-1235 | 1 | ||
| BEARING-NEEDLE,KTV323723 | 92046 | 92046-028 | 1 | ||
| PLUG | 92066 | 92066-1237 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-1033 | 5 |
| O RING,15MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,CLUTCH CABLE | |
| REF # | 11044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB-CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH PUSH ROD | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-COMP-CLUTCH | |
| REF # | 13095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-PUSH,CLUTCH,6T | |
| REF # | 13116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-PUSH,L=316.5 | |
| REF # | 13116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH OPERATING | |
| REF # | 13187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP,CLUTCH RELEASE | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X18 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.3X36X2.3 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,25.5X47X2.5 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,THRUST,T=5.5 | |
| REF # | 92026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,25X32X23.6 | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,6001C3ML01 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,KTV323723 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
