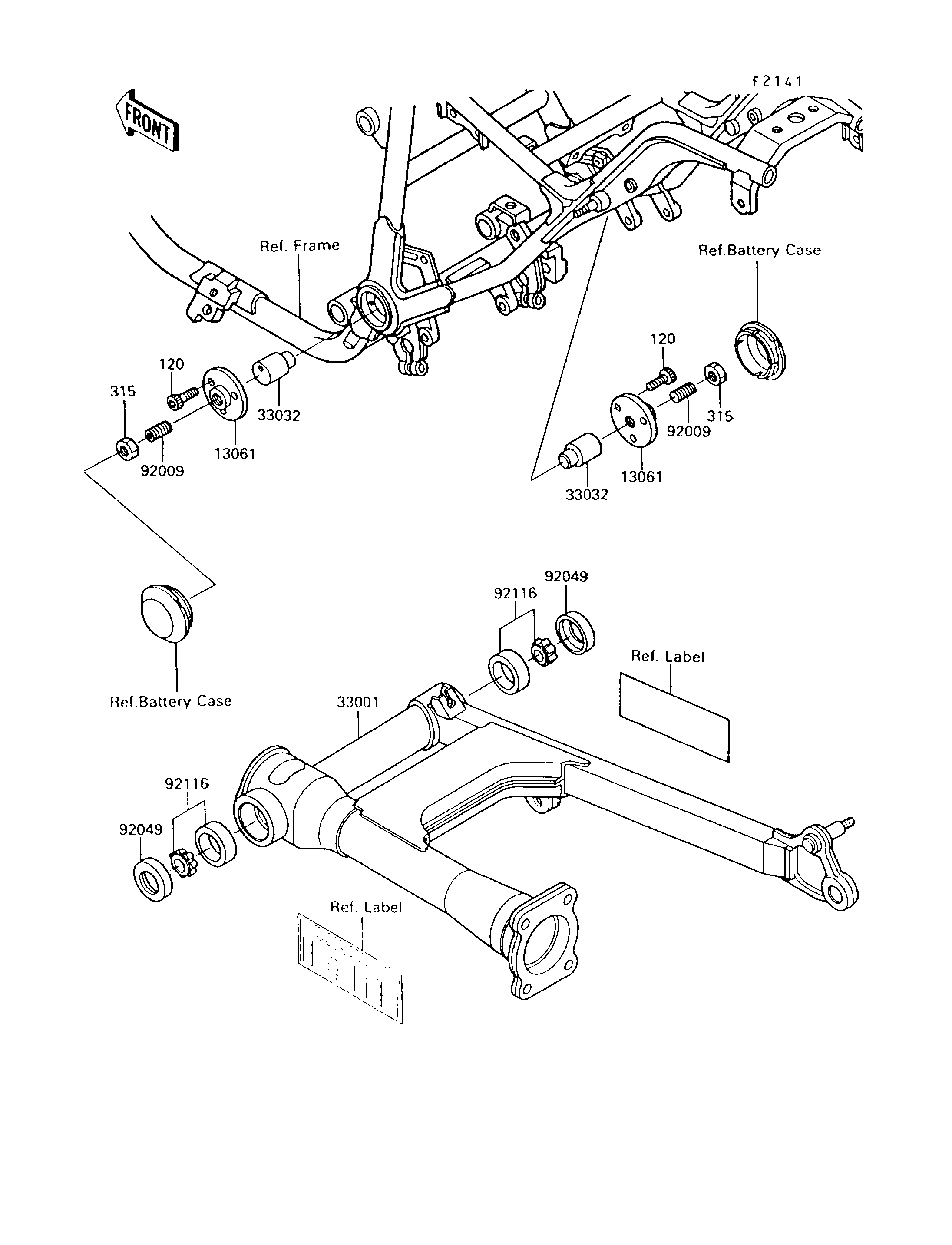

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X16 120 120P0616 6
NUT-HEX-FINE 315 315B1200 2
BOSS 13061 13061-1149 2
ARM-COMP-SWING 33001 33001-1234 1
SHAFT-SWING ARM 33032 33032-1043 2
SCREW,SOCKET,12X22 92009 92009-1374 2
SEAL-OIL,26406 92049 92049-1030 2
BEARING-ROLLER,4T30203E1 92116 92116-1001 2
