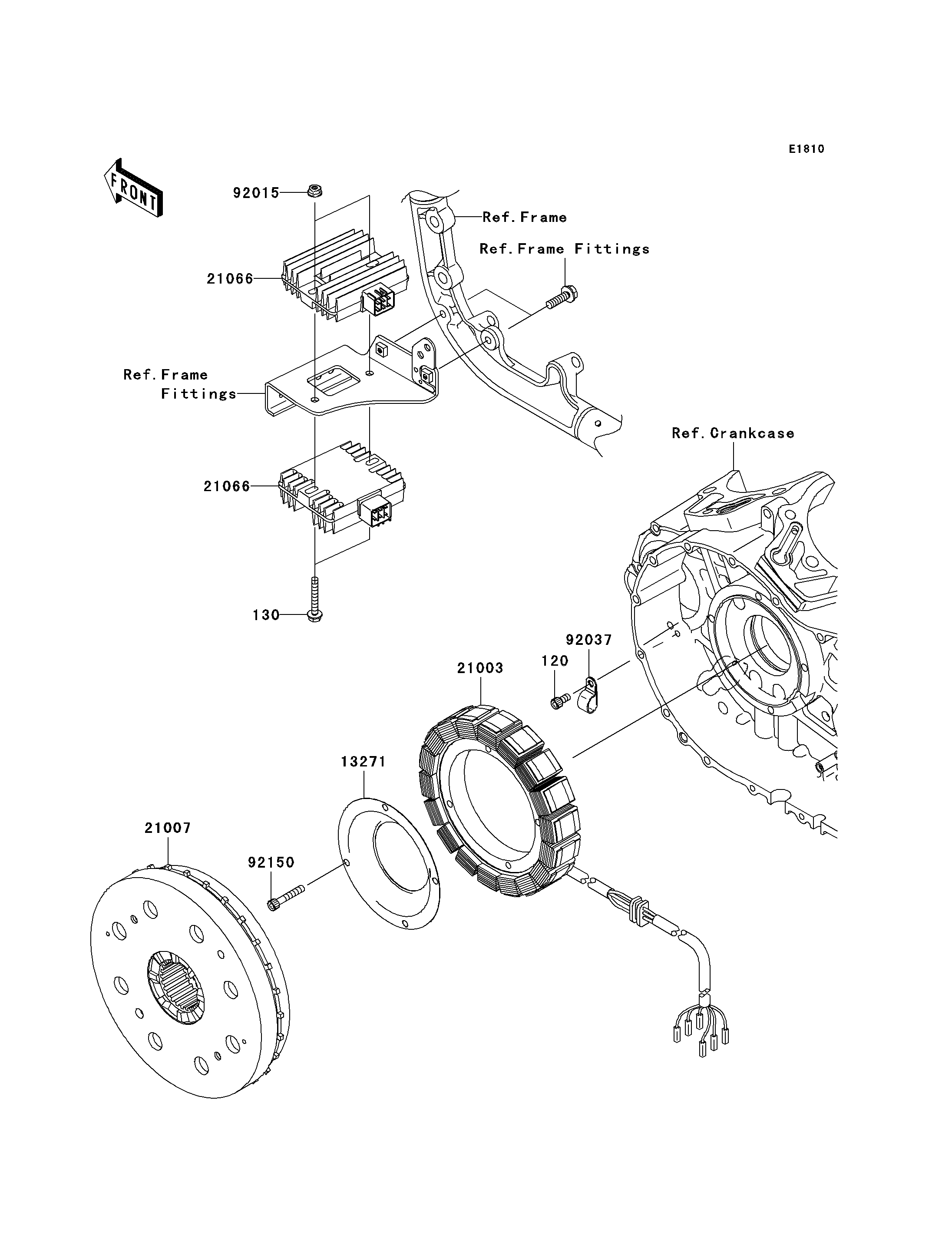

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120R0612 1
BOLT-FLANGED,6X40 130 130BB0640 2
PLATE 13271 13271-0066 1
STATOR 21003 21003-0029 1
ROTOR 21007 21007-0047 1
REGULATOR-VOLTAGE 21066 21066-0012 2
NUT,6MM 92015 92015-1386 2
CLAMP 92037 92037-1608 1
BOLT,SOCKET,6X35 92150 92150-1484 4
