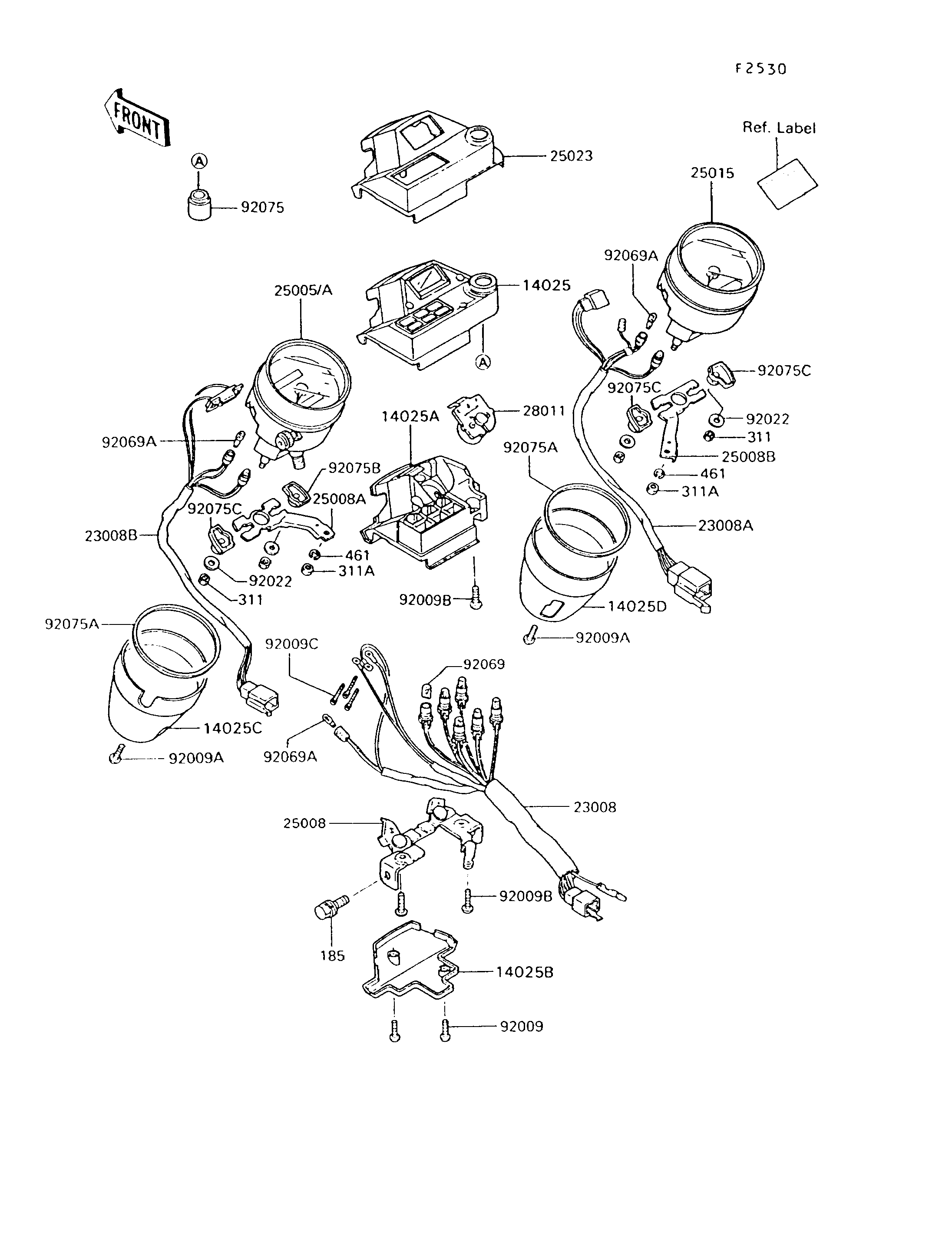

1998 Vulcan 750 - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP-SMALL 185 185C0816 2
NUT-HEX 311 311B0500 4
NUT-HEX,6MM 311A 311B0600 2
WASHER-SPRING,6MM 461 461F0600 2
COVER,PILOT BOX,UPP 14025 14025-1742 1
COVER,PILOT BOX,INNER 14025A 14025-1743 1
COVER,PILOT BOX,LWR 14025B 14025-1744 1
COVER,SPEEDOMETER 14025C 14025-1745 1
COVER,TACHOMETER 14025D 14025-1746 1
SOCKET-ASSY,PILOT BOX 23008 23008-1255 1
SOCKET-ASSY,TACHOMETER 23008A 23008-1257 1
SOCKET-ASSY,SPEEDOMETER 23008B 23008-1398 1
SPEEDOMETER,MPH 25005 25005-1408 1
BRACKET-METER,PILOT BOX 25008 25008-1115 1
BRACKET-METER,SPEEDOMETER 25008A 25008-1116 1
BRACKET-METER,TACHOMETER 25008B 25008-1117 1
TACHOMETER,(X1000R/MIN) 25015 25015-1235 1
COVER-METER CASE,PILOT BOX 25023 25023-1125 1
METER,FUEL 28011 28011-1071 1
SCREW,TAPPING,4X14 92009 92009-1034 2
SCREW,TAPPING,4X16 92009A 92009-1063 2
SCREW,TAPPING,4X16 92009B 92009-1163 6
SCREW,3X22 92009C 92009-1293 3
WASHER,5.2X16X1.2 92022 92022-263 4
BULB,12V 3.4W 92069 92069-1007 6
BULB,12V3W T-7 92069A 92069-1020 5
DAMPER,TRIP METER 92075 92075-1286 1
DAMPER,METER 92075A 92075-1712 2
DAMPER,METER 92075B 92075-1713 1
DAMPER,METER 92075C 92075-1714 3
