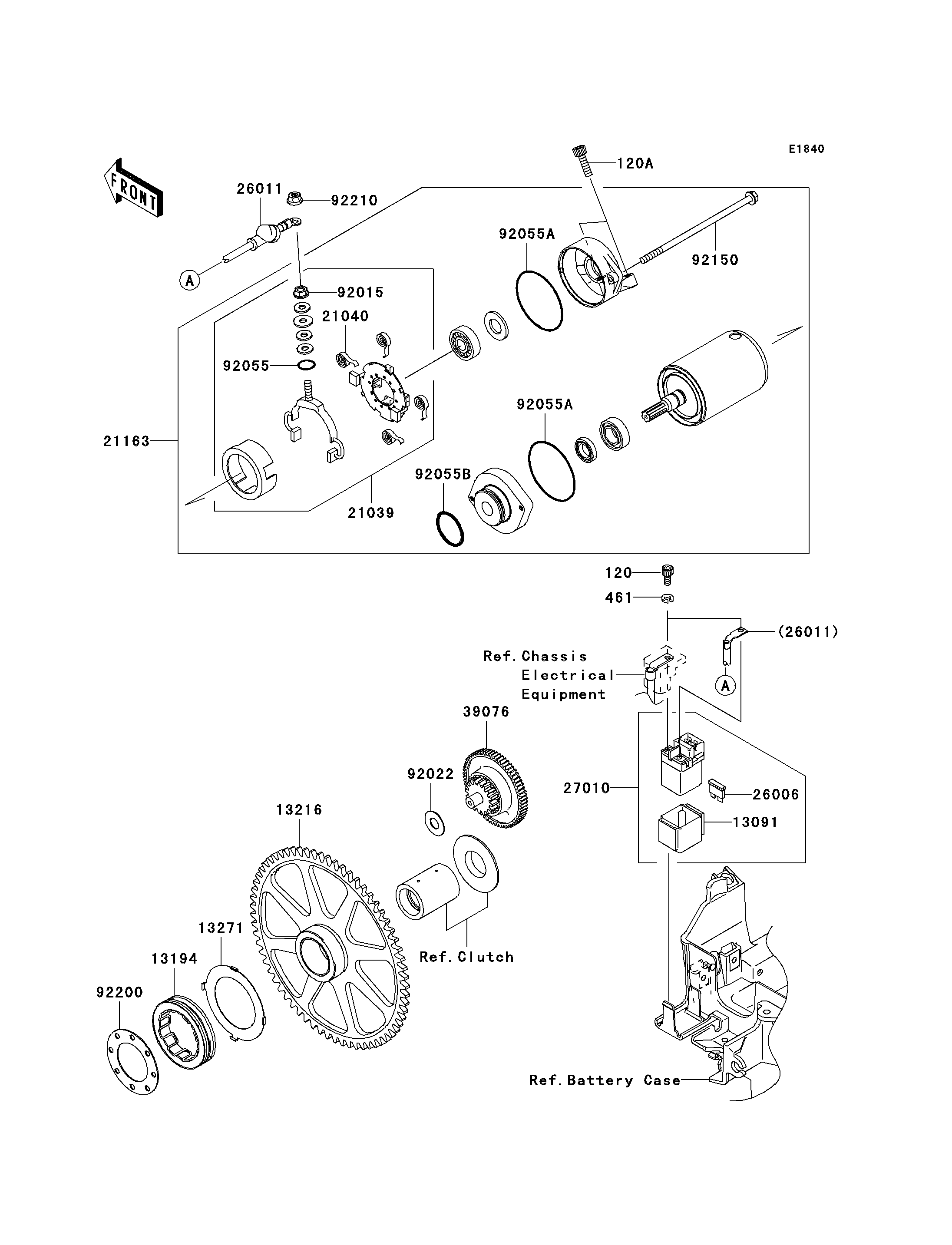

2008 Vulcan® 2000 Classic - Starter Motor
120
120A
461
13091
13194
13216
13271
21039
21040
21163
26006
26011
27010
39076
92015
92022
92055
92055A
92055A
92055B
92150
92200
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,5X10 | 120 | 120CB0510 | 2 | ||
BOLT-SOCKET,6X22 | 120A | 120R0622 | 2 | ||
WASHER-SPRING,5MM,BLACK | 461 | 461DB0500 | 2 | ||
HOLDER,MAGNETIC SWITCH | 13091 | 13091-1884 | 1 | ||
CLUTCH-ONEWAY | 13194 | 13194-0001 | 1 | ||
GEAR-COMP | 13216 | 13216-0010 | 1 | ||
PLATE | 13271 | 13271-0037 | 1 | ||
BRUSH,CARBON | 21039 | 21039-1060 | 1 | ||
SPRING-BRUSH | 21040 | 21040-1055 | 4 | ||
STARTER-ELECTRIC | 21163 | 21163-0001 | 1 | ||
FUSE,30A-G | 26006 | 26006-1006 | 1 | ||
WIRE-LEAD,STARTER MOTOR | 26011 | 26011-0044 | 1 | ||
SWITCH,MAGNETIC | 27010 | 27010-1327 | 1 | ||
LIMITER,STARTER IDLE GEAR | 39076 | 39076-0001 | 1 | ||
NUT,STARTER MOTOR | 92015 | 92015-1476 | 1 | ||
WASHER,12X27.5X1.0 | 92022 | 92022-1852 | 1 | ||
RING-O,4.5X2.0 | 92055 | 92055-1370 | 1 | ||
RING-O,STARTER MOTOR | 92055A | 92055-1381 | 2 | ||
RING-O,37MM | 92055B | 92055-1393 | 1 | ||
BOLT,STARTER MOTOR | 92150 | 92150-1913 | 2 | ||
WASHER,44X73.5X1.2 | 92200 | 92200-0019 | 1 | ||
NUT,6MM | 92210 | 92210-0188 | 1 |
