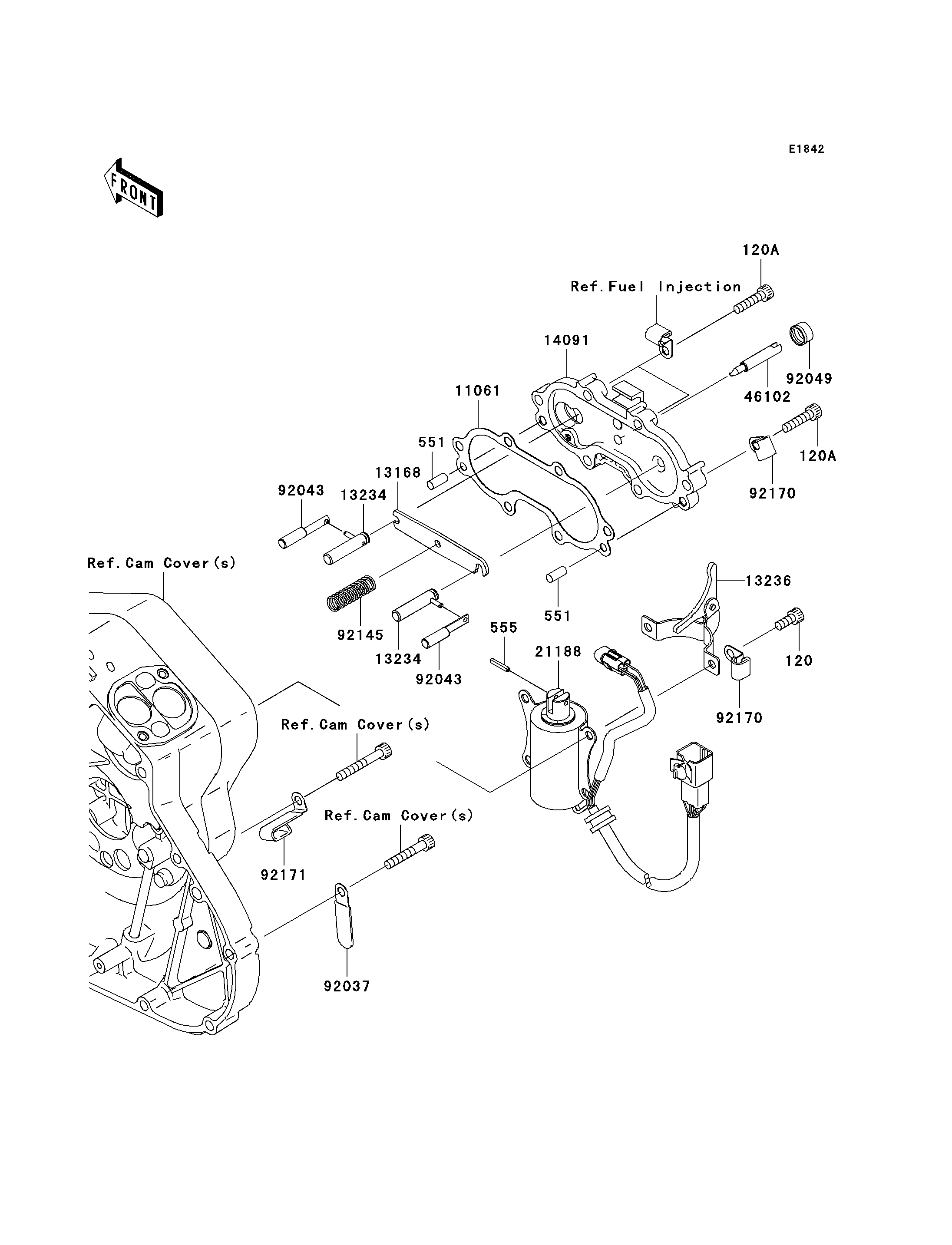

2008 Vulcan® 2000 Classic - Starter Solenoid
120
120A
120A
551
551
555
11061
13168
13234
13234
13236
14091
21188
46102
92037
92043
92043
92049
92145
92170
92170
92171
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,6X14 | 120 | 120R0614 | 4 | ||
BOLT-SOCKET,6X25 | 120A | 120R0625 | 6 | ||
PIN-DOWEL,6X14 | 551 | 551A0614 | 2 | ||
PIN-SPRING | 555 | 555B0316 | 1 | ||
GASKET | 11061 | 11061-0022 | 1 | ||
LEVER,JOINT | 13168 | 13168-0011 | 1 | ||
SHAFT-COMP | 13234 | 13234-0002 | 2 | ||
LEVER-COMP,SOLENOID | 13236 | 13236-0008 | 1 | ||
COVER | 14091 | 14091-0240 | 1 | ||
SOLENOID | 21188 | 21188-0005 | 1 | ||
ROD,PUSH | 46102 | 46102-0006 | 1 | ||
CLAMP,L=45 | 92037 | 92037-1539 | 1 | ||
PIN,DECOMP | 92043 | 92043-0015 | 2 | ||
SEAL-OIL,RV37129.5 | 92049 | 92049-016 | 1 | ||
SPRING,DECOMP RELEASE | 92145 | 92145-0037 | 1 | ||
CLAMP | 92170 | 92170-1804 | 2 | ||
CLAMP | 92171 | 92171-0322 | 1 |
BOLT-SOCKET,6X14 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-SOCKET,6X25 | |
REF # | 120A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
PIN-DOWEL,6X14 | |
REF # | 551 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN-SPRING | |
REF # | 555 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER,JOINT | |
REF # | 13168 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-COMP | |
REF # | 13234 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LEVER-COMP,SOLENOID | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOLENOID | |
REF # | 21188 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,PUSH | |
REF # | 46102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,L=45 | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,DECOMP | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,RV37129.5 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,DECOMP RELEASE | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
