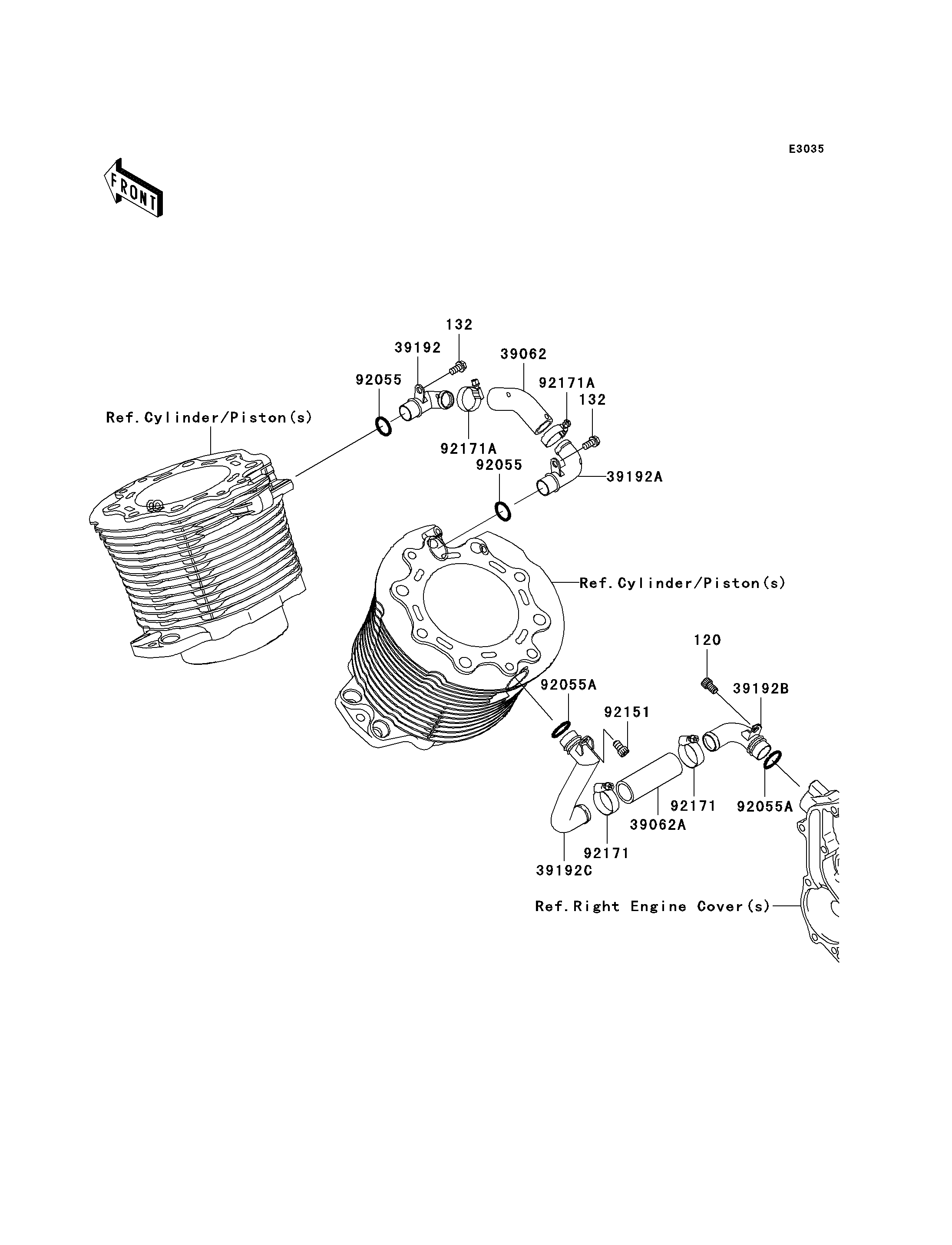

Parts Diagrams |
120
132
132
39062
39062A
39192
39192A
39192B
39192C
92055
92055
92055A
92055A
92151
92171
92171
92171A
92171A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,6X12 | 120 | 120R0612 | 1 | ||
BOLT-FLANGED-SMALL,6X12 | 132 | 132BB0612 | 2 | ||
HOSE-COOLING | 39062 | 39062-0003 | 1 | ||
HOSE-COOLING,RADIATOR-CAP | 39062A | 39062-1172 | 1 | ||
PIPE-WATER,FR CYLINDER INLET | 39192 | 39192-0003 | 1 | ||
PIPE-WATER,RR CYLINDER OUTLET | 39192A | 39192-0004 | 1 | ||
PIPE-WATER,RR CYLINDER | 39192B | 39192-0005 | 1 | ||
PIPE-WATER,RR CYLINDER INLET | 39192C | 39192-0006 | 1 | ||
RING-O,16.8X2.4 | 92055 | 92055-1258 | 2 | ||
RING-O,18.8X2.4 | 92055A | 92055-1308 | 2 | ||
BOLT,6X12 | 92151 | 92151-3724 | 1 | ||
CLAMP | 92171 | 92171-0337 | 2 | ||
CLAMP | 92171A | 92171-0338 | 2 |
BOLT-SOCKET,6X12 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X12 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOSE-COOLING | |
REF # | 39062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RADIATOR-CAP | |
REF # | 39062A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-WATER,FR CYLINDER INLET | |
REF # | 39192 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-WATER,RR CYLINDER OUTLET | |
REF # | 39192A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-WATER,RR CYLINDER | |
REF # | 39192B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-WATER,RR CYLINDER INLET | |
REF # | 39192C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,16.8X2.4 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,18.8X2.4 | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
