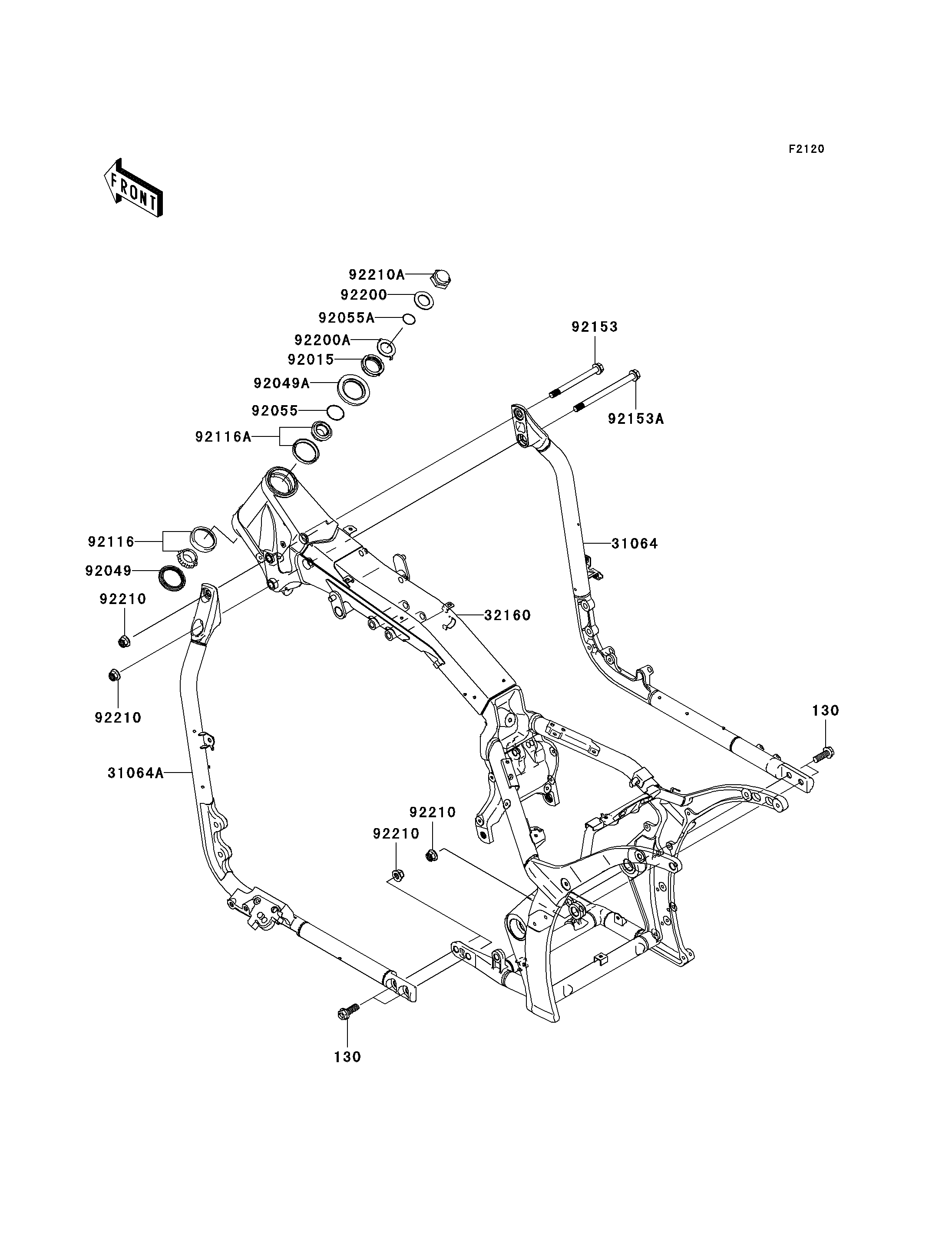

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,12X35 130 130CB1235 4
PIPE-COMP,DOWNTUBE,RH,BLACK 31064 31064-0120-18R 1
PIPE-COMP,DOWNTUBE,LH,BLACK 31064A 31064-0147-18R 1
FRAME-COMP,F.S.BLACK 32160 32160-0295-18R 1
NUT,STEERING STEM,35MM 92015 92015-1848 1
SEAL-OIL,XMHE 43 55 4J 92049 92049-1383 1
SEAL-OIL,MX043N2 92049A 92049-1483 1
RING-O,34.5X2.0 92055 92055-1452 1
RING-O,ID=24.5 92055A 92055-1459 1
BEARING-ROLLER,32907JR-2 92116 92116-1072 1
BEARING-ROLLER,32907JR-3 92116A 92116-1074 1
BOLT,FLANGED,12X132 92153 92153-0598 1
BOLT,FLANGED,12X168 92153A 92153-0599 1
WASHER,25.5X42X2.3 92200 92200-0105 1
WASHER,CLAW,25.5X40X2.3 92200A 92200-0137 1
NUT,LOCK,FLANGED,12MM 92210 92210-0110 6
NUT,CAP,25MM 92210A 92210-1166 1
