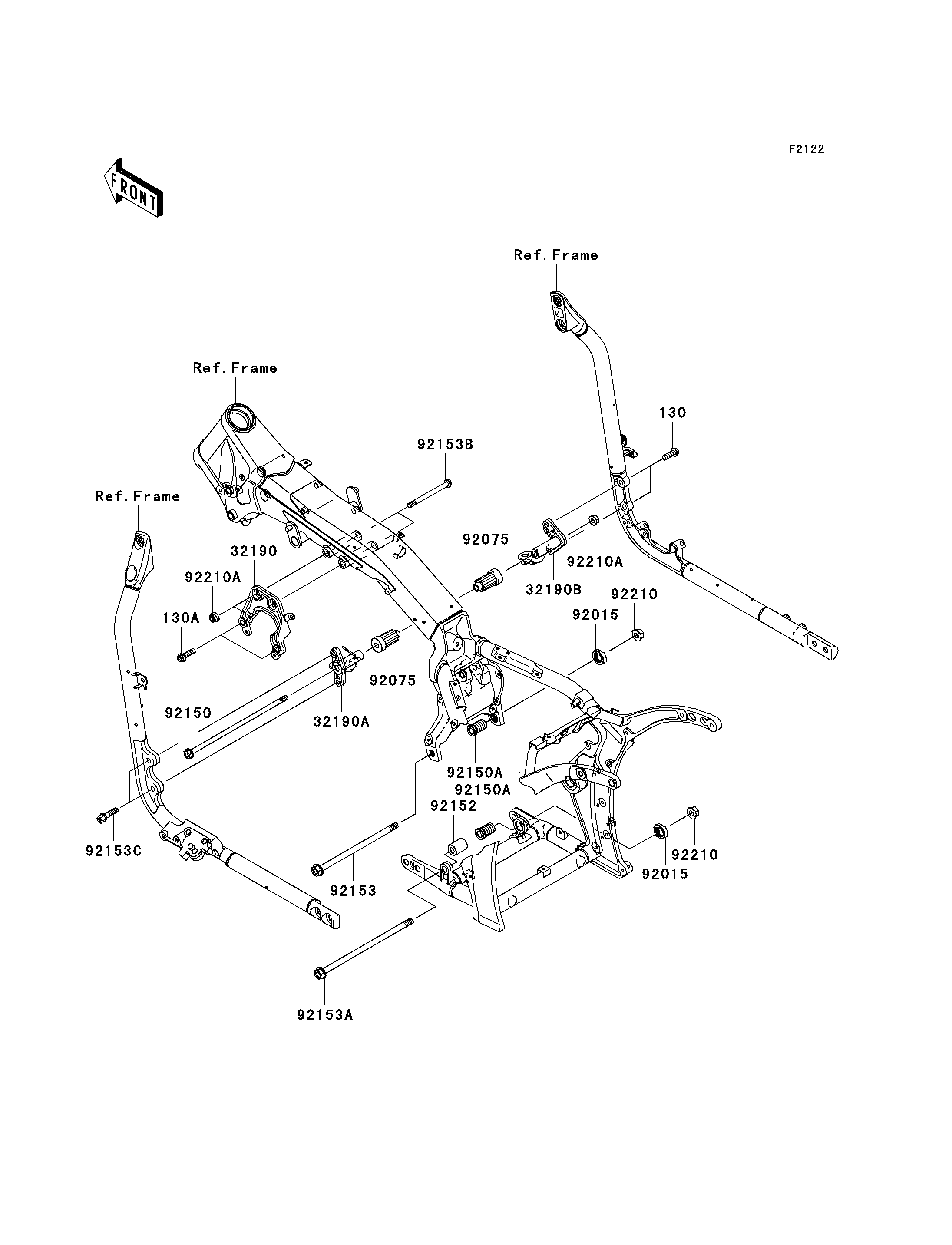

2008 Vulcan® 2000 Classic - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
130
130A
32190
32190A
32190B
92015
92015
92075
92075
92150
92150A
92150A
92152
92153
92153A
92153B
92153C
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X30 130 130BB1030 2
BOLT-FLANGED,10X35 130A 130BB1035 2
BRACKET-ENGINE,UPP 32190 32190-0054 1
BRACKET-ENGINE,FR,LH,F.S.BLACK 32190A 32190-0354-18R 1
BRACKET-ENGINE,FR,RH,F.S.BLACK 32190B 32190-0355-18R 1
NUT,ENGINE MOUNT,22MM 92015 92015-1846 2
DAMPER,ENGINE MOUNT,MAIN 92075 92075-1739 2
BOLT,FLANGED,10X295 92150 92150-1223 1
BOLT,ENGINE MOUNT,22X38 92150A 92150-1471 2
COLLAR,12.5X26X35.5 92152 92152-0056 1
BOLT,FLANGED,12X237 92153 92153-0390 1
BOLT,FLANGED,12X275 92153A 92153-0391 1
BOLT,FLANGED,10X117 92153B 92153-0664 2
BOLT,10X40 92153C 92153-0891 2
NUT,LOCK,FLANGED,12MM 92210 92210-0110 2
NUT,LOCK,FLANGED,10MM 92210A 92210-1081 3
