11053
14091
14091A
32097
32098
39156
39156A
92015
92015
92015
92015
92015A
92075
92153
92153
92153
92153
92153
92153
92161
92172
92172
92172

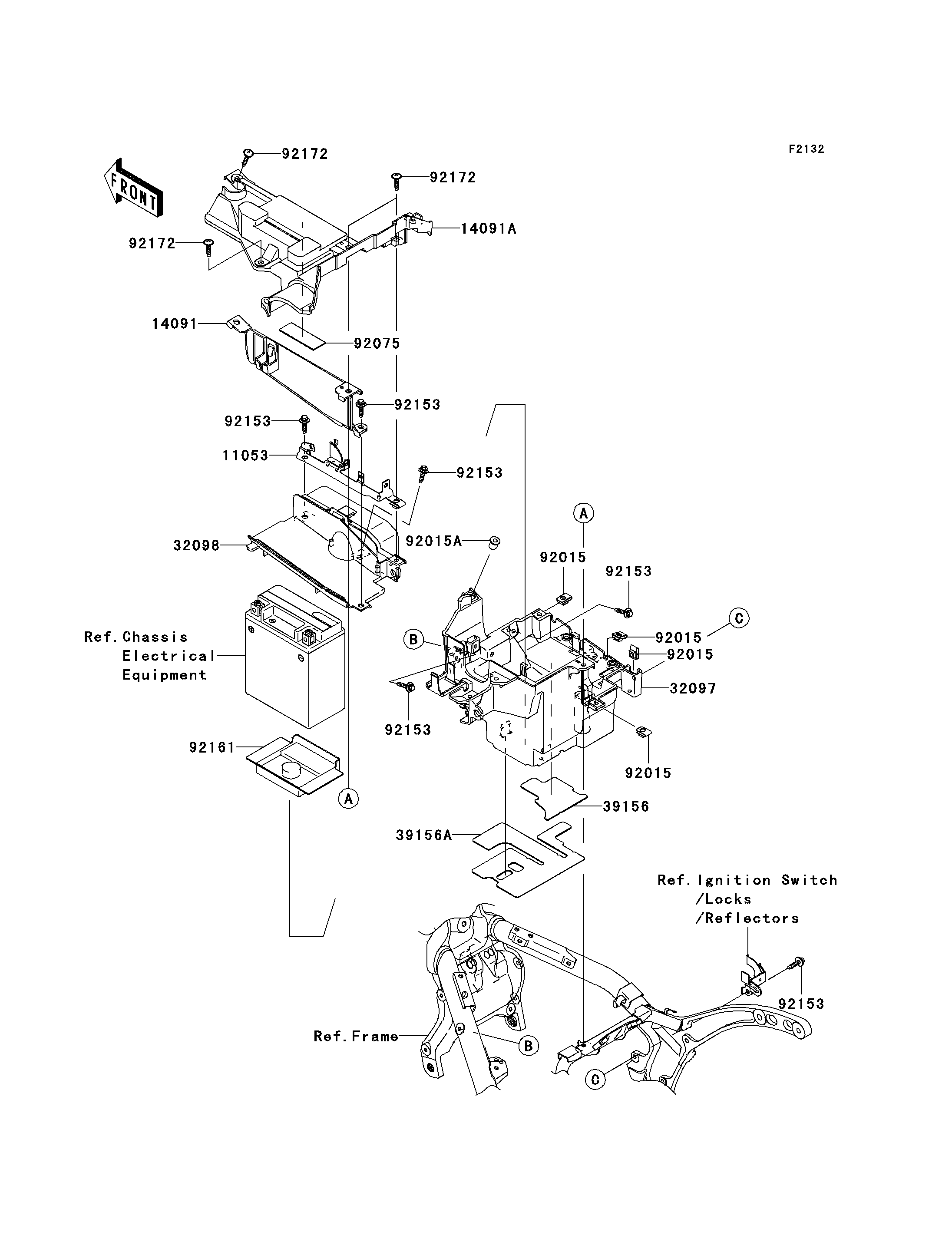

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,COUPLER 11053 11053-0905 1
COVER,TOOL CASE 14091 14091-0172 1
COVER,BATTERY 14091A 14091-0290 1
CASE-BATTERY 32097 32097-0005 1
CASE-TOOL 32098 32098-0007 1
PAD,BATTERY CASE 39156 39156-0047 1
PAD,BATTERY CASE 39156A 39156-0055 1
NUT,6MM 92015 92015-1602 4
NUT 92015A 92015-1700 1
DAMPER,BATTERY BAND 92075 92075-1903 1
BOLT,FLANGED,6X26.5 92153 92153-0654 6
DAMPER,BATTERY 92161 92161-0114 1
SCREW,6X26 92172 92172-0137 4
