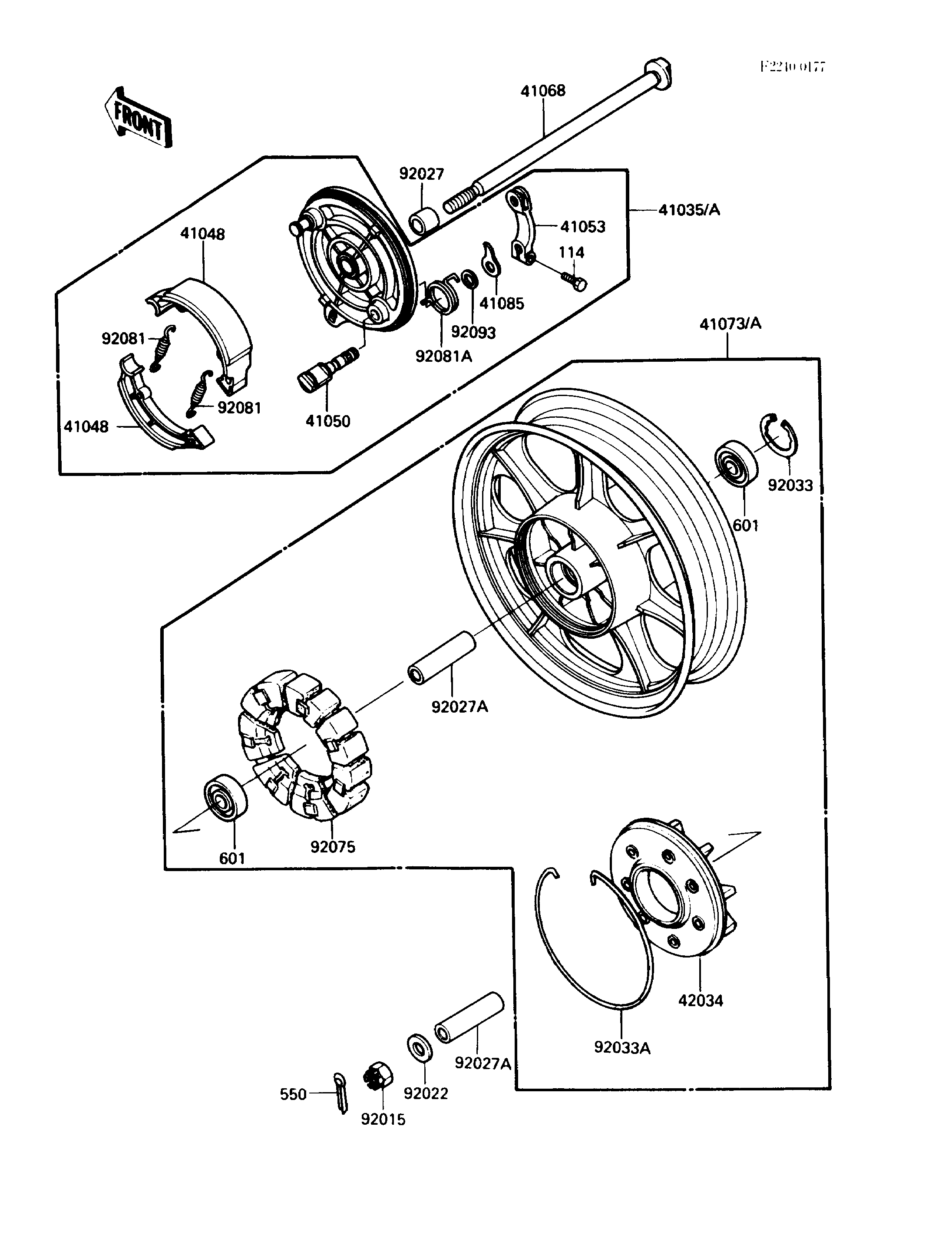

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PANEL-ASSY-BRAKE,RR | 41035 | 41035-1185 | 1 | ||
SHOE-BRAKE | 41048 | 41048-1059 | 2 | ||
CAM-BRAKE | 41050 | 41050-1059 | 1 | ||
LEVER-BRAKE CAM | 41053 | 41053-1063 | 1 | ||
AXLE,RR | 41068 | 41068-1191 | 1 | ||
WHEEL-ASSY,RR,F.BLACK | 41073A | 41073-1307-21 | 1 | ||
INDICATOR | 41085 | 41085-1054 | 1 | ||
COUPLING,RR HUB | 42034 | 42034-1029 | 1 | ||
NUT,16MM | 92015 | 92015-055 | 1 | ||
WASHER,17.3X32X3.2 | 92022 | 42046-009 | 1 | ||
COLLAR | 92027 | 92027-1486 | 1 | ||
COLLAR,17.2X25X74 | 92027A | 92027-1867 | 2 | ||
RING-SNAP,47MM | 92033 | 92033-1042 | 1 | ||
RING-SNAP,194MM | 92033A | 92033-1075 | 1 | ||
DAMPER,RR HUB SHOCK | 92075 | 92075-1372 | 1 | ||
SPRING,BRAKE SHOE | 92081 | 41049-007 | 2 | ||
SPRING,BRAKE CAM LEVER RETURN | 92081A | 92081-1816 | 1 | ||
SEAL,BRAKE CAM | 92093 | 41051-003 | 1 | ||
BOLT-SMALL,8X28 | 114 | 114G0828 | 1 | ||
PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
BEARING-BALL,#6303ZZC3 | 601 | 601B6303ZZ | 2 |
PANEL-ASSY-BRAKE,RR | |
REF # | 41035 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHOE-BRAKE | |
REF # | 41048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAM-BRAKE | |
REF # | 41050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-BRAKE CAM | |
REF # | 41053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
AXLE,RR | |
REF # | 41068 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WHEEL-ASSY,RR,F.BLACK | |
REF # | 41073A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
INDICATOR | |
REF # | 41085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COUPLING,RR HUB | |
REF # | 42034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,16MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,17.3X32X3.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,17.2X25X74 | |
REF # | 92027A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,47MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,194MM | |
REF # | 92033A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,RR HUB SHOCK | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,BRAKE SHOE | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,BRAKE CAM LEVER RETURN | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,BRAKE CAM | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-SMALL,8X28 | |
REF # | 114 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-COTTER,4.0X35 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6303ZZC3 | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
