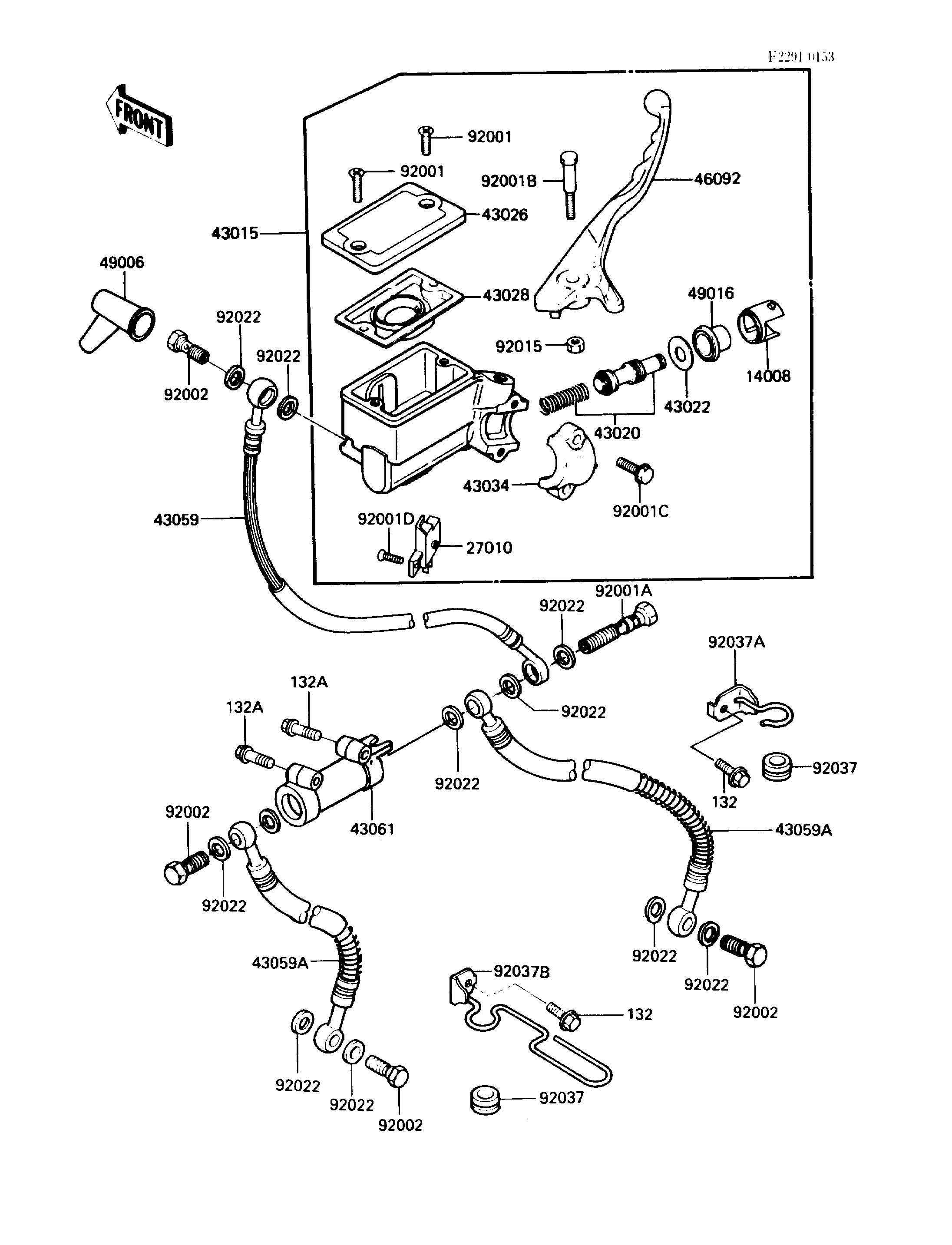

1986 Vulcan 750 - Front Master Cylinder
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LINER,PISTON | 14008 | 14008-1035 | 1 | ||
| SWITCH,BRAKE | 27010 | 27010-1056 | 1 | ||
| CYLINDER-ASSY-MASTER,FR | 43015 | 43015-1313 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1079 | 1 | ||
| STOPPER-BRAKE,PISTON | 43022 | 43022-1009 | 1 | ||
| CAP-BRAKE | 43026 | 43026-1056 | 1 | ||
| DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1029 | 1 | ||
| HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1001 | 1 | ||
| HOSE-BRAKE | 43059 | 43059-1293 | 1 | ||
| HOSE-BRAKE | 43059A | 43059-1310 | 2 | ||
| JOINT-BRAKE | 43061 | 43061-1002 | 1 | ||
| LEVER-GRIP,FRONT BRAKE | 46092 | 46092-1150 | 1 | ||
| BOOT,DUST | 49006 | 49006-1040 | 1 | ||
| COVER-SEAL,BRAKE PISTON | 49016 | 49016-1041 | 1 | ||
| SCREW-CSK-CROS,5X12,BLACK | 92001 | 92001-1055 | 2 | ||
| BOLT,BANJO,10X37 | 92001A | 92001-1203 | 1 | ||
| BOLT,6X37.3,BLACK | 92001B | 92001-1512 | 1 | ||
| BOLT,6X25,W/WASHER,BLACK | 92001C | 92001-1513 | 2 | ||
| SCREW-CSK-CROS,4X10,BLACK | 92001D | 92001-1532 | 1 | ||
| BOLT,OIL,L=23 | 92002 | 92002-1888 | 4 | ||
| NUT,LOCK,6MM,BLACK | 92015 | 92015-1191 | 1 | ||
| WASHER,10.5X15X1.5 | 92022 | 43067-001 | 11 | ||
| GROMMET,HOSE CLAMP | 92037 | 43064-006 | 2 | ||
| CLAMP,BRAKE HOSE | 92037A | 92037-1218 | 1 | ||
| CLAMP,BRAKE HOSE,LH | 92037B | 92037-1367 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132E0612 | 2 | ||
| BOLT-FLANGED-SMALL | 132A | 132G0635 | 2 |
