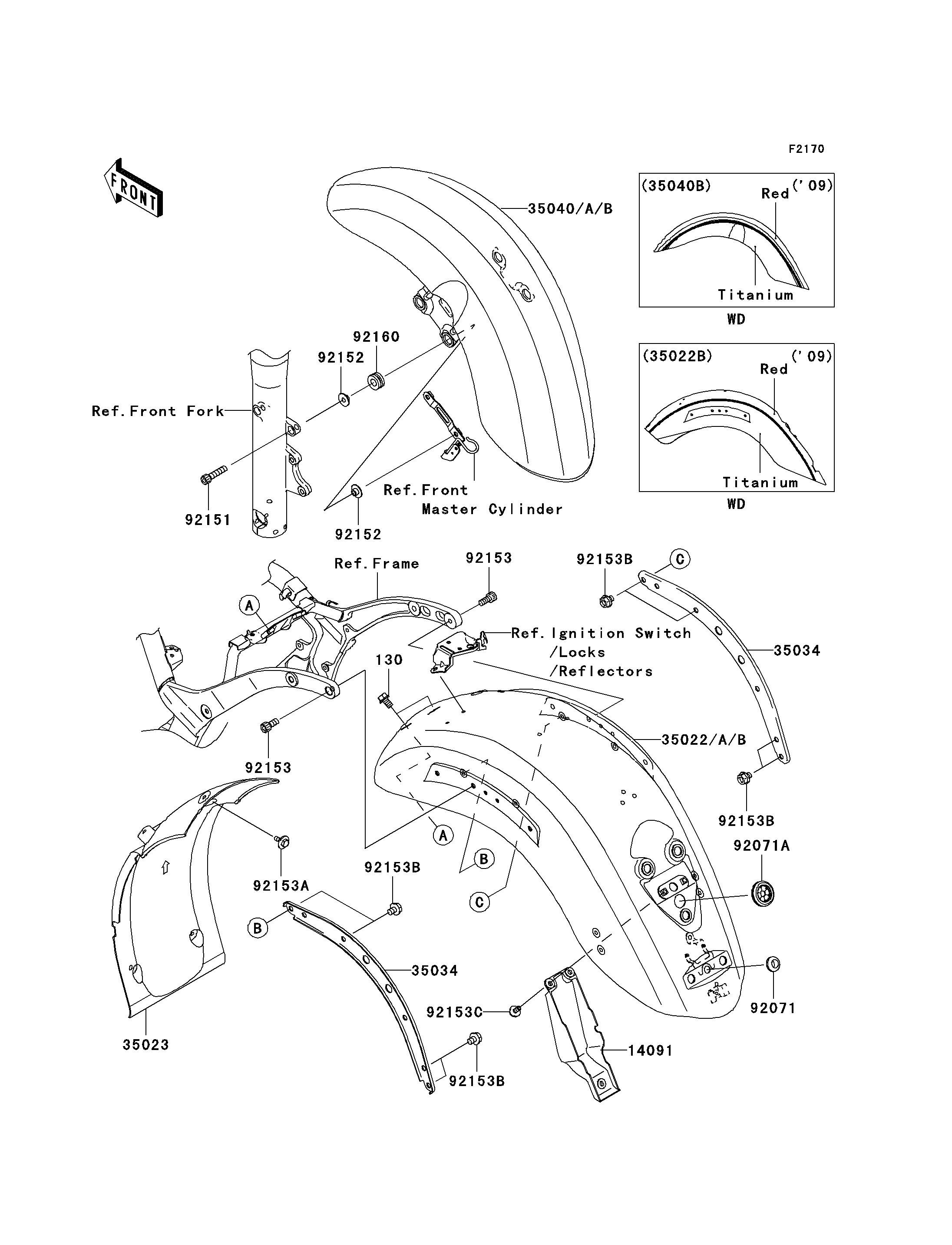

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,REAR FENDER | 14091 | 14091-0070 | 1 | ||
FENDER-COMP-REAR,M.D,BLACK | 35022 | 35022-0021-17K | 1 | ||
FENDER-COMP-REAR,A.SILVER | 35022A | 35022-0021-17M | 1 | ||
FENDER-REAR,INNER | 35023 | 35023-0033 | 1 | ||
REINFORCE,RR FENDER | 35034 | 35034-0049 | 2 | ||
FENDER-COMP-FRONT,M.D,BLACK | 35040 | 35040-0008-17K | 1 | ||
FENDER-COMP-FRONT,A.SILVER | 35040A | 35040-0008-17M | 1 | ||
GROMMET,10MM | 92071 | 92071-019 | 1 | ||
GROMMET | 92071A | 92071-1265 | 1 | ||
BOLT,SOCKET,8X35 | 92151 | 92151-1535 | 4 | ||
COLLAR | 92152 | 92152-0249 | 8 | ||
BOLT,SOCKET,8X18 | 92153 | 92153-0672 | 2 | ||
BOLT,6X16 | 92153A | 92153-0698 | 4 | ||
BOLT,FLANGED,8X10 | 92153B | 92153-0724 | 8 | ||
BOLT-FLANGED,8X16 | 130 | 130BB0816 | 2 | ||
BOLT,SOCKET,6X14 | 92153C | 92153-0729 | 3 | ||
DAMPER | 92160 | 92160-1007 | 4 |
