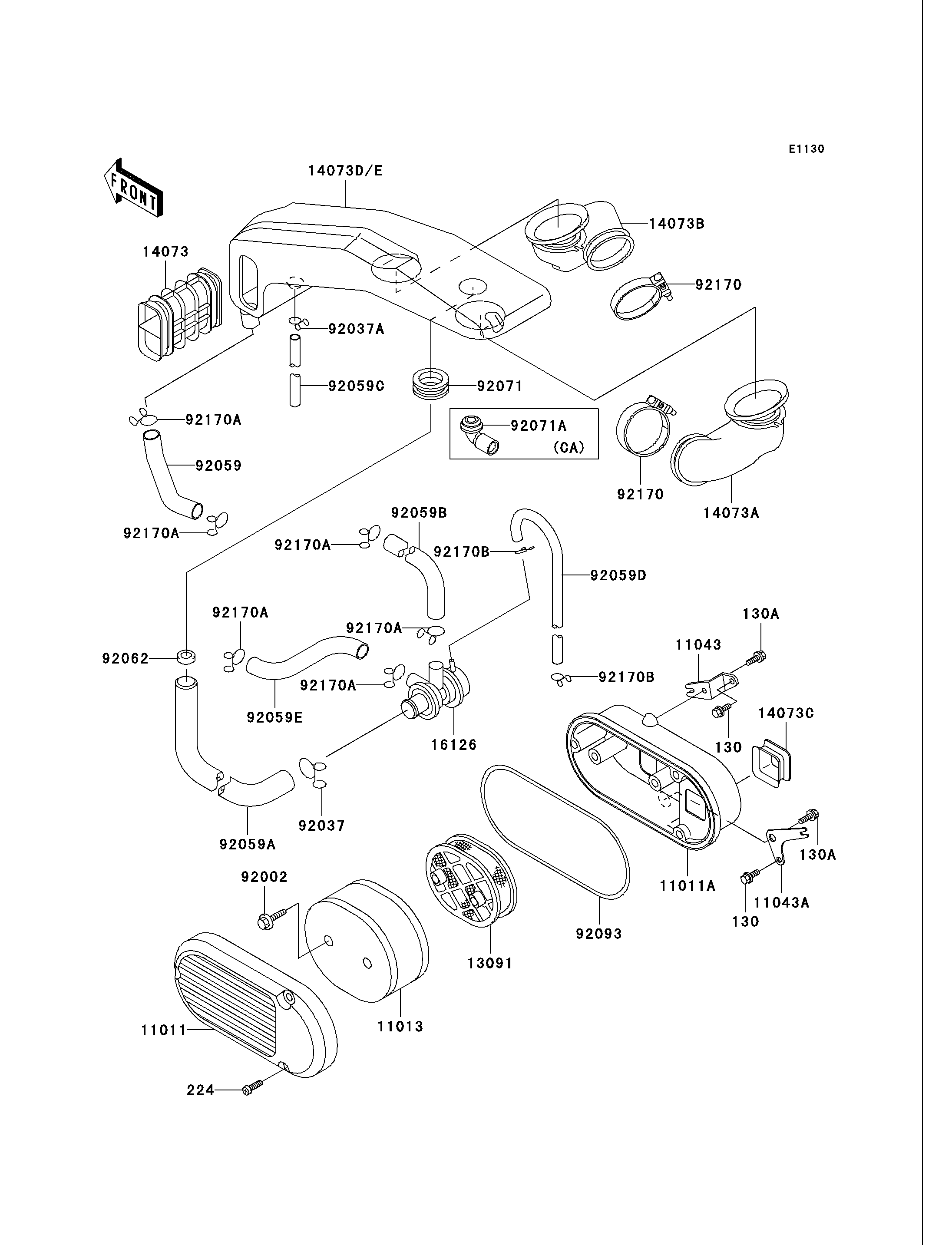

Parts Diagrams |
130
130
130A
130A
224
11011
11011A
11013
11043
11043A
13091
14073
14073A
14073B
14073C
16126
92002
92037
92037A
92059
92059A
92059B
92059C
92059D
92059E
92062
92071
92093
92170
92170
92170A
92170A
92170A
92170A
92170A
92170A
92170B
92170B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X10,BLACK | 130 | 130C0610 | 4 | ||
BOLT-FLANGED,6X12 | 130A | 130C0612 | 4 | ||
SCREW-PAN-WP-CROS | 224 | 224C0630 | 6 | ||
CASE-AIR FILTER,OUTSIDE | 11011 | 11011-1181 | 2 | ||
CASE-AIR FILTER,INSIDE | 11011A | 11011-1225 | 2 | ||
ELEMENT-AIR FILTER | 11013 | 11013-1122 | 2 | ||
BRACKET,AIR FILTER CASE | 11043 | 11043-1181 | 2 | ||
BRACKET,AIR FILTER CASE | 11043A | 11043-1975 | 2 | ||
HOLDER,ELEMENT | 13091 | 13091-1345 | 2 | ||
DUCT,AIR FILTER | 14073 | 14073-1197 | 2 | ||
DUCT,FR,CARBURATOR | 14073A | 14073-1199 | 1 | ||
DUCT,RR,CARBURATOR | 14073B | 14073-1200 | 1 | ||
DUCT,INLET | 14073C | 14073-1209 | 2 | ||
VALVE,AIR SWITCH | 16126 | 16126-1139 | 1 | ||
BOLT,6X25 | 92002 | 92002-1137 | 4 | ||
CLAMP,TUBE | 92037 | 92037-1076 | 1 | ||
CLAMP,TUBE | 92037A | 92037-147 | 1 | ||
TUBE,15X20X116 | 92059 | 92059-1512 | 1 | ||
TUBE,19X25X600 | 92059A | 92059-1537 | 1 | ||
TUBE | 92059B | 92059-1587 | 1 | ||
TUBE | 92059C | 92059-1603 | 1 | ||
TUBE,4X9X330 | 92059D | 92059-1617 | 1 | ||
TUBE | 92059E | 92059-1618 | 1 | ||
NOZZLE,7X20.3X10 | 92062 | 92062-1061 | 1 | ||
GROMMET,AIR FILTER | 92071 | 92071-1013 | 1 | ||
SEAL,AIR FILTER | 92093 | 92093-1177 | 2 | ||
CLAMP | 92170 | 92170-1444 | 2 | ||
CLAMP,TUBE | 92170A | 92170-1445 | 6 | ||
CLAMP | 92170B | 92170-1450 | 2 | ||
DUCT,MAIN | 14073D | 14073-1281 | 1 | US | |
DUCT,MAIN | 14073E | 14073-1282 | 1 | CA | |
GROMMET,AIR FILTER | 92071A | 92071-1114 | 1 | CA |
