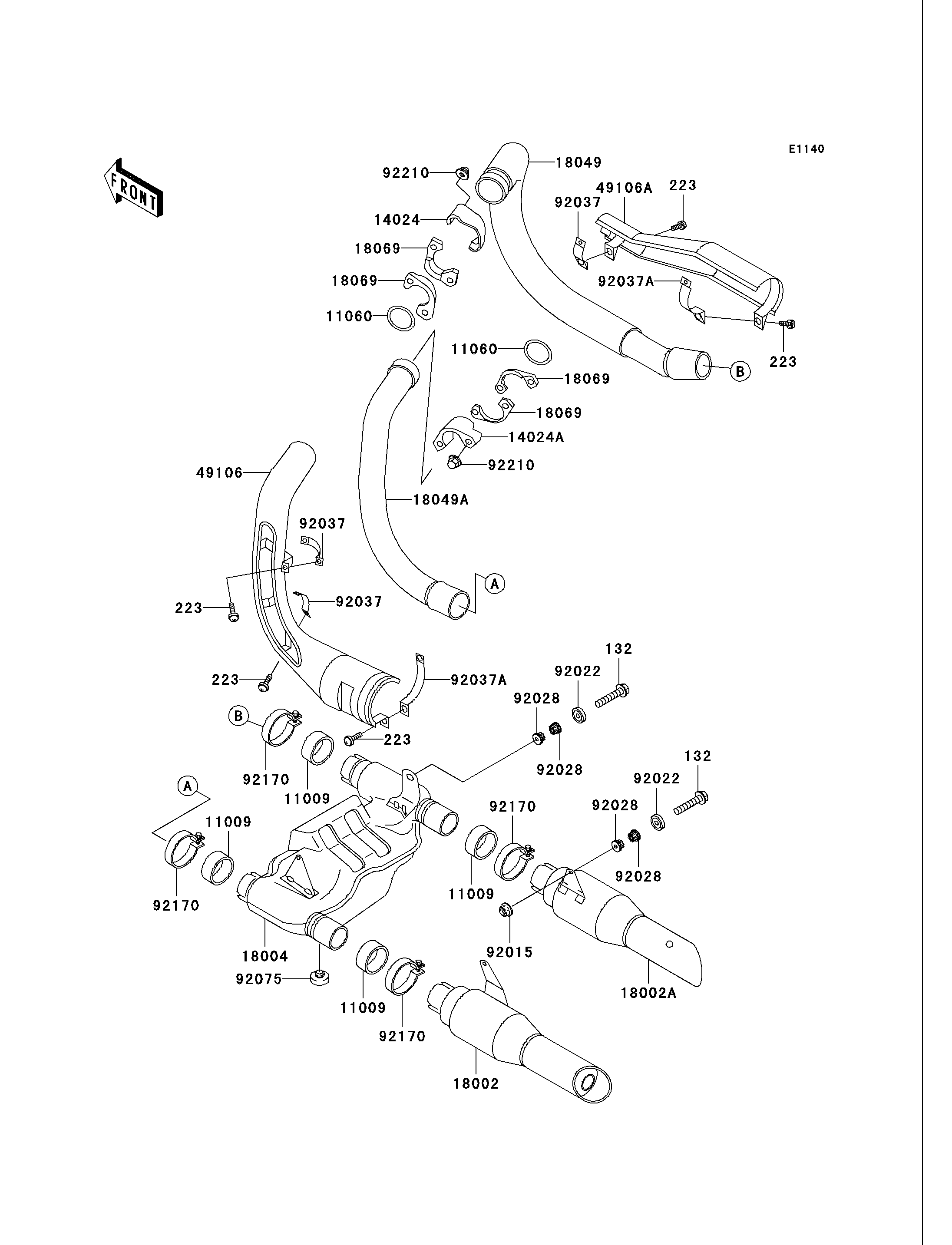

Parts Diagrams |
132
132
223
223
223
223
223
11009
11009
11009
11009
11060
11060
14024
14024A
18002
18002A
18004
18049
18049A
18069
18069
18069
18069
49106
49106A
92015
92022
92022
92028
92028
92028
92028
92037
92037
92037
92037A
92037A
92075
92170
92170
92170
92170
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132E0840 | 4 | ||
SCREW-PAN-WS-CROS | 223 | 223X0620 | 5 | ||
GASKET,EXHAUST PIPE CONNECTING | 11009 | 11009-1666 | 4 | ||
GASKET,EXHAUST PIPE | 11060 | 11060-1119 | 2 | ||
COVER,FR | 14024 | 14024-1091 | 1 | ||
COVER,RR | 14024A | 14024-1092 | 1 | ||
BODY-COMP-MUFFLER,LH | 18002 | 18002-1701 | 1 | ||
BODY-COMP-MUFFLER,RH | 18002A | 18002-1702 | 1 | ||
CHAMBER-PREMUFFLER | 18004 | 18004-1055 | 1 | ||
PIPE-EXHAUST,FR | 18049 | 18049-1373 | 1 | ||
PIPE-EXHAUST,RR | 18049A | 18049-1374 | 1 | ||
HOLDER-EXHAUST PIPE | 18069 | 18069-1061 | 4 | ||
COVER-MUFFLER,LH | 49106 | 49106-1053 | 1 | ||
COVER-MUFFLER,RH | 49106A | 49106-1054 | 1 | ||
NUT,FLANGED,8MM | 92015 | 92015-1933 | 2 | ||
WASHER,CAP TYPE | 92022 | 92022-1638 | 4 | ||
BUSHING,MUFFLER | 92028 | 92028-1746 | 8 | ||
CLAMP,EXHAUST PIPE COVER | 92037 | 92037-1613 | 3 | ||
CLAMP,MUFFLER COVER | 92037A | 92037-1615 | 2 | ||
DAMPER | 92075 | 92075-005 | 1 | ||
CLAMP,52MM | 92170 | 92170-1446 | 4 | ||
NUT,CAP,8MM | 92210 | 92210-1132 | 4 |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-PAN-WS-CROS | |
REF # | 223 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST PIPE CONNECTING | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST PIPE | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER,FR | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,RR | |
REF # | 14024A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY-COMP-MUFFLER,LH | |
REF # | 18002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY-COMP-MUFFLER,RH | |
REF # | 18002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CHAMBER-PREMUFFLER | |
REF # | 18004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-EXHAUST,FR | |
REF # | 18049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-EXHAUST,RR | |
REF # | 18049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-EXHAUST PIPE | |
REF # | 18069 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COVER-MUFFLER,LH | |
REF # | 49106 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-MUFFLER,RH | |
REF # | 49106A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,CAP TYPE | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BUSHING,MUFFLER | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
CLAMP,EXHAUST PIPE COVER | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP,MUFFLER COVER | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,52MM | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,CAP,8MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
