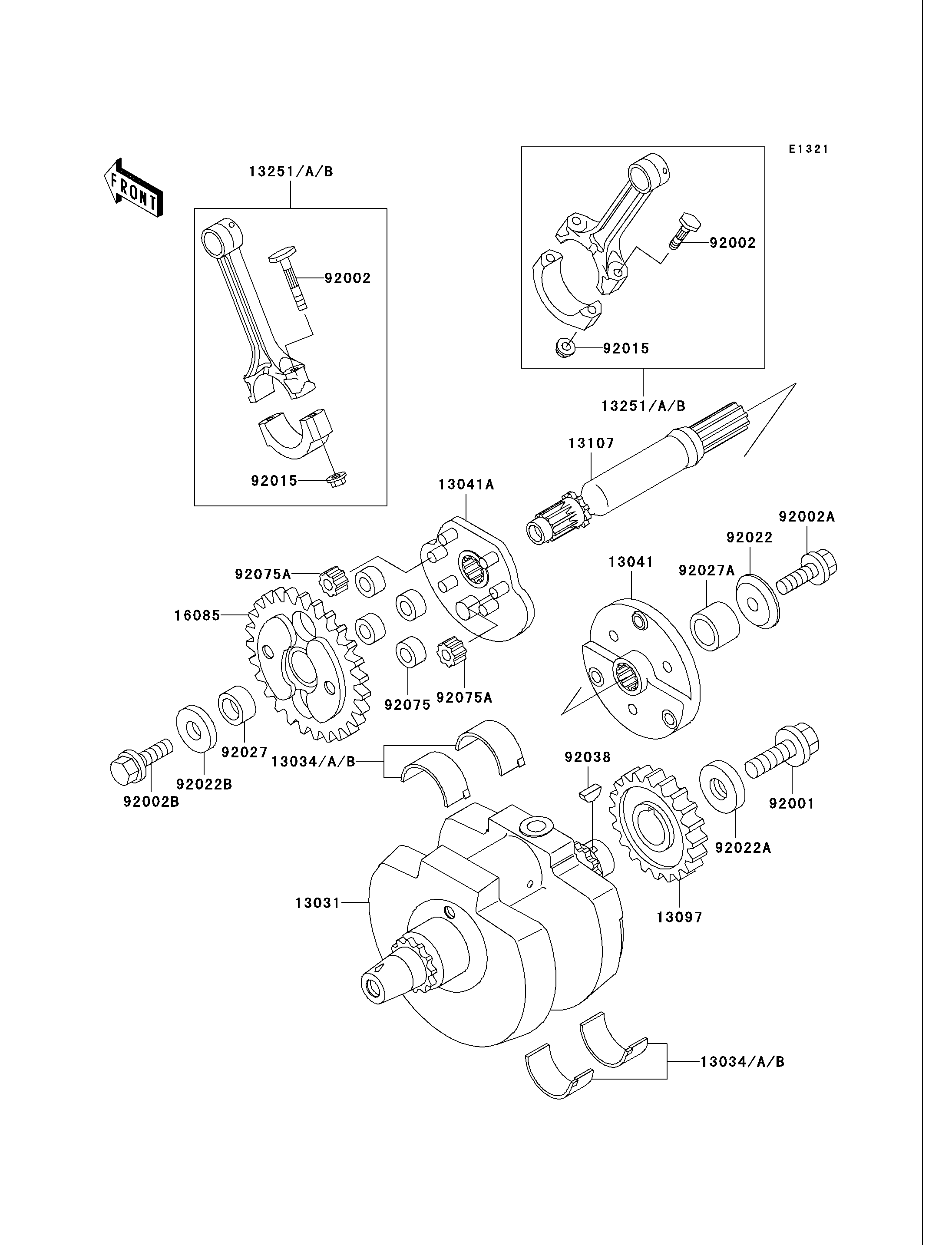

2005 Vulcan 750 - Crankshaft

DOWNLOAD PDF
SELECT A NEW PART
13031
13034
13034
13034A
13034A
13034B
13034B
13041
13041A
13097
13107
13251
13251
13251A
13251A
13251B
13251B
16085
92001
92002
92002
92002A
92002B
92015
92015
92022
92022A
92022B
92027
92027A
92038
92075
92075A
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKSHAFT-COMP 13031 13031-1202 1
METAL,CONNECTING ROD,BLUE 13034 13034-1057 AR
METAL,CONNECTING ROD,BLACK 13034A 13034-1058 AR
METAL,CONNECTING ROD,BROWN 13034B 13034-1059 AR
BALANCER,RH 13041 13041-1065 1
BALANCER,LH 13041A 13041-1068 1
GEAR-PRIMARY SPUR,35T 13097 13097-1129 1
SHAFT,BALANCER 13107 13107-1146 1
ROD-ASSY-CONNECTING,G 13251 13251-1055-GG 2
ROD-ASSY-CONNECTING,H 13251A 13251-1055-HH 2
ROD-ASSY-CONNECTING,I 13251B 13251-1055-II 2
GEAR,BALANCER,42T 16085 16085-1148 1
BOLT,FLANGED,12X40 92001 92001-1146 1
BOLT,CONNECTING ROD 92002 92002-1405 4
BOLT,10X25 92002A 92002-1635 1
BOLT,10X25 92002B 92002-1636 1
NUT,CONNECTING ROD 92015 92015-1481 4
WASHER 92022 92022-1631 1
WASHER,12X32X6 92022A 92022-1639 1
WASHER,10X32X4.5 92022B 92022-1641 1
COLLAR,16X24X8.5 92027 92027-1859 1
COLLAR,20X28X19.5 92027A 92027-1860 1
KEY 92038 92038-1059 1
DAMPER 92075 92075-1747 4
DAMPER 92075A 92075-1748 2
