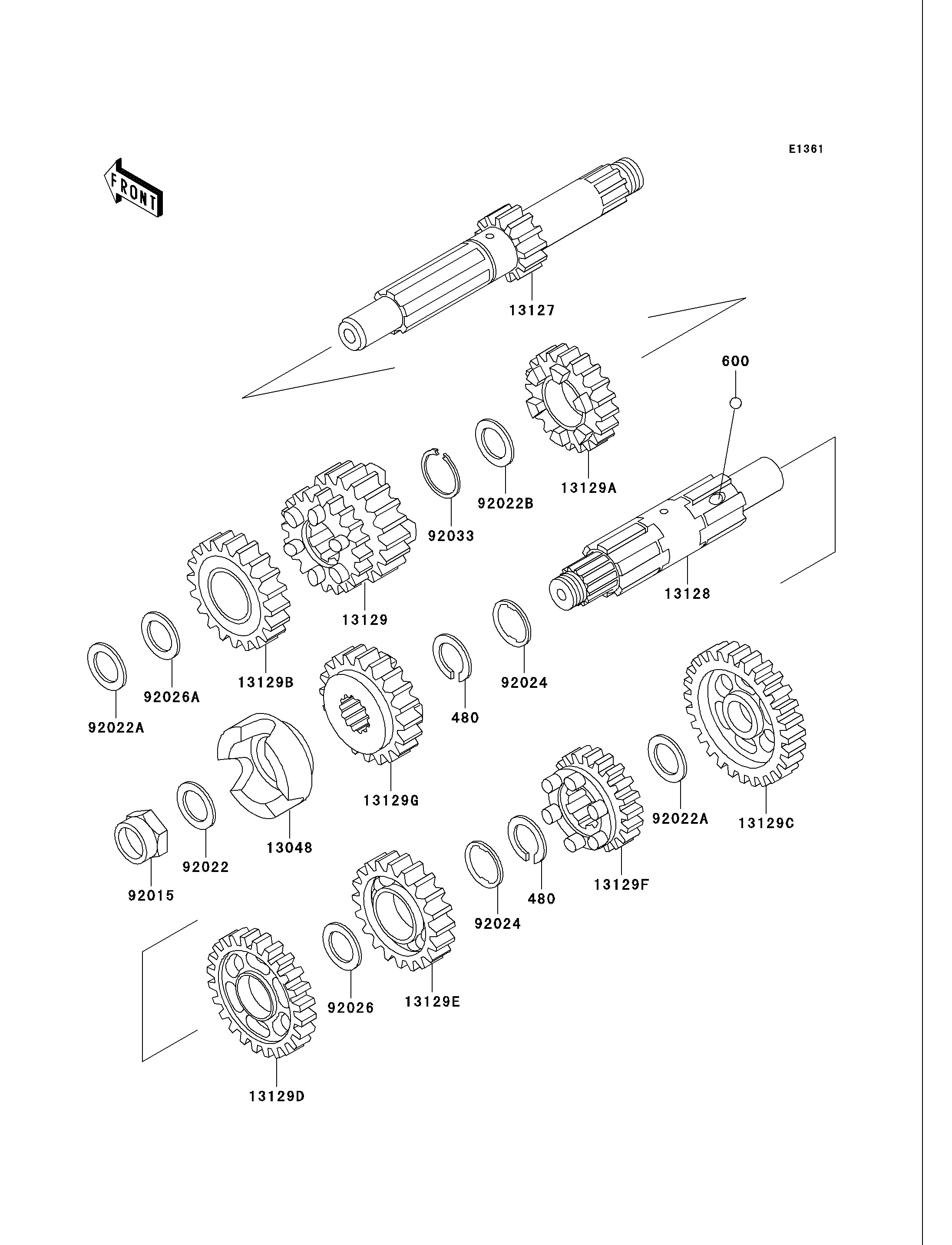

2005 Vulcan 750 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
480
480
600
13048
13127
13128
13129
13129A
13129B
13129C
13129D
13129E
13129F
13129G
92015
92022
92022A
92022A
92022B
92024
92024
92026
92026A
92033
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,30MM 480 480J3000 2
BALL-STEEL,5/32" 600 600A0500 3
CAM-DAMPER,OUTPUT SHAFT 13048 13048-1014 1
SHAFT-TRANSMISSION INPUT 13127 13127-1240 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1114 1
GEAR,INPUT 2ND&3RD,20T&26T 13129 13129-1630 1
GEAR,INPUT 4TH,26T 13129A 13129-1631 1
GEAR,INPUT 5TH,28T 13129B 13129-1632 1
GEAR,OUTPUT LOW,36T 13129C 13129-1633 1
GEAR,OUTPUT 2ND,32T 13129D 13129-1634 1
GEAR,OUTPUT 3RD,32T 13129E 13129-1635 1
GEAR,OUTPUT 4TH,26T 13129F 13129-1636 1
GEAR,OUTPUT 5TH,24T 13129G 13129-1637 1
NUT,LOCK,14MM 92015 92015-1067 1
WASHER,14.1X31X5 92022 92022-1115 1
WASHER,20.5X30X1,STEEL 92022A 92022-112 2
WASHER,25.3X30X1 92022B 92022-161 1
WASHER,TOOTHED,30.5X38X1 92024 92024-069 2
SPACER,30X38X1.0 92026 92026-079 1
SPACER,20.5X30X0.5 92026A 92026-1535 1
RING-SNAP,24MM 92033 92033-026 1
