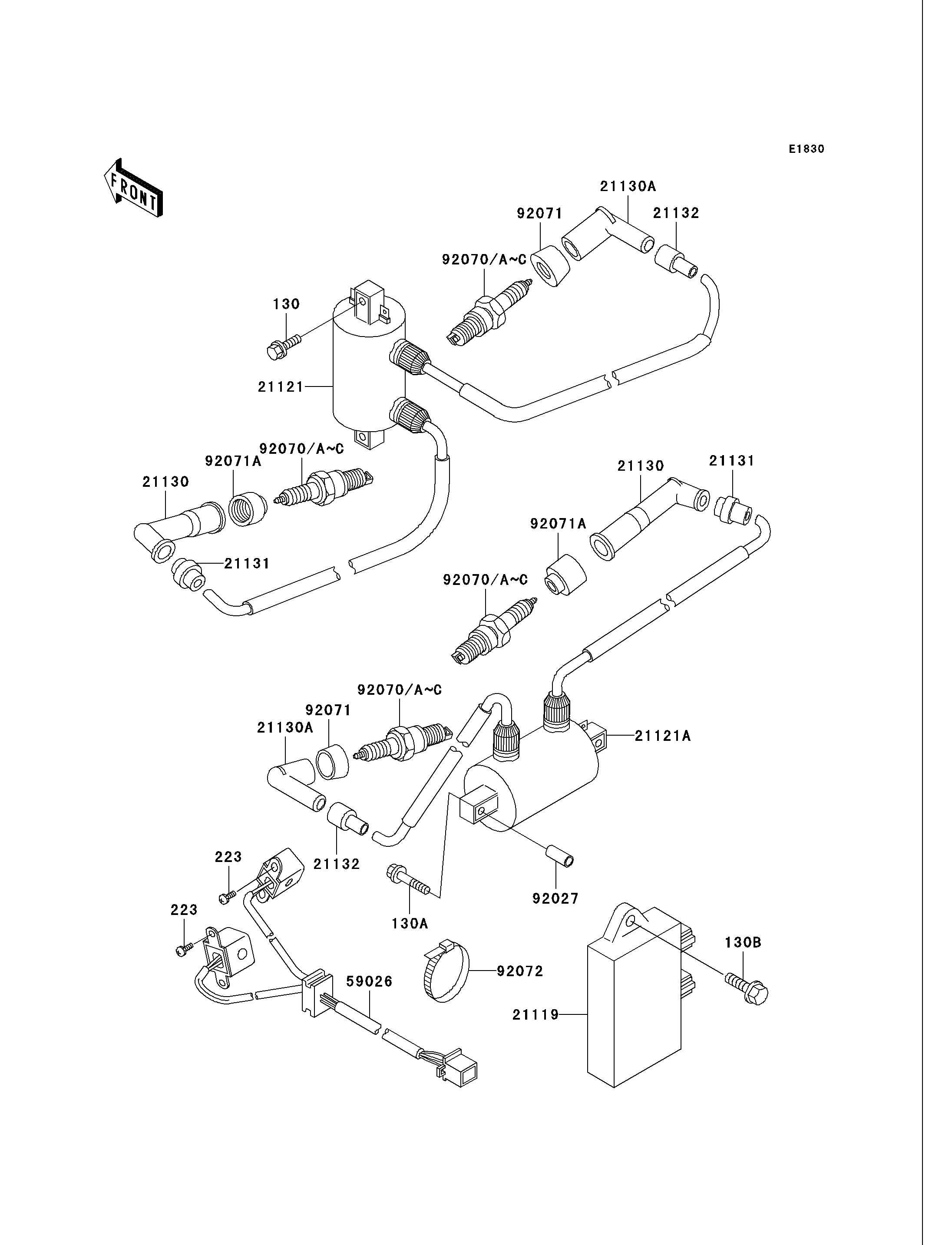

2005 Vulcan 750 - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
223
223
21119
21121
21121A
21130
21130
21130A
21130A
21131
21131
21132
21132
59026
92027
92070
92070
92070
92070
92070A
92070A
92070A
92070A
92070B
92070B
92070B
92070B
92070C
92070C
92070C
92070C
92071
92071
92071A
92071A
92072
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130D0620 2
BOLT-FLANGED 130A 130D0640 2
BOLT-FLANGED,6X14 130B 130G0614 2
SCREW-PAN-WS-CROS 223 223B0512 4
IGNITER 21119 21119-1187 1
COIL-IGNITION,FR 21121 21121-1124 1
COIL-IGNITION,RR 21121A 21121-1125 1
CAP-SPARK PLUG 21130 21130-1002 2
CAP-SPARK PLUG 21130A 21130-1003 2
GROMMET,HIGH TENSION 21131 21131-005 2
GROMMET,HIGH TENSION 21132 21132-005 2
COIL-PULSING 59026 59026-1062 1
COLLAR,6.8X10X20 92027 92027-1856 2
PLUG-SPARK,DP8EA-9(NGK) 92070 92070-1066 4 (OPTION)
PLUG-SPARK,X24EP-U9(ND) 92070A 4 (OPTION)
PLUG-SPARK,X22EP-U9(ND) 92070B 4 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,DP7EA9(NGK) 92070C 92070-1124 4
GROMMET,SPARK PLUG CAP 92071 92071-1015 2
GROMMET,PLUG CAP 92071A 92071-1124 2
BAND,LEAD WIRE 92072 92072-1181 1
