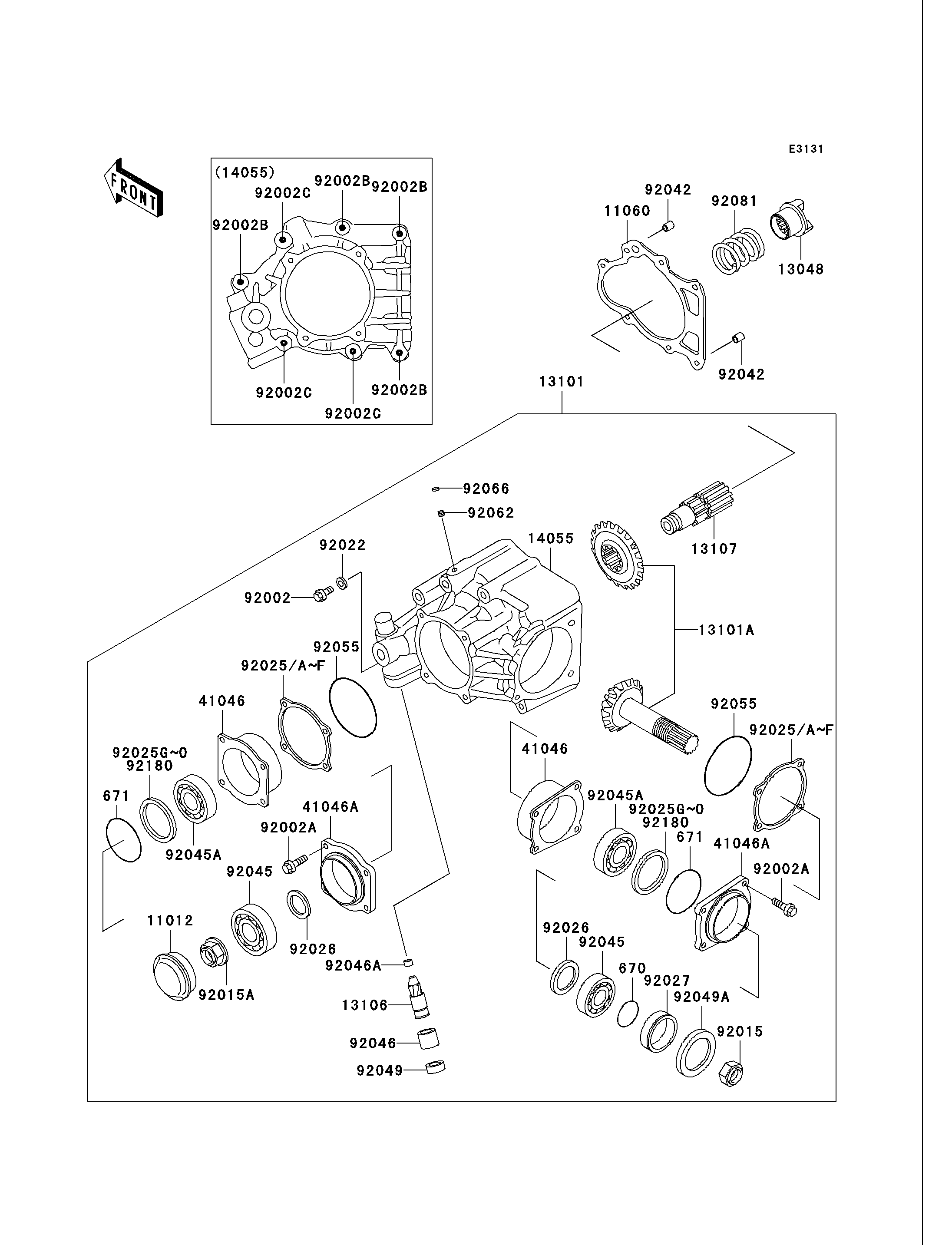

2005 Vulcan 750 - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11060
11060
13048
13048
13101
13101
13101A
13101A
13106
13106
13107
13107
14055
14055
41046
41046
41046
41046
41046A
41046A
41046A
41046A
92002
92002
92002A
92002A
92002A
92002A
92002B
92002B
92002B
92002B
92002B
92002B
92002B
92002B
92002C
92002C
92002C
92002C
92002C
92002C
92015
92015
92015A
92015A
92022
92022
92025
92025
92025
92025
92025A
92025A
92025A
92025A
92025B
92025B
92025B
92025B
92025C
92025C
92025C
92025C
92025D
92025D
92025D
92025D
92025E
92025E
92025E
92025E
92025F
92025F
92025F
92025F
92025G
92025G
92025G
92025G
92025H
92025H
92025H
92025H
92025I
92025I
92025I
92025I
92025J
92025J
92025J
92025J
92025K
92025K
92025K
92025K
92025L
92025L
92025L
92025L
92025M
92025M
92025M
92025M
92025N
92025N
92025N
92025N
92025O
92025O
92025O
92025O
92026
92026
92026
92026
92027
92027
92042
92042
92042
92042
92045
92045
92045
92045
92045A
92045A
92045A
92045A
92046
92046
92046A
92046A
670
670
671
671
671
671
92049
92049
92049A
92049A
92055
92055
92055
92055
92062
92062
92066
92066
92081
92081
92180
92180
92180
92180
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FRONT BEVEL 11012 11012-1672 1
GASKET,GEAR CASE 11060 11060-1086 1
CAM-DAMPER 13048 13048-1058 1
GEAR-ASSY,BEVEL,FR 13101 13101-1094 1
GEAR-ASSY,BEVEL,FR 13101A 13101-5048 1
SHAFT-CLUTCH RELEASE 13106 13106-1068 1
SHAFT,BEVEL GEAR,FR 13107 13107-1166 1
CASE-GEAR,BEVEL,FR 14055 14055-1068 1
HOUSING-BEARING,BEVEL,FR 41046 41046-1073 2
HOUSING-BEARING,BEVEL,FR 41046A 41046-1090 2
BOLT 92002 92002-1357 1
BOLT,6X32 92002A 92002-1623 8
BOLT,6X85 92002B 92002-1624 4
BOLT 92002C 92002-1625 3
NUT,25MM 92015 92015-1480 1
NUT 92015A 92015-1543 1
WASHER,6.1X12X1 92022 92022-077 1
SHIM,T=0.10 92025 92025-1258 AR
SHIM,T=0.15 92025A 92025-1259 AR
SHIM,T=0.20 92025B 92025-1260 AR
SHIM,T=0.30 92025C 92025-1261 AR
SHIM,T=0.60 92025D 92025-1262 AR
SHIM,T=0,90 92025E 92025-1263 AR
SHIM,T=1.20 92025F 92025-1264 AR
SHIM,52.5X61.5X0.15 92025G 92025-1669 AR
SHIM,52.5X61.5X0.18 92025H 92025-1670 AR
SHIM,52.5X61.5X0.8 92025I 92025-1671 AR
SHIM,52.5X61.5X0.9 92025J 92025-1672 AR
SHIM,52.5X61.5X1.0 92025K 92025-1673 AR
SHIM,52.5X61.5X1.1 92025L 92025-1674 AR
SHIM,52.5X61.5X1.2 92025M 92025-1675 AR
SHIM,52.5X61.5X1.3 92025N 92025-1676 AR
SHIM,52.5X61.5X1.4 92025O 92025-1677 AR
SPACER,25.3X36X2.0 92026 92026-1533 2
COLLAR 92027 92027-1843 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
BEARING-BALL,6205 92045 92045-1115 2
BEARING-BALL,5305SH2CD2 92045A 92045-1147 2
BEARING-NEEDLE,7E-HK1412 92046 92046-037 1
BEARING-NEEDLE,HK0709 92046A 92046-1142 1
O RING,21MM 670 670B2021 1
O RING,65MM 671 671B2565 2
SEAL-OIL,TC14244.8 92049 92049-1037 1
SEAL-OIL,TC35527 92049A 92049-1038 1
RING-O 92055 92055-1306 2
NOZZLE,6X8,BLACK 92062 92062-1079 1
PLUG,PT1/8X7 92066 92066-1227 1
SPRING 92081 92081-1552 1
SHIM,52.5X61.5X0.10 92180 92180-1115 AR
