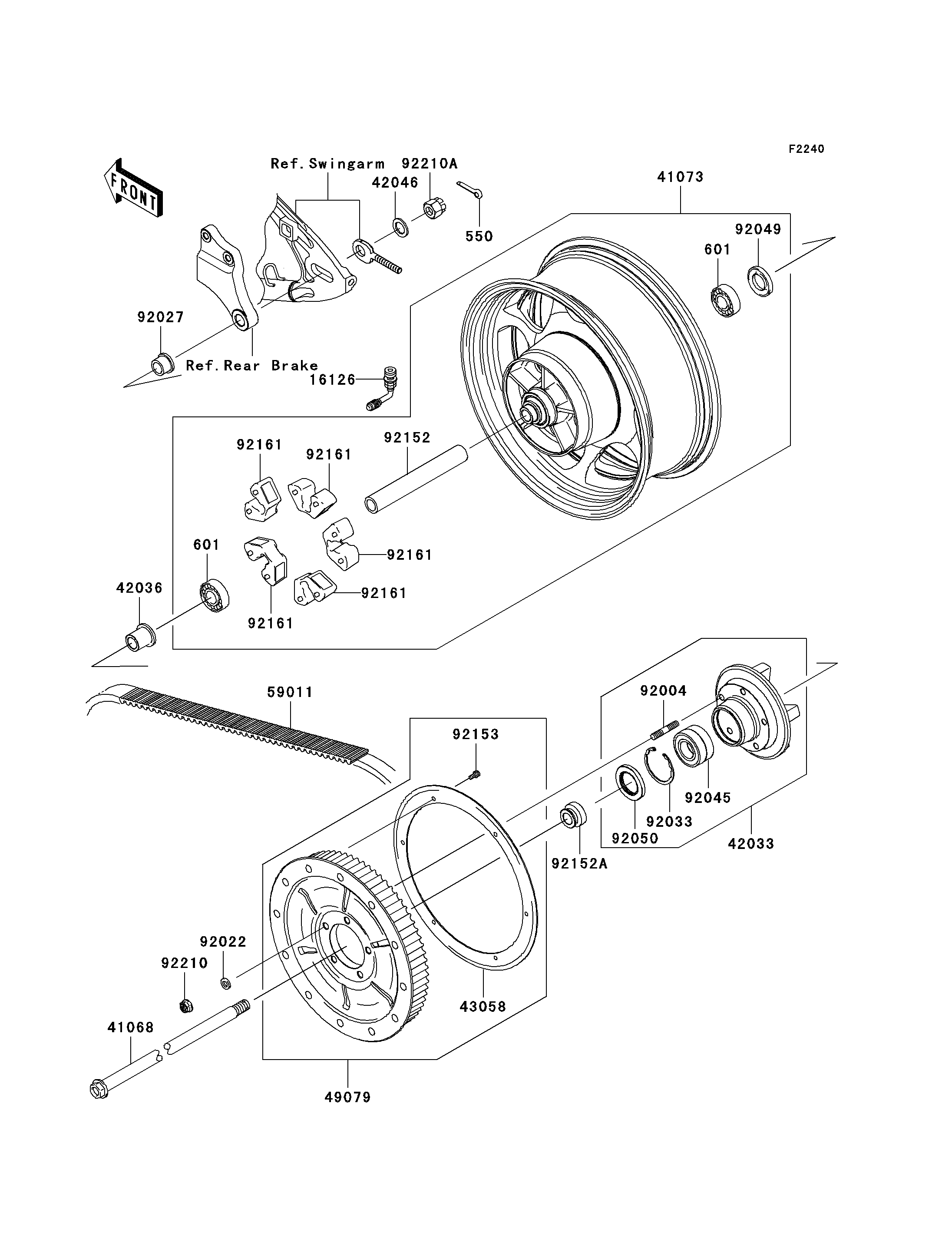

2008 Vulcan® 2000 Classic - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
550
601
601
16126
41068
41073
42033
42036
42046
43058
49079
59011
92004
92022
92027
92033
92045
92049
92050
92152
92152A
92153
92161
92161
92161
92161
92161
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 550 550AA4035 1
BEARING-BALL,#6304UUC3 601 601B6304UU 2
VALVE 16126 16126-1365 1
AXLE,RR 41068 41068-0007 1
WHEEL-ASSY,RR 41073 41073-0061 1
COUPLING-ASSY,RR HUB 42033 42033-0020 1
SLEEVE,RR HUB COUPLING,L=39 42036 42036-0027 1
WASHER,21X33X2.6 42046 42046-003 1
RING,REAR PULLEY 43058 43058-0004 1
PULLEY-BELT,P.SILVER 49079 49079-0004-458 1
BELT,DRIVE,133T 59011 59011-0004 1
STUD,10X35 92004 92004-0016 5
WASHER,10.5X19X3.2 92022 92022-1820 5
COLLAR,RR AXLE,L=21.5 92027 92027-1902 1
RING-SNAP,62MM 92033 92033-1044 1
BEARING-BALL,6206LUD2C3/2AS 92045 92045-0045 1
SEAL-OIL,28X52X5 92049 92049-1061 1
SEAL-OIL,AJN40627 92050 92050-027 1
COLLAR,RR HUB,L=210 92152 92152-0051 1
COLLAR,RR AXLE,LH,L=24 92152A 92152-0321 1
BOLT,SOCKET,6X12 92153 92153-0827 6
DAMPER,SHOCK,RR HUB 92161 92161-0043 5
NUT,LOCK,FLANGED,10MM 92210 92210-0276 5
NUT,CASTLE,18MM 92210A 92210-1134 1
