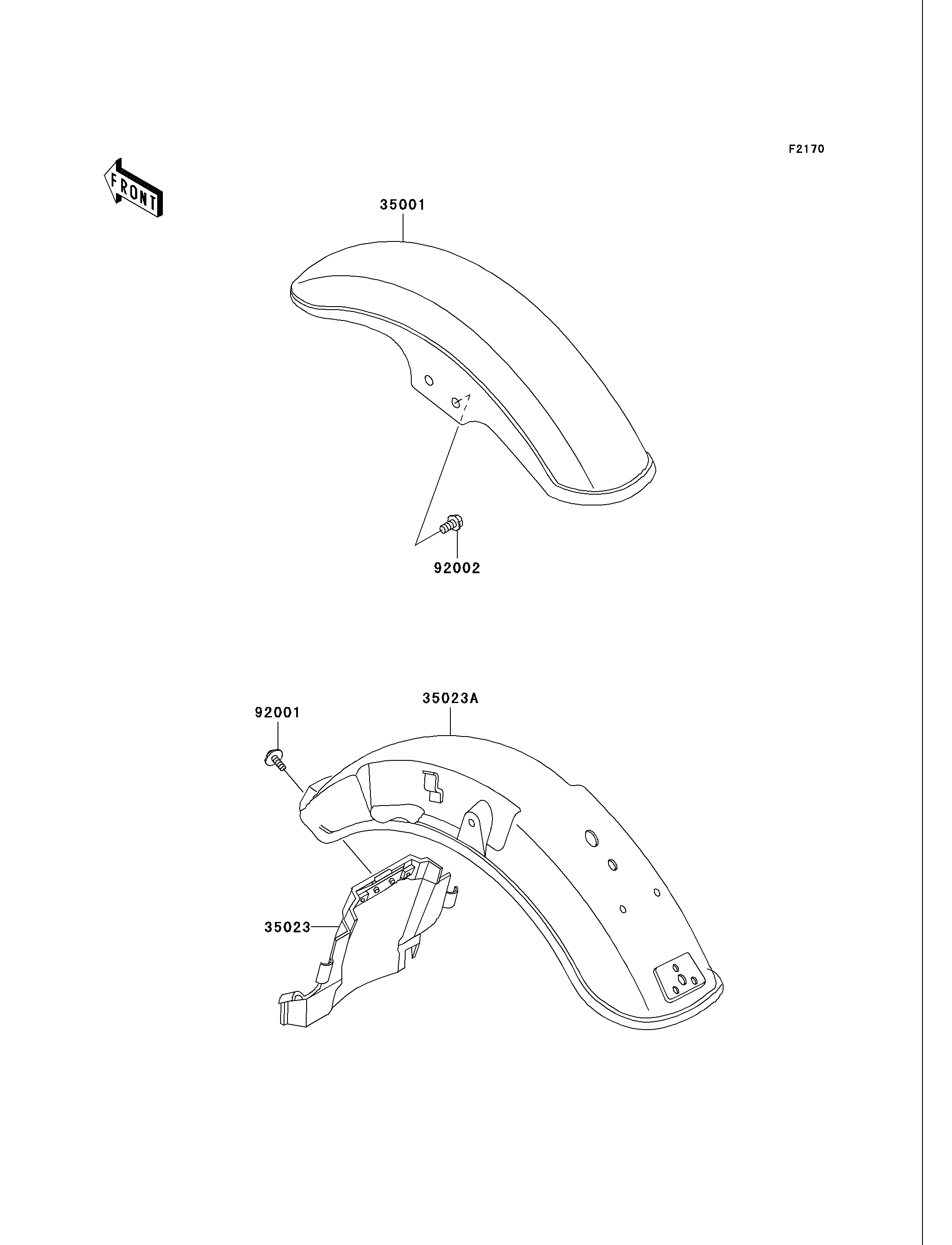

35001
35023
35023A
92001
92002
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-ASSY-FRONT,EBONY 35001 35001-1110-H8 1
FENDER-REAR,FR 35023 35023-1123 1
FENDER-REAR,RR,EBONY 35023A 35023-1124-H8 1
BOLT,6X20 92001 92001-1773 2
BOLT,FLANGED,8X16 92002 92002-1200 4
