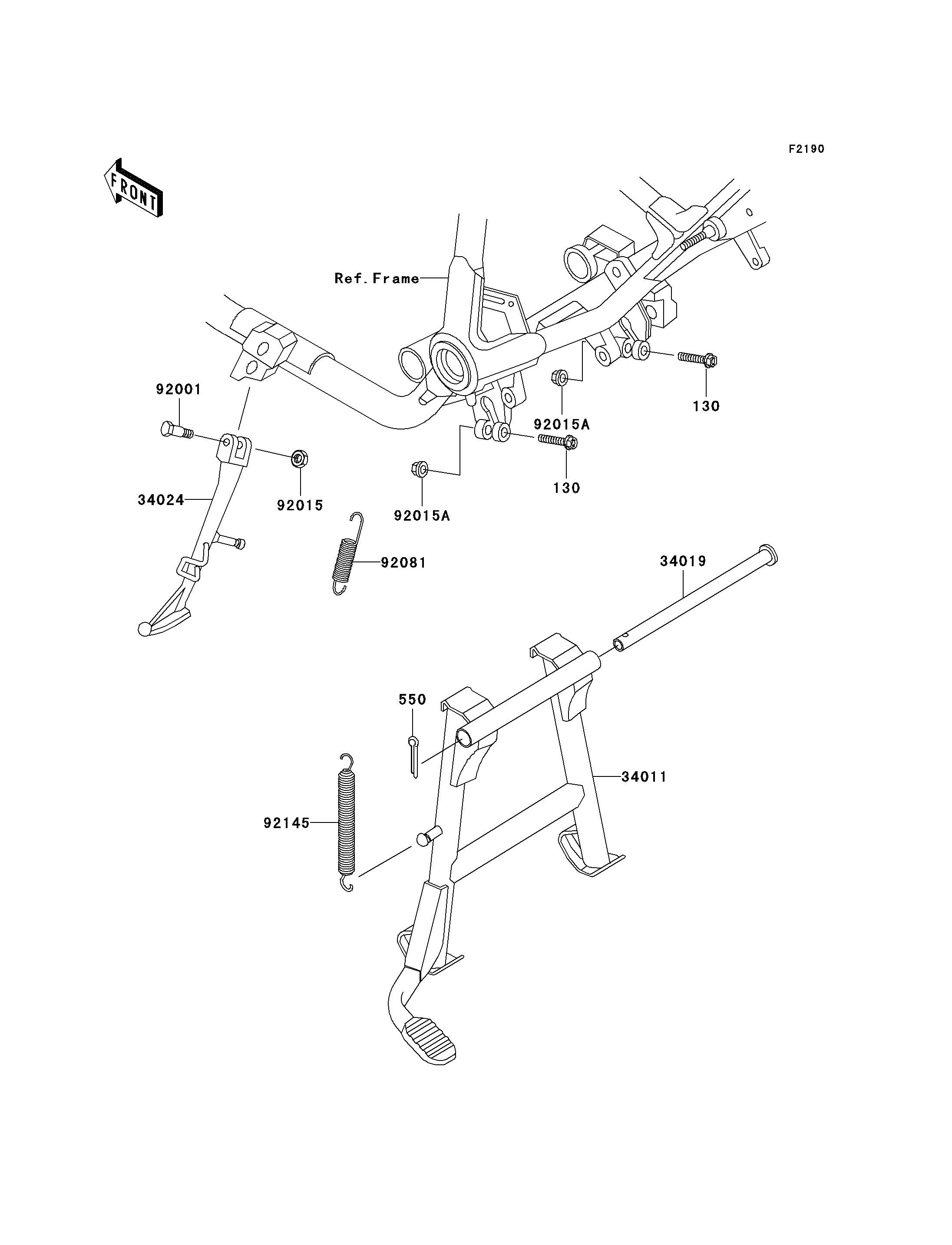

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130L0840 2
PIN-COTTER,3.0X30 550 550D3030 1
STAND-CENTER 34011 34011-1126 1
SHAFT-STAND 34019 34019-1051 1
STAND-SIDE 34024 34024-1201 1
BOLT,SIDE STAND,BLACK 92001 92001-1543 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
NUT,FLANGED,8MM 92015A 92015-1409 2
SPRING,SIDE STAND 92081 92081-1894 1
SPRING,CENTER STAND 92145 92145-0104 1
