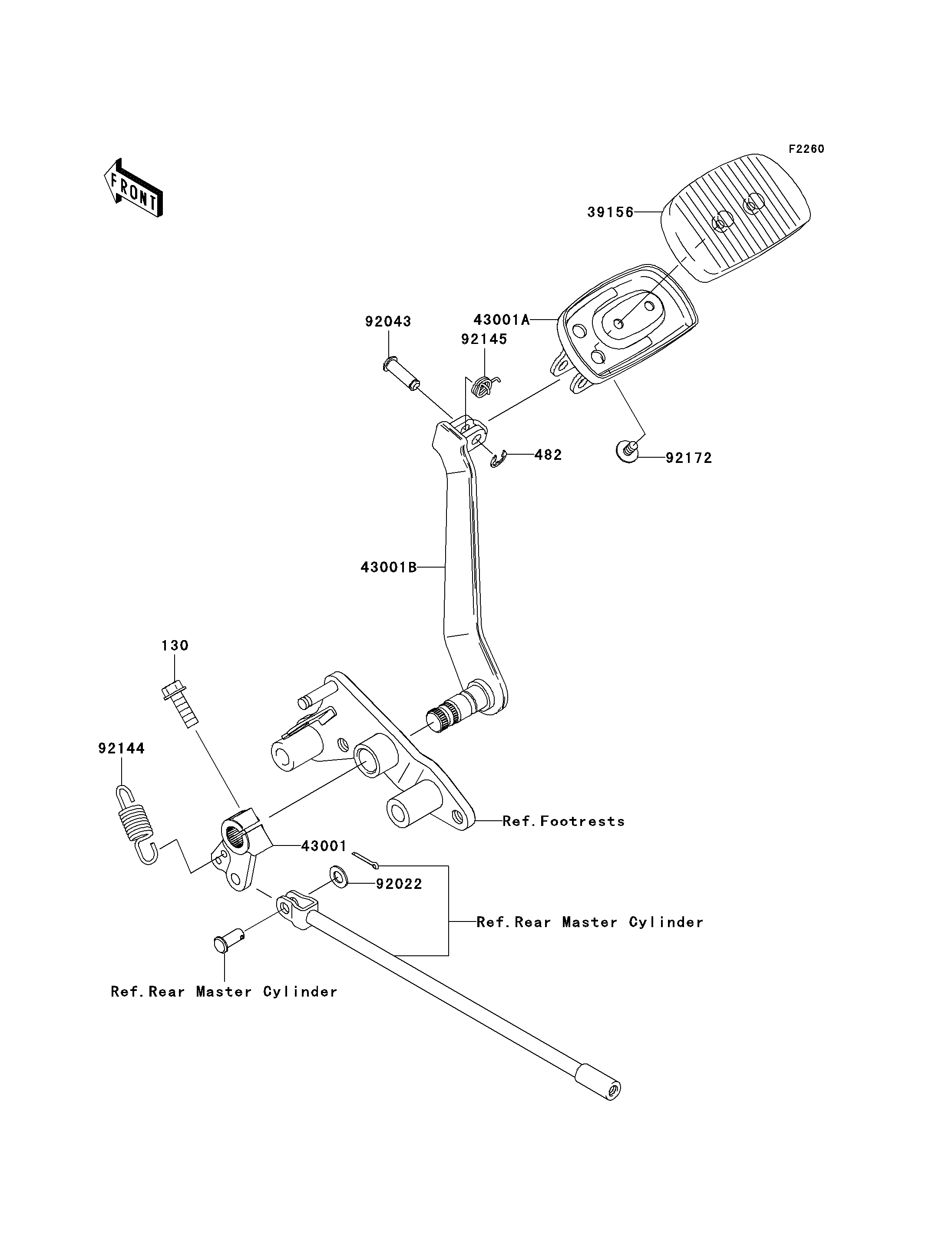

2008 Vulcan® 2000 Classic - Brake Pedal/Torque Link

130
482
39156
43001
43001A
43001B
92022
92043
92144
92145
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130BB0830 1
CIRCLIP-TYPE-E 482 482EA7000 1
PAD,BRAKE PEDAL 39156 39156-0045 1
LEVER-BRAKE 43001 43001-0022 1
LEVER-BRAKE 43001A 43001-0023 1
LEVER-BRAKE,PADAL 43001B 43001-0031 1
WASHER,8.5X16X1.2 92022 92022-1582 1
PIN,8X24.5 92043 92043-0047 1
SPRING,BRAKE PEDAL RETURN 92144 92144-1169 1
SPRING 92145 92145-0168 1
SCREW,6X10 92172 92172-0098 2
