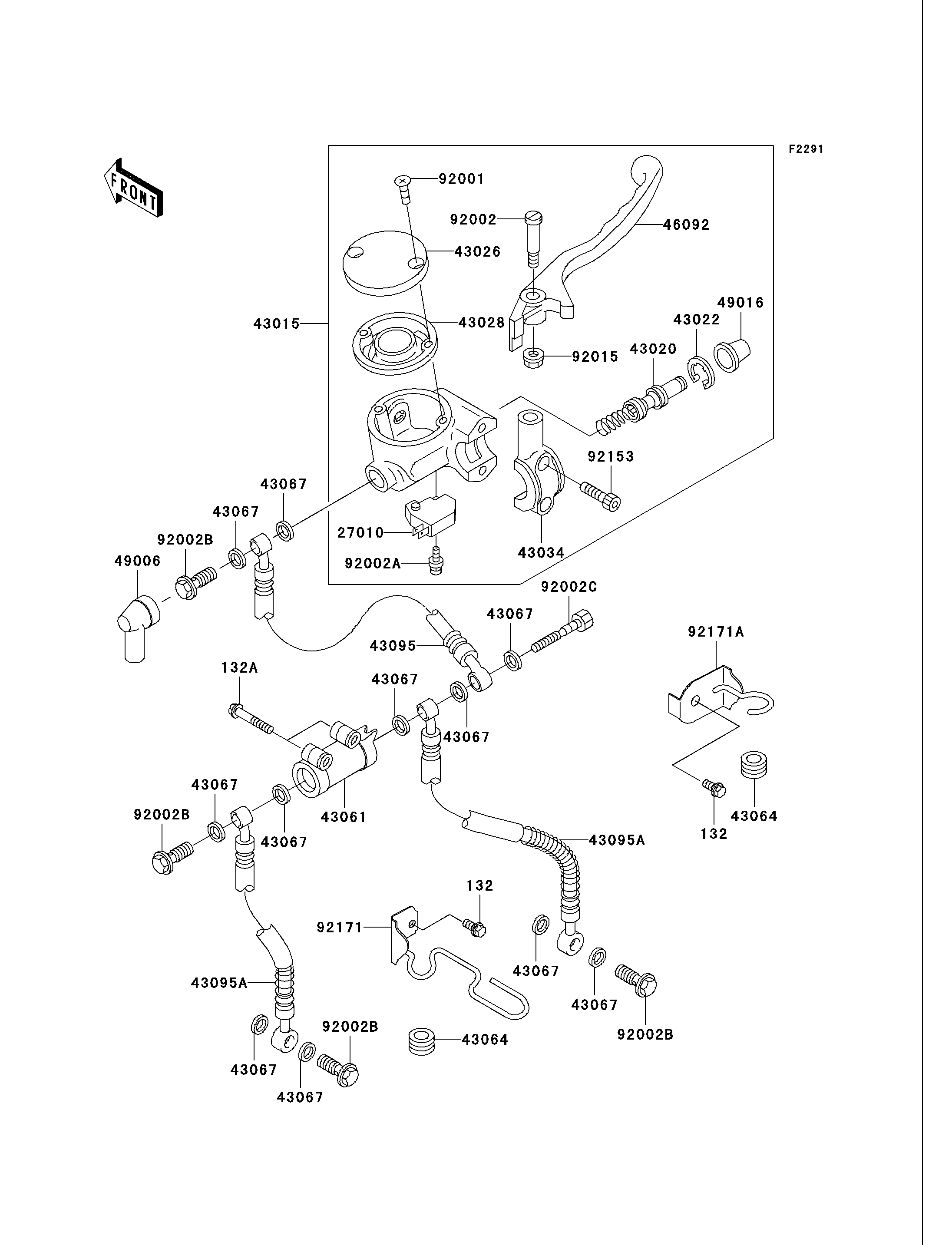

2005 Vulcan 750 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
27010
43015
43020
43022
43026
43028
43034
43061
43064
43064
43067
43067
43067
43067
43067
43067
43067
43067
43067
43067
43067
43095
43095A
43095A
46092
49006
49016
92001
92002
92002A
92002B
92002B
92002B
92002B
92002C
92015
92153
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132E0612 2
BOLT-FLANGED-SMALL 132A 132G0635 2
SWITCH,BRAKE 27010 27010-1170 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1493 1
PISTON-COMP-BRAKE,FR 43020 43020-1054 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE,BLACK 43026 43026-1079 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1071 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1113 1
JOINT-BRAKE 43061 43061-1002 1
GROMMET,HOSE CLAMP 43064 43064-006 2
WASHER,10.5X15X1.5 43067 43067-001 11
HOSE-BRAKE,FR 43095 43095-1373 1
HOSE-BRAKE,FR 43095A 43095-1374 2
LEVER-GRIP,FRONT BRAKE 46092 46092-1171 1
BOOT,DUST 49006 49006-1040 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
SCREW,5MM,BLACK 92001 92001-1727 2
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
BOLT,OIL,L=23 92002B 92002-1888 4
BOLT,OIL,L=37 92002C 92002-1909 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
BOLT,SOCKET,6X20 92153 92153-0417 2
CLAMP,BRAKE HOSE,LH 92171 92171-0103 1
CLAMP,BRAKE HOSE 92171A 92171-0105 1
