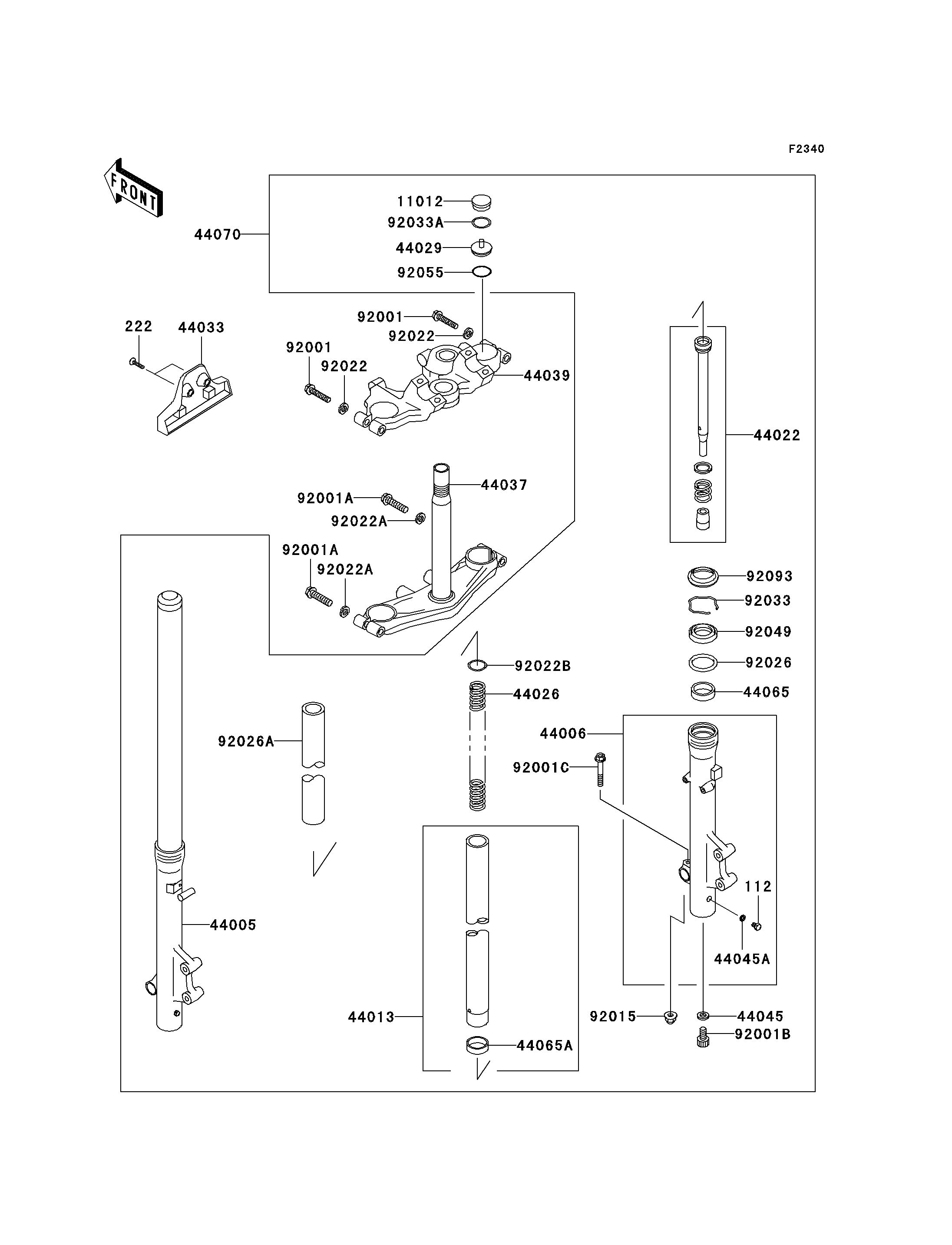

Parts Diagrams |
112
222
11012
44005
44006
44013
44022
44026
44029
44033
44037
44039
44045
44045A
44065
44065A
44070
92001
92001
92001A
92001A
92001B
92001C
92015
92022
92022
92022A
92022A
92022B
92026
92026A
92033
92033A
92049
92055
92093
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET | 112 | 112B0608 | 2 | ||
SCREW-CSK-RD-CROS | 222 | 222C0520 | 2 | ||
CAP,FORK TOP | 11012 | 11012-1696 | 2 | ||
PIPE-LEFT FORK OUTER | 44005 | 44005-1231 | 1 | ||
PIPE-RIGHT FORK OUTER | 44006 | 44006-1231 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-1230 | 2 | ||
CYLINDER-FORK | 44022 | 44022-1180 | 2 | ||
SPRING-FRONT FORK,K=0.5 | 44026 | 44026-1301 | 2 | ||
SEAT-FORK SPRING | 44029 | 44029-1135 | 2 | ||
COVER-FORK | 44033 | 44033-1166 | 1 | ||
HOLDER-FORK UNDER | 44037 | 44037-1175 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1117 | 1 | ||
GASKET,FORK CYLINDER BOLT | 44045 | 44045-051 | 2 | ||
GASKET,DRAIN PLUG | 44045A | 44045-052 | 2 | ||
BUSHING-FRONT FORK | 44065 | 44065-1070 | 2 | ||
BUSHING-FRONT FORK,INNER PIPE | 44065A | 44065-1071 | 2 | ||
DAMPER-ASSY,FORK | 44070 | 44070-5032 | 1 | ||
BOLT,8X40 | 92001 | 92001-1063 | 2 | ||
BOLT,10X40 | 92001A | 92001-1454 | 2 | ||
BOLT,FORK CYLINDER | 92001B | 92001-1464 | 2 | ||
BOLT,FLANGED,8X50 | 92001C | 92001-1486 | 1 | ||
NUT,FLANGED,8MM | 92015 | 92015-1055 | 1 | ||
WASHER,SPRING,8MM | 92022 | 92022-1703 | 2 | ||
WASHER,SPRING,10MM | 92022A | 92022-1704 | 2 | ||
WASHER,SPRING SEAT | 92022B | 92022-1713 | 2 | ||
SPACER,FORK | 92026 | 92026-1254 | 2 | ||
SPACER,FRONT FORK SPRING | 92026A | 92026-1255 | 2 | ||
RING-SNAP,FORK | 92033 | 92033-1200 | 2 | ||
RING-SNAP | 92033A | 92033-1201 | 2 | ||
SEAL-OIL,FORK | 92049 | 92049-1230 | 2 | ||
RING-O,FORK SPRING SEAT | 92055 | 92055-1309 | 2 | ||
SEAL,FORK | 92093 | 92093-1197 | 2 |
BOLT-UPSET | |
REF # | 112 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-CSK-RD-CROS | |
REF # | 222 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,FORK TOP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIPE-LEFT FORK OUTER | |
REF # | 44005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-RIGHT FORK OUTER | |
REF # | 44006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-FORK INNER | |
REF # | 44013 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CYLINDER-FORK | |
REF # | 44022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING-FRONT FORK,K=0.5 | |
REF # | 44026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAT-FORK SPRING | |
REF # | 44029 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER-FORK | |
REF # | 44033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-FORK UNDER | |
REF # | 44037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-FORK UPPER | |
REF # | 44039 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,FORK CYLINDER BOLT | |
REF # | 44045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,DRAIN PLUG | |
REF # | 44045A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING-FRONT FORK | |
REF # | 44065 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING-FRONT FORK,INNER PIPE | |
REF # | 44065A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER-ASSY,FORK | |
REF # | 44070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X40 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,10X40 | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FORK CYLINDER | |
REF # | 92001B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X50 | |
REF # | 92001C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,SPRING,8MM | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,SPRING,10MM | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,SPRING SEAT | |
REF # | 92022B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPACER,FORK | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPACER,FRONT FORK SPRING | |
REF # | 92026A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,FORK | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,FORK | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,FORK SPRING SEAT | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,FORK | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
