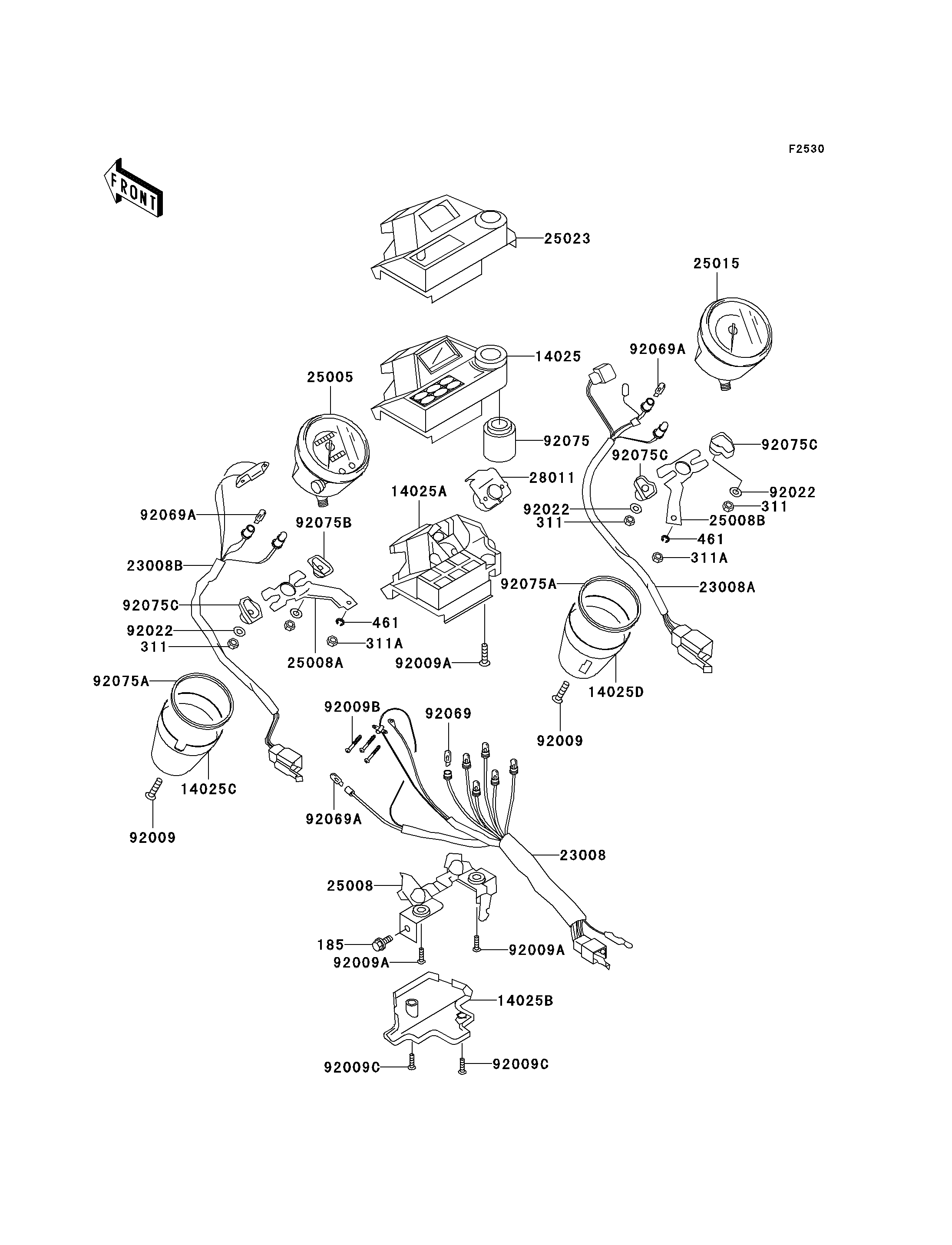

2005 Vulcan 750 - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
185
311
311
311
311A
311A
461
461
14025
14025A
14025B
14025C
14025D
23008
23008A
23008B
25005
25008
25008A
25008B
25015
25023
28011
92009
92009
92009A
92009A
92009A
92009B
92009C
92009C
92022
92022
92022
92069
92069A
92069A
92069A
92075
92075A
92075A
92075B
92075C
92075C
92075C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP-SMALL 185 185C0816 2
NUT-HEX 311 311B0500 4
NUT-HEX,6MM 311A 311B0600 2
WASHER-SPRING,6MM 461 461F0600 2
COVER,PILOT BOX,UPP 14025 14025-1742 1
COVER,PILOT BOX,INNER 14025A 14025-1743 1
COVER,PILOT BOX,LWR 14025B 14025-1744 1
COVER,SPEEDOMETER 14025C 14025-1745 1
COVER,TACHOMETER 14025D 14025-1746 1
SOCKET-ASSY,PILOT BOX 23008 23008-1255 1
SOCKET-ASSY,TACHOMETER 23008A 23008-1257 1
SOCKET-ASSY,SPEEDOMETER 23008B 23008-1398 1
SPEEDOMETER,MPH 25005 25005-1736 1
BRACKET-METER,PILOT BOX 25008 25008-1115 1
BRACKET-METER,SPEEDOMETER 25008A 25008-1116 1
BRACKET-METER,TACHOMETER 25008B 25008-1117 1
TACHOMETER,X1000R/MIN 25015 25015-1369 1
COVER-METER CASE,PILOT BOX 25023 25023-1125 1
METER,FUEL 28011 28011-1071 1
SCREW,TAPPING,4X16 92009 92009-1063 2
SCREW,TAPPING,4X16 92009A 92009-1163 6
SCREW,3X22 92009B 92009-1293 3
SCREW,TAPPING,4X14 92009C 92009-1593 2
WASHER,5.2X16X1.2 92022 92022-263 4
BULB,12V 3.4W,T10 92069 92069-1007 6
BULB,12V 3W,T7 92069A 92069-1020 5
DAMPER,TRIP METER 92075 92075-1286 1
DAMPER,METER 92075A 92075-1712 2
DAMPER,METER 92075B 92075-1713 1
DAMPER,METER 92075C 92075-1714 3
