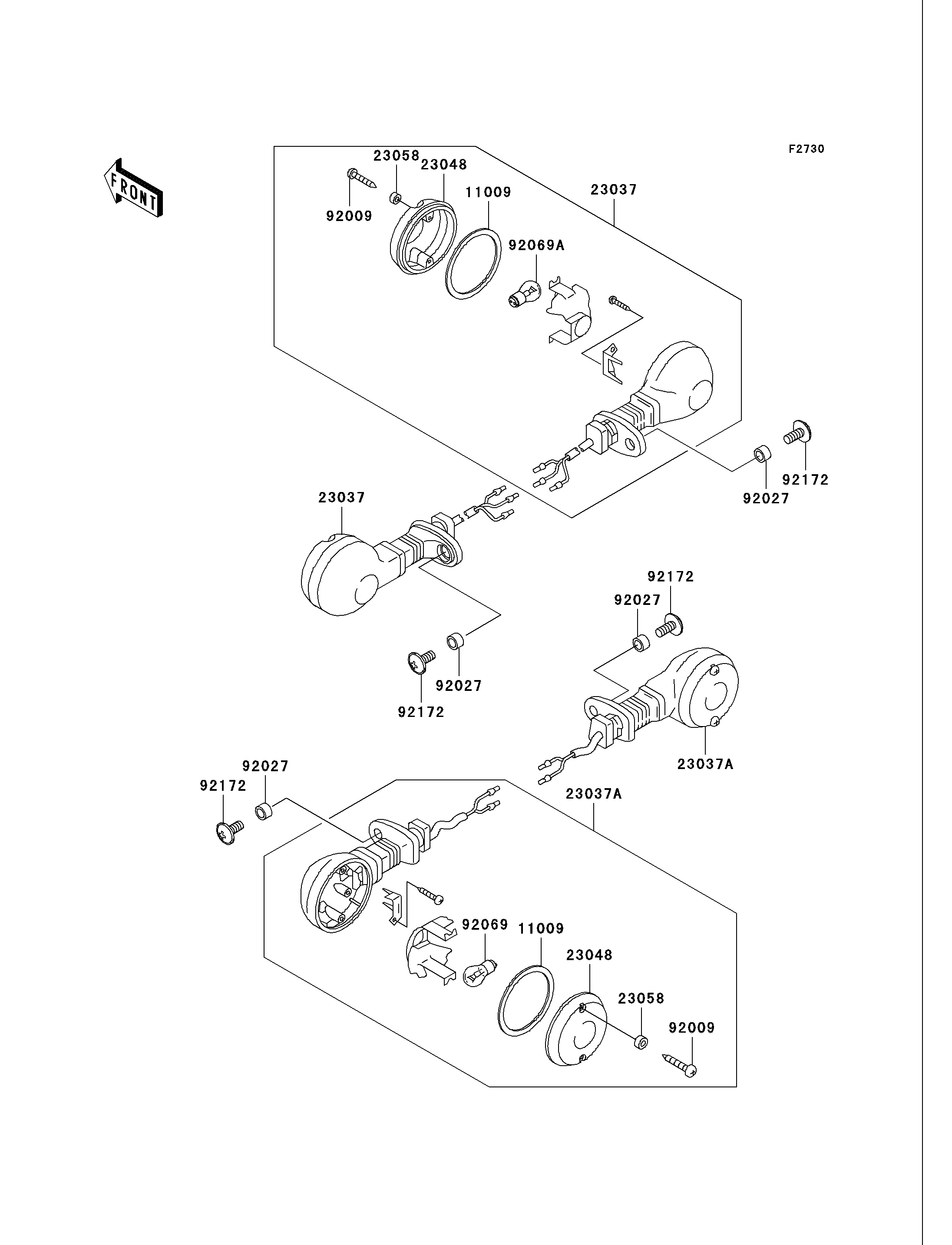

Parts Diagrams |
11009
11009
23037
23037
23037A
23037A
23048
23048
23058
23058
92009
92009
92027
92027
92027
92027
92069
92069A
92172
92172
92172
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,SIGNAL LAMP | 11009 | 11009-1413 | 4 | ||
LAMP-ASSY-SIGNAL,FR | 23037 | 23037-1214 | 2 | ||
LAMP-ASSY-SIGNAL | 23037A | 23037-1220 | 2 | ||
LENS-SIGNAL LAMP | 23048 | 23048-1066 | 4 | ||
WASHER,PLAIN,4MM | 23058 | 23058-002 | 8 | ||
SCREW,TAPPING,4X25 | 92009 | 92009-1069 | 8 | ||
COLLAR,6.8X10X6 | 92027 | 92027-103 | 4 | ||
BULB,12V 32CP(23W) | 92069 | 92069-055 | 2 | ||
BULB,12V 32/3CP(23/8W) | 92069A | 92069-060 | 2 | ||
SCREW,6X14 | 92172 | 92172-0004 | 4 |
GASKET,SIGNAL LAMP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
LAMP-ASSY-SIGNAL,FR | |
REF # | 23037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LAMP-ASSY-SIGNAL | |
REF # | 23037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LENS-SIGNAL LAMP | |
REF # | 23048 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,PLAIN,4MM | |
REF # | 23058 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X25 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
COLLAR,6.8X10X6 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BULB,12V 32CP(23W) | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 32/3CP(23/8W) | |
REF # | 92069A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X14 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
