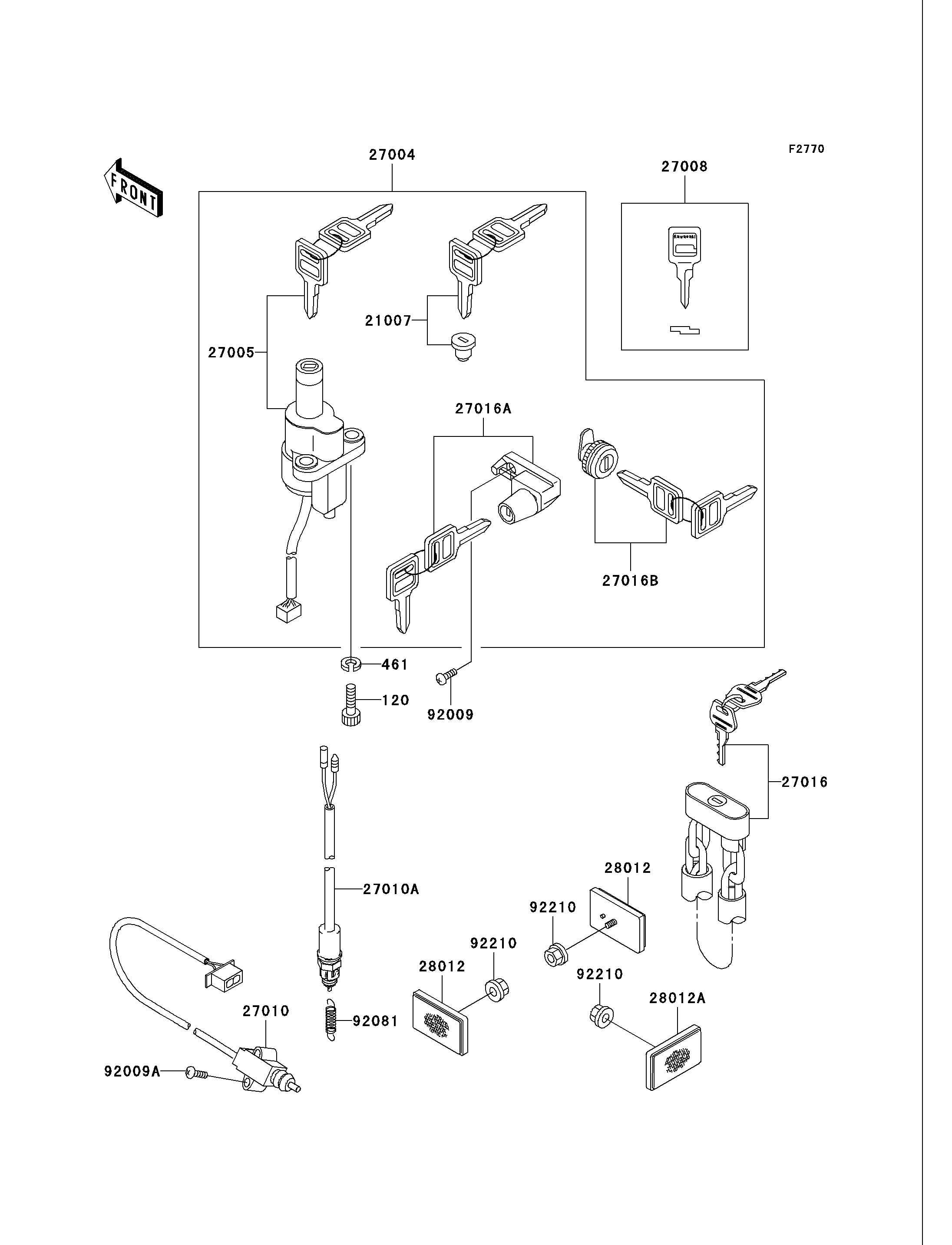

2005 Vulcan 750 - Ignition Switch/Locks/Reflectors

120
461
21007
27004
27005
27008
27010
27010A
27016
27016A
27016B
28012
28012
28012A
92009
92009A
92081
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120T0822 2
WASHER-SPRING 461 461L0800 2
ROTOR,LOCK,TANK CAP 21007 21007-5005 1
SWITCH-ASSY 27004 27004-5270 1
SWITCH-ASSY-IGNITION 27005 27005-5052 1
KEY-LOCK,BLANK 27008 27008-1103 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1189 1
SWITCH,REAR BRAKE 27010A 27010-1475 1
LOCK-ASSY,WHEEL 27016 27016-1051 1
LOCK-ASSY,HELMET 27016A 27016-5060 2
LOCK-ASSY,BOX 27016B 27016-5081 1
REFLECTOR-REFLEX,FR 28012 28012-1009 2
REFLECTOR-REFLEX,RR 28012A 28012-1051 1
SCREW,5X18 92009 92009-1305 2
SCREW,5X20 92009A 92009-1359 2
SPRING 92081 92081-1544 1
NUT,FLANGED,5MM 92210 92210-0007 3
