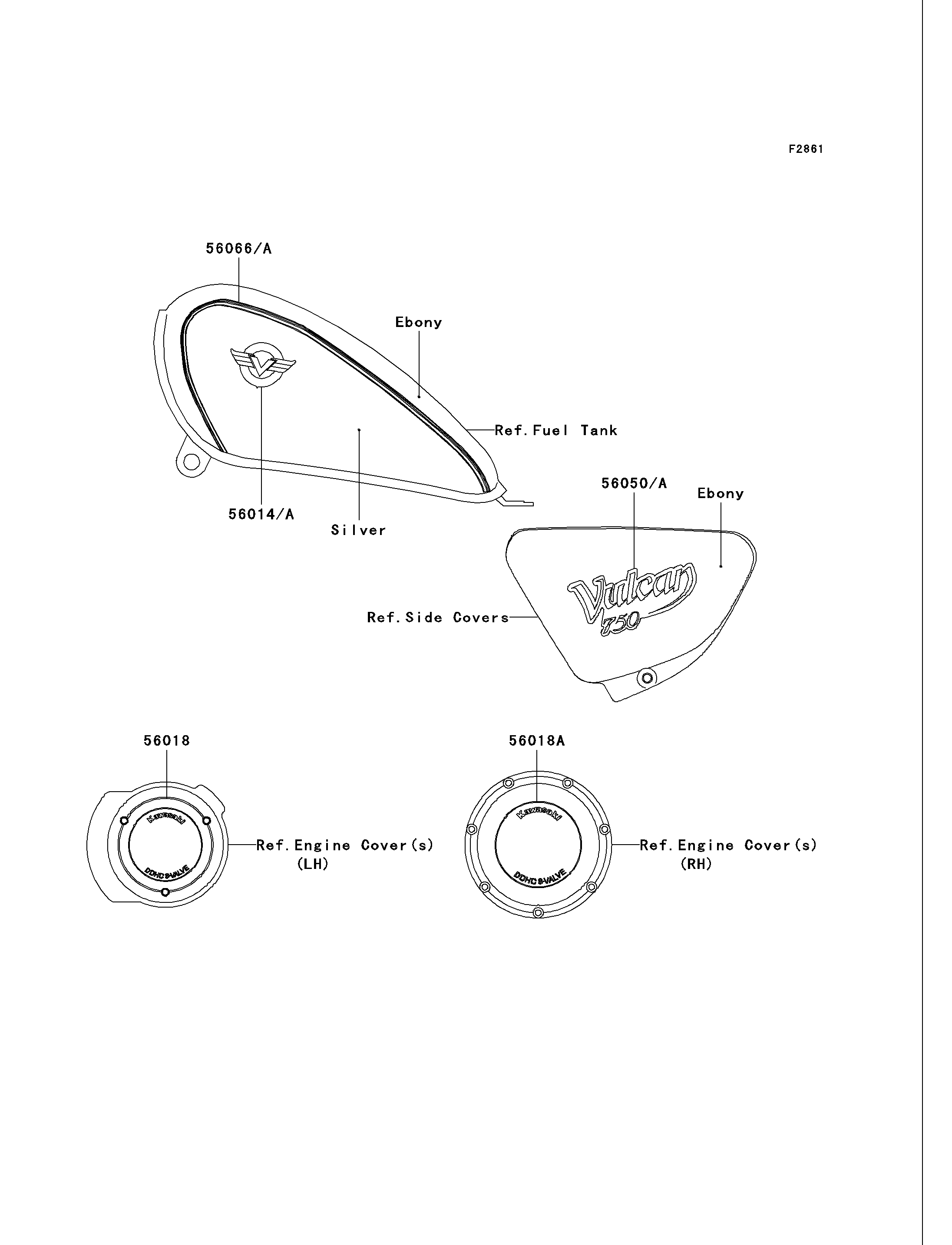

56014
56014A
56018
56018A
56050
56050A
56066
56066A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,LH 56014 56014-1272 1
EMBLEM,FUEL TANK,RH 56014A 56014-1273 1
MARK,GENERATOR COVER 56018 56018-1666 1
MARK,CLUTCH COVER 56018A 56018-1667 1
MARK,SIDE COVER,LH 56050 56050-1772 1
MARK,SIDE COVER,RH 56050A 56050-1773 1
PATTERN,FUEL TANK,LH 56066 56066-0349 1
PATTERN,FUEL TANK,RH 56066A 56066-0350 1
