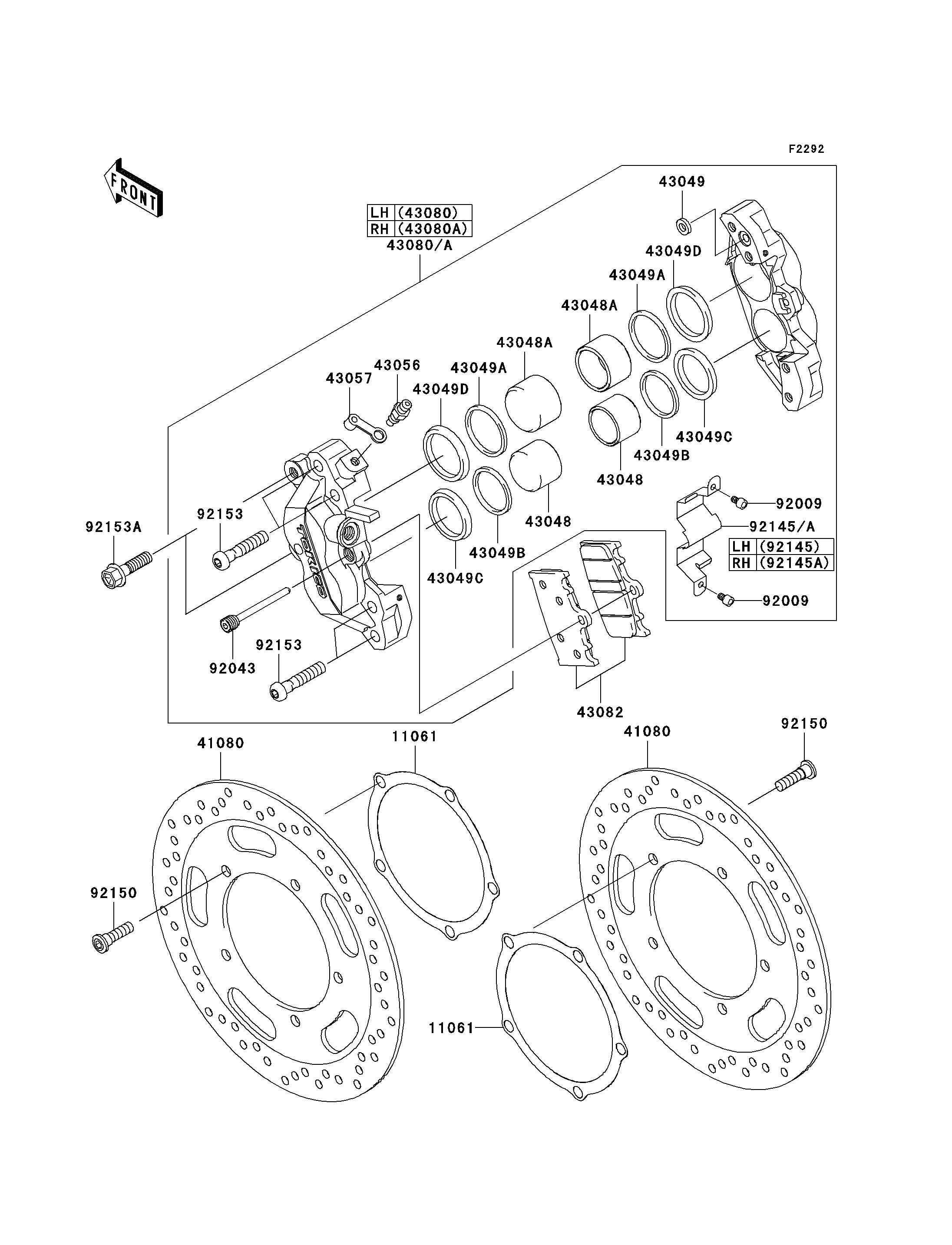

2008 Vulcan® 2000 Classic - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
41080
41080
43048
43048
43048A
43048A
43049
43049A
43049A
43049B
43049B
43049C
43049C
43049D
43049D
43056
43057
43080
43080A
43082
92009
92009
92043
92145
92145A
92150
92150
92153
92153
92153A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DISC PLATE 11061 11061-0103 2
DISC,FR,SILVER 41080 41080-0095-CM 2
PISTON-CALIPER,DIA=30.2 43048 43048-1098 4
PISTON-CALIPER,DIA=33.934 43048A 43048-1099 4
PACKING,SEAL,6.5X11.5X2.2 43049 43049-1004 2
PACKING,PISTON 43049A 43049-1057 4
PACKING 43049B 43049-1068 4
PACKING,PISTON SEAL 43049C 43049-1092 4
PACKING,PISTON SEAL 43049D 43049-1095 4
BREATHER-BRAKE 43056 43056-1054 2
CAP-BREATHER 43057 43057-003 2
CALIPER-SUB-ASSY,FR,LH,SILVER 43080 43080-0009-GN 1
CALIPER-SUB-ASSY,FR,RH,SILVER 43080A 43080-0010-GN 1
PAD-ASSY-BRAKE 43082 43082-0016 2
BOLT,SOCKET,4X6 92009 92009-1758 4
PIN,PAD 92043 92043-1683 2
SPRING,COVER,LH 92145 92145-1503 1
SPRING,COVER,RH 92145A 92145-1504 1
BOLT,SOCKET,8X30 92150 92150-1771 10
BOLT,SOCKET,8X40 92153 92153-0360 8
BOLT,FLANGED,8X30 92153A 92153-1089 4
