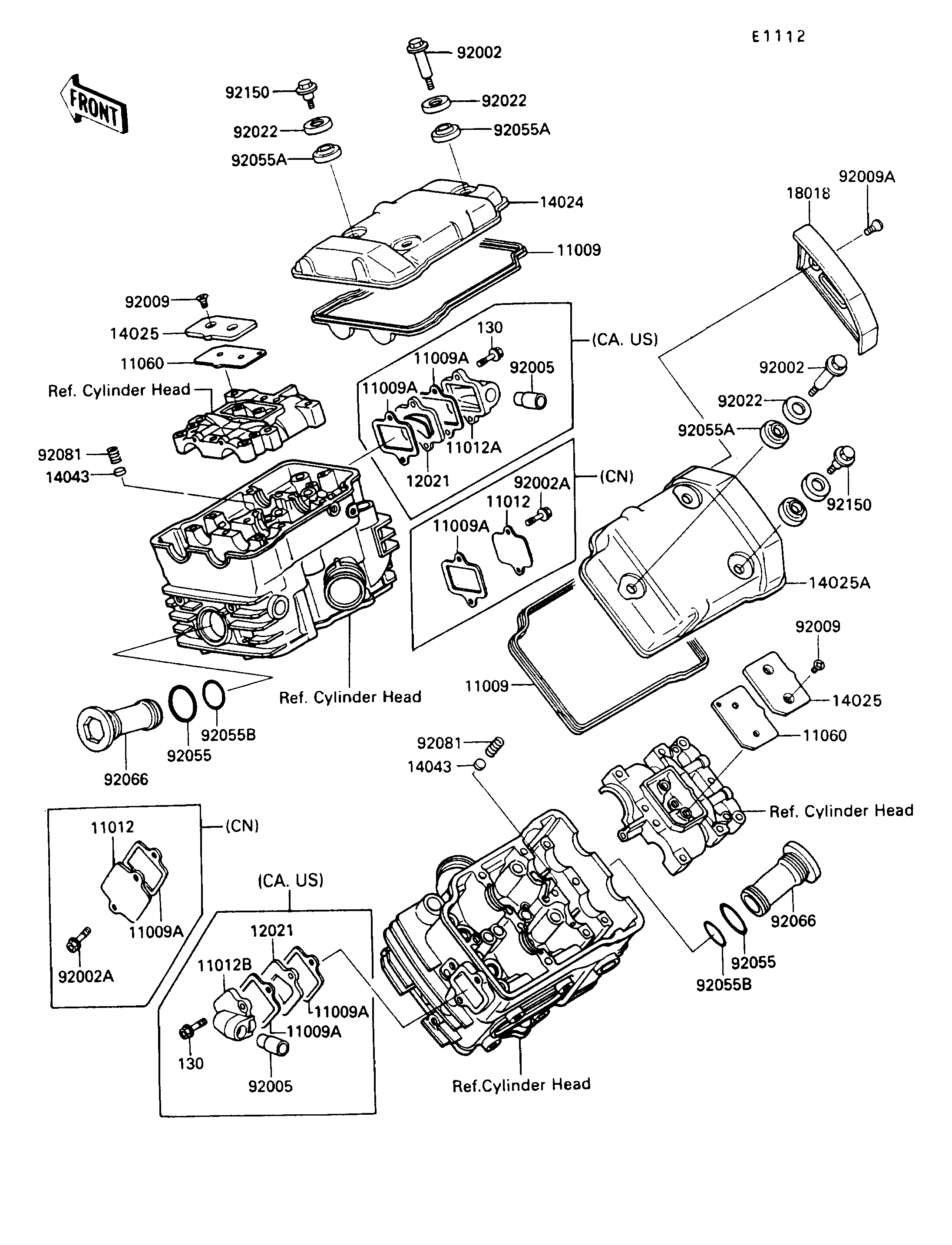

Parts Diagrams |
11009
11009
11060
11060
14024
14025
14025
14025A
14043
14043
18018
92002
92002
92009
92009
92009A
92022
92022
92022
92055
92055
92055A
92055A
92055A
92055B
92055B
92066
92066
92081
92081
92150
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,CYLINDER HEAD COVER | 11009 | 11009-1508 | 2 | ||
GASKET,SEPARATER COVER | 11060 | 11060-1083 | 2 | ||
COVER,CYLINDER HEAD,FR | 14024 | 14024-1089 | 1 | ||
COVER,SEPARATER | 14025 | 14025-1738 | 2 | ||
COVER,CYLINDER HEAD,RR | 14025A | 14025-1739 | 1 | ||
FILTER,OIL | 14043 | 14043-1056 | 2 | ||
PLATE-HEAT GUARD | 18018 | 18018-1063 | 1 | ||
BOLT | 92002 | 92002-1421 | 2 | ||
SCREW,6X10 | 92009 | 92009-1363 | 4 | ||
SCREW,6X16 | 92009A | 92009-1393 | 2 | ||
WASHER,HEAD COVER BOLT | 92022 | 92022-1637 | 6 | ||
RING-O,31.5X2.6 | 92055 | 92055-049 | 2 | ||
RING-O,HEAD COVER BOLT | 92055A | 92055-1225 | 6 | ||
RING-O,27.7X1.9 | 92055B | 92055-1272 | 2 | ||
PLUG,CYLINDER HEAD | 92066 | 92066-1224 | 2 | ||
SPRING,OIL FILTER | 92081 | 92081-1776 | 2 | ||
BOLT,HEAD COVER | 92150 | 92150-1447 | 4 | ||
BOLT-FLANGED | 130 | 130N0620 | 4 | ||
GASKET,REED VALVE | 11009A | 11009-1879 | 4 | ||
GASKET,REED VALVE | 11009A | 11009-1879 | 2 | ||
CAP,CYLINDER HEAD COVER | 11012 | 11012-1484 | 2 | ||
CAP,REED VALVE,FR | 11012A | 11012-1494 | 1 | ||
CAP,REED VALVE,RR | 11012B | 11012-1495 | 1 | ||
VALVE-ASSY-REED | 12021 | 12021-1011 | 2 | ||
BOLT | 92002A | 92002-1626 | 4 | ||
FITTING,REED VALVE | 92005 | 92005-1006 | 2 |
