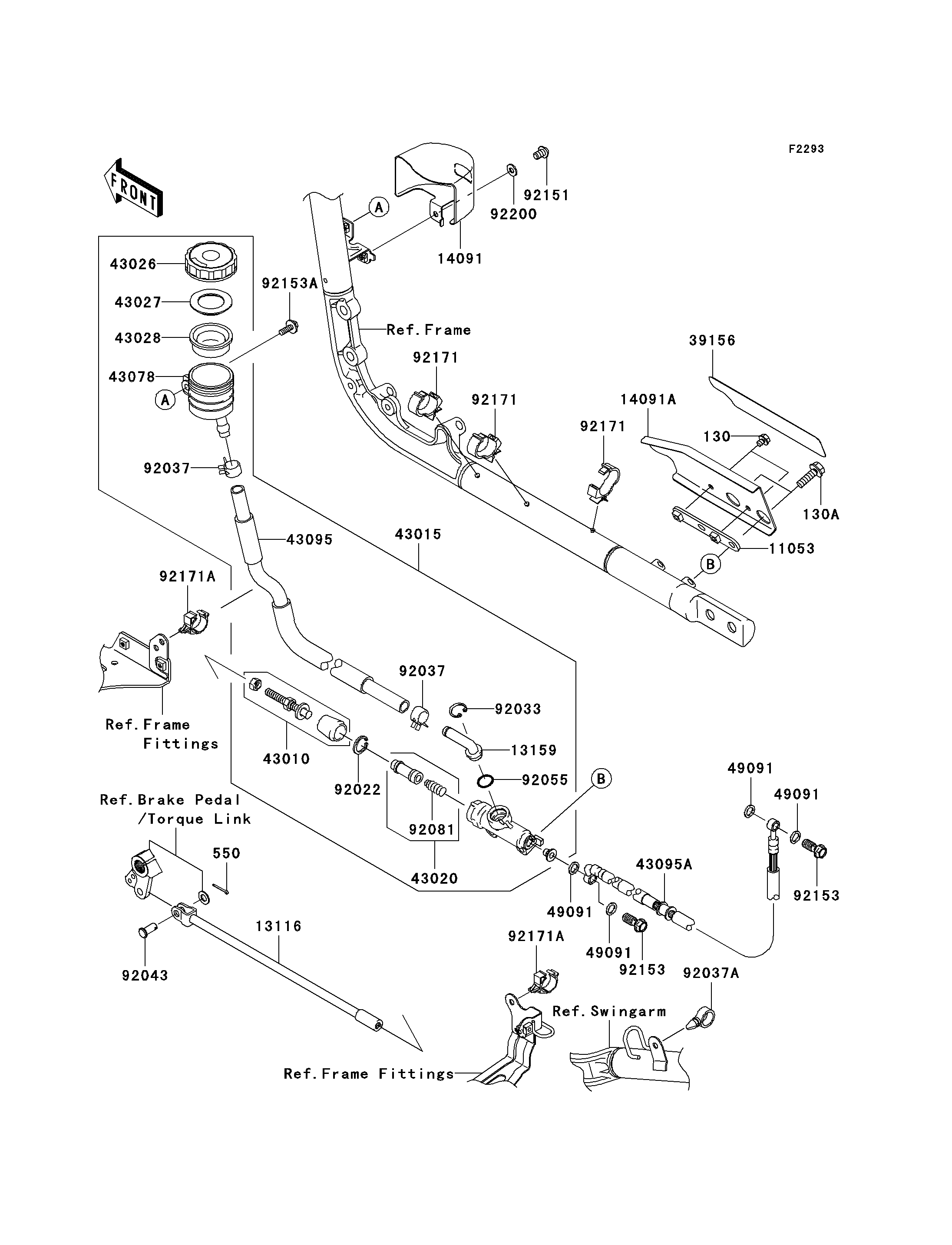

2008 Vulcan® 2000 Classic - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130A
550
11053
13116
13159
14091
14091A
39156
43010
43015
43020
43026
43027
43028
43078
43095
43095A
49091
49091
49091
49091
92022
92033
92037
92037
92037A
92043
92055
92081
92151
92153
92153
92153A
92171
92171
92171
92171A
92171A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BB0610 2
BOLT-FLANGED,8X30 130A 130BB0830 2
PIN-COTTER,2.0X15 550 550AA2015 1
BRACKET,HEAT GUARD COVER 11053 11053-0948 1
ROD-PUSH 13116 13116-0011 1
CONNECTOR,RR MASTER CYLINDER 13159 13159-1052 1
COVER,RESERVOIR TANK 14091 14091-0352 1
COVER,HEAT GUARD,F.S.BLACK 14091A 14091-0916-18R 1
PAD,RR MASTER CYLINDER 39156 39156-0057 1
ROD-ASSY-BRAKE 43010 43010-0004 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0042 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
RESERVOIR,RR MASTER CYLINDER 43078 43078-1178 1
HOSE-BRAKE,RR MASTER CYLINDER 43095 43095-0039 1
HOSE-BRAKE,RR 43095A 43095-0169 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
WASHER,CIRCRIP 92022 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
CLAMP,HOSE 92037A 92037-1827 1
PIN,8X16 92043 92043-1013 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,SOCKET,6X12 92151 92151-1940 1
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,FLANGED,6X20 92153A 92153-0673 1
CLAMP,DIA=20 92171 92171-0081 3
CLAMP,BRAKE HOSE 92171A 92171-0316 2
WASHER,6.5X14.5X1.5 92200 92200-3775 1
