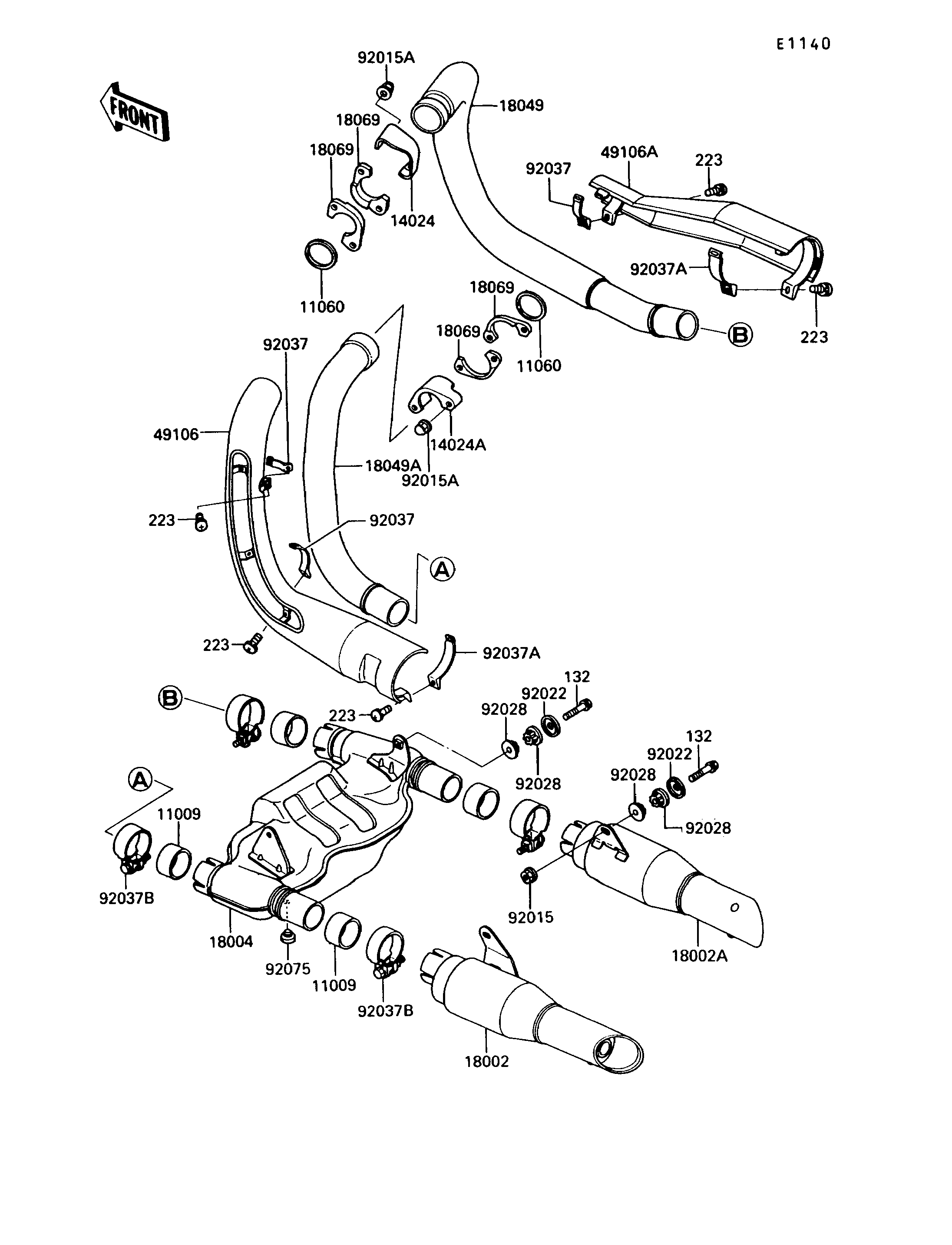

1991 Vulcan 750 - Muffler

DOWNLOAD PDF
SELECT A NEW PART
132
132
223
223
223
223
223
11009
11009
11060
11060
14024
14024A
18002
18002A
18004
18049
18049A
18069
18069
18069
18069
49106
49106A
92015
92015A
92015A
92022
92022
92028
92028
92028
92028
92037
92037
92037
92037A
92037A
92037B
92037B
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132E0840 4
SCREW-PAN-WS-CROS 223 223X0620 5
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1666 4
GASKET,EXHAUST PIPE 11060 11060-1119 2
COVER,FR 14024 14024-1091 1
COVER,RR 14024A 14024-1092 1
BODY-COMP-MUFFLER,LH 18002 18002-1701 1
BODY-COMP-MUFFLER,RH 18002A 18002-1702 1
CHAMBER-PREMUFFLER 18004 18004-1055 1
PIPE-EXHAUST,FR 18049 18049-1373 1
PIPE-EXHAUST,RR 18049A 18049-1374 1
HOLDER-EXHAUST PIPE 18069 18069-1061 4
COVER-MUFFLER,LH 49106 49106-1053 1
COVER-MUFFLER,RH 49106A 49106-1054 1
NUT,FLANGED,8MM 92015 92015-1014 2
NUT,CAP,8MM 92015A 92015-1371 4
WASHER,CAP TYPE 92022 92022-1638 4
BUSHING-RUBBER,MUFFLER 92028 92028-1329 8
CLAMP,EXHAUST PIPE COVER 92037 92037-1613 3
CLAMP,MUFFLER COVER 92037A 92037-1615 2
CLAMP,52MM 92037B 92037-1633 4
DAMPER 92075 92075-005 1
