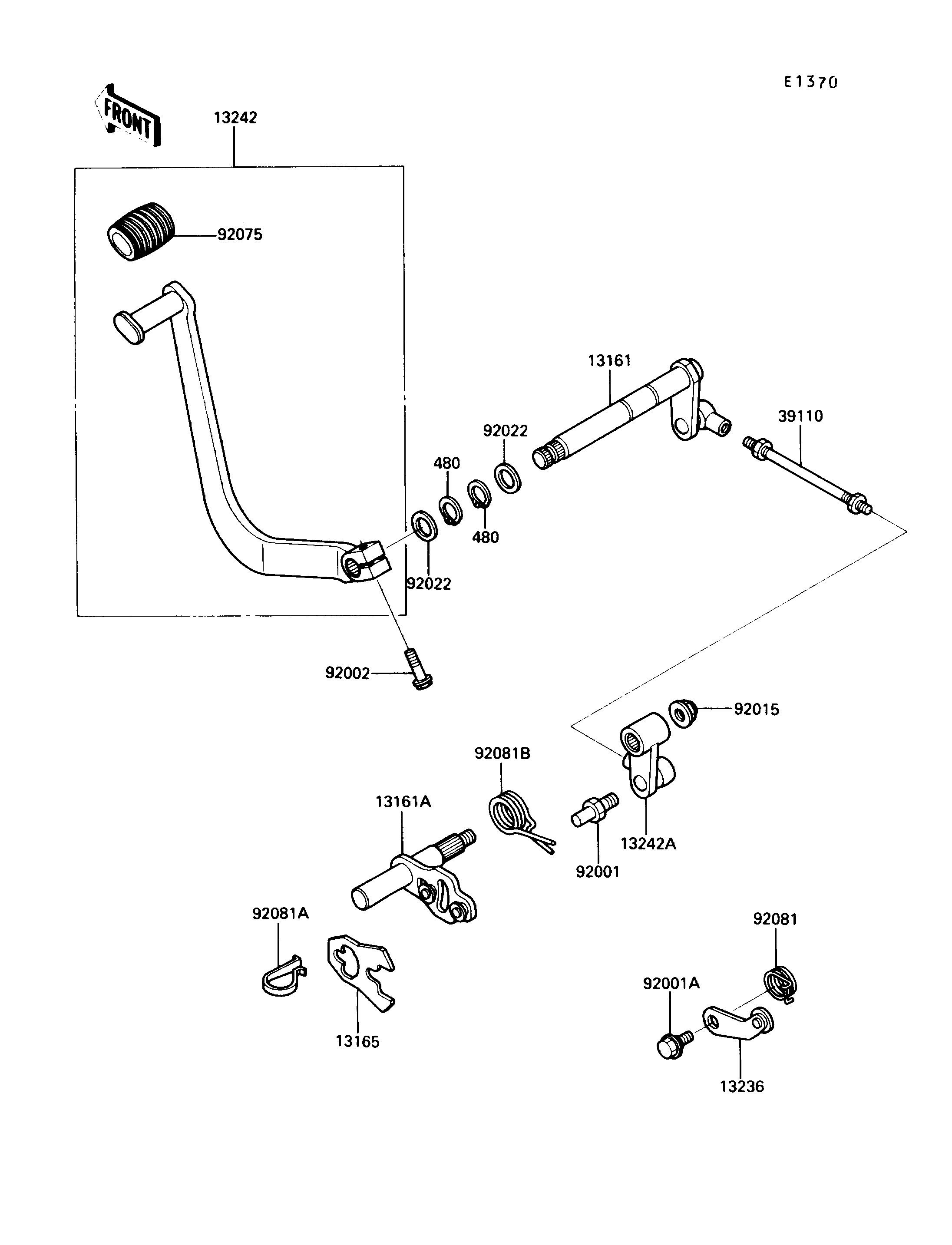

1991 Vulcan 750 - Gear Change Mechanism
480
480
13161
13161A
13165
13236
13242
13242A
39110
92001
92001A
92002
92015
92022
92022
92075
92081
92081A
92081B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CIRCLIP-TYPE-C,13MM | 480 | 480J1300 | 2 | ||
| LEVER-COMP-CHANGE SHAFT | 13161 | 13161-1119 | 1 | ||
| LEVER-COMP-CHANGE SHAFT | 13161A | 13161-1120 | 1 | ||
| PAWL | 13165 | 13165-1120 | 1 | ||
| LEVER-COMP,POSITION | 13236 | 13236-1126 | 1 | ||
| LEVER-ASSY-CHANGE,PEDAL | 13242 | 13242-1185 | 1 | ||
| LEVER-ASSY-CHANGE | 13242A | 13242-1188 | 1 | ||
| ROD-ASSY-TIE | 39110 | 39110-1073 | 1 | ||
| BOLT,RETURN SPRING | 92001 | 92001-1455 | 1 | ||
| BOLT,GEAR CHANGE LEVER | 92001A | 92001-1715 | 1 | ||
| BOLT,6X20 | 92002 | 92002-1237 | 1 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1397 | 1 | ||
| WASHER,13.2X20X0.5 | 92022 | 92022-1224 | 2 | ||
| DAMPER,CHANGE PEDAL | 92075 | 92075-1585 | 1 | ||
| SPRING,RETURN | 92081 | 92081-1777 | 1 | ||
| SPRING,CHANGE LEVER | 92081A | 92081-1829 | 1 | ||
| SPRING,CHANGE PEDAL RETURN | 92081B | 92081-1869 | 1 |
