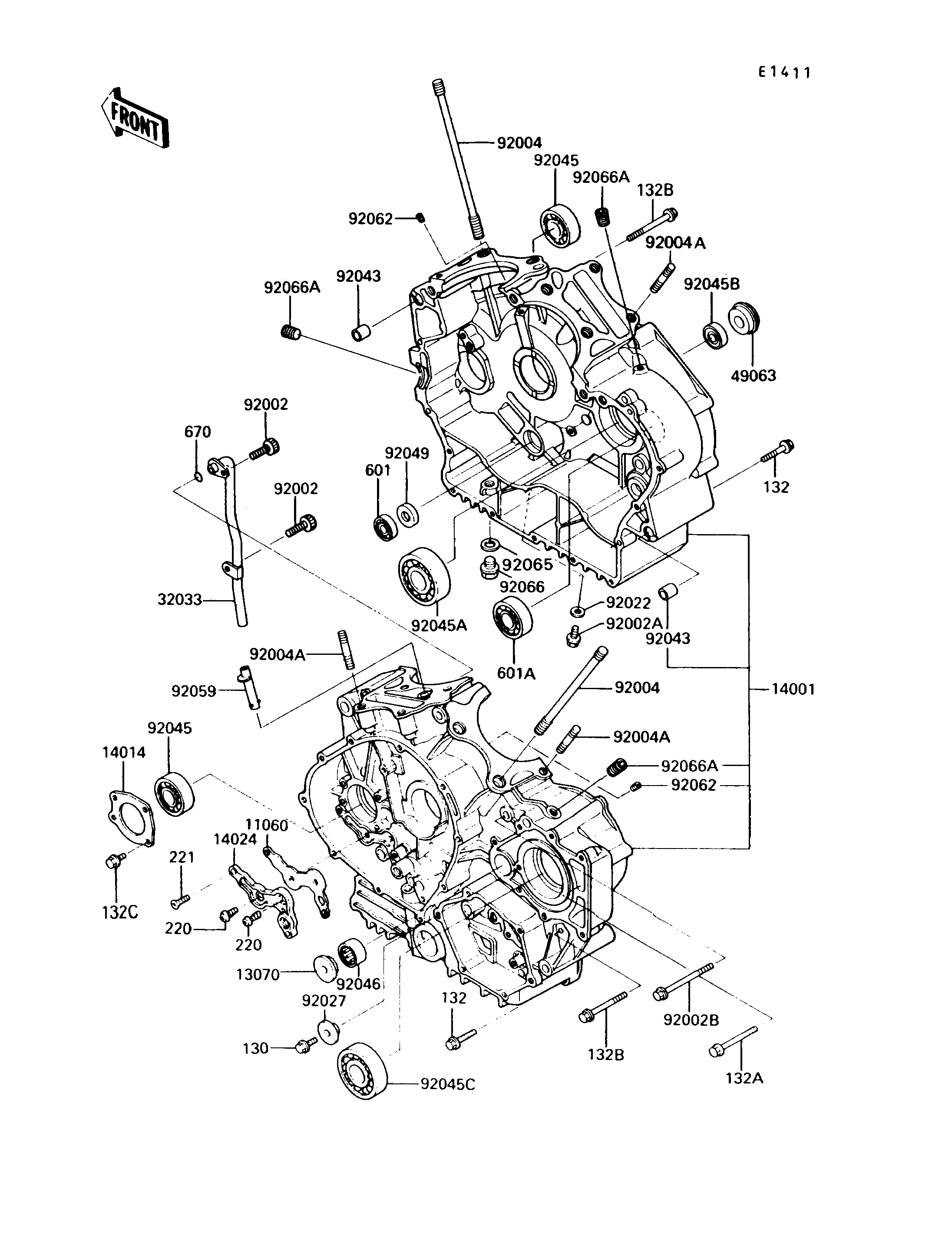

1991 Vulcan 750 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
130
132
132
132A
132B
132B
132C
220
220
221
601
601A
670
11060
13070
14001
14014
14024
32033
49063
92002
92002
92002A
92002B
92004
92004
92004A
92004A
92004A
92022
92027
92043
92043
92045
92045
92045A
92045B
92045C
92046
92049
92059
92062
92062
92065
92066
92066A
92066A
92066A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130P0616 1
BOLT-FLANGED-SMALL 132 132E0630 8
BOLT-FLANGED-SMALL 132A 132E0640 1
BOLT-FLANGED-SMALL 132B 132E0660 3
BOLT-FLANGED-SMALL 132C 132G0616 4
SCREW-PAN-CROS,6X16 220 220B0616 2
SCREW-CSK-CROS,6X20 221 221B0620 1
BEARING-BALL 601 601A6001 1
BEARING-BALL 601A 601A6204Z 1
O RING,8MM 670 670B1508 1
GASKET,OIL LINE COVER 11060 11060-1087 1
GUIDE 13070 13070-1127 1
SET-CRANKCASE 14001 14001-5205 1
PLATE-POSITION 14014 14014-1068 1
COVER,OIL LINE 14024 14024-1074 1
PIPE,BREATHER 32033 32033-1649 1
SEAL-MECHANICAL 49063 49063-1052 1
BOLT,SOCKET,6X14 92002 92002-1592 2
BOLT,6X10 92002A 92002-1628 1
BOLT,10X80 92002B 92002-1629 3
STUD,10X163 92004 92004-1140 8
STUD,8X28.5 92004A 92004-1142 6
WASHER,6.1X12X1 92022 92022-077 1
COLLAR 92027 92027-1844 1
PIN,11X14X12.3 92043 92043-1266 2
BEARING-BALL,TMB204 JR 92045 92045-1041 2
BEARING-BALL,TMB305 92045A 92045-1137 1
BEARING-BALL,6001LLU 92045B 92045-1151 1
BEARING-BALL,TMB305X3 92045C 92045-1167 1
BEARING-NEEDLE,HK2016 92046 92046-1054 1
SEAL-OIL,AC037AE0 92049 92049-1228 1
TUBE 92059 92059-1620 1
NOZZLE,BLACK 92062 92062-011 4
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
PLUG,OIL LINE,1/8X7 92066A 92066-1227 4
