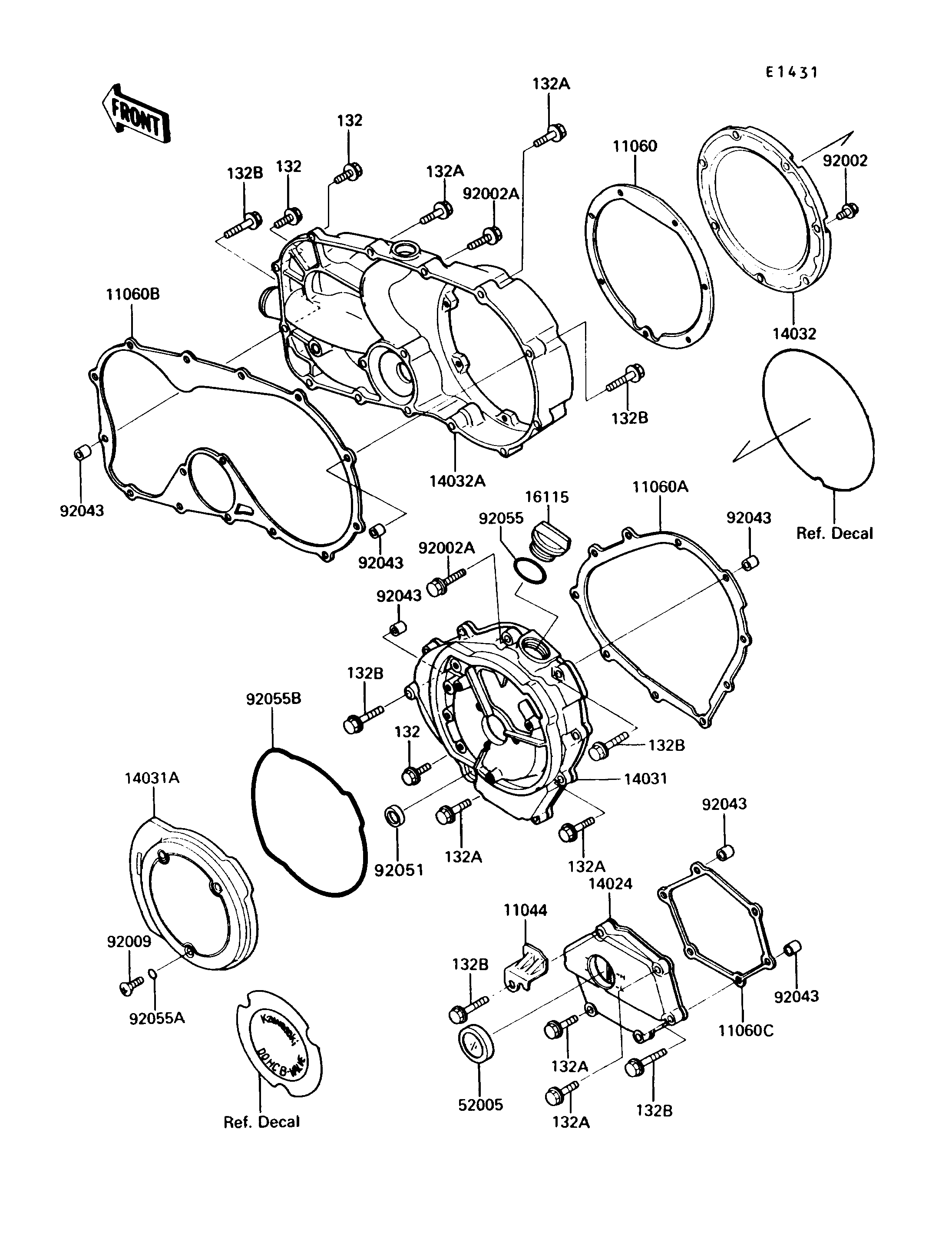

1991 Vulcan 750 - Engine Cover

DOWNLOAD PDF
SELECT A NEW PART
132
132
132
132A
132A
132A
132A
132A
132A
132B
132B
132B
132B
132B
132B
11044
11060
11060A
11060B
11060C
14024
14031
14031A
14032
14032A
16115
52005
92002
92002A
92002A
92009
92043
92043
92043
92043
92043
92043
92051
92055
92055A
92055B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132E0625 5
BOLT-FLANGED-SMALL 132A 132E0630 16
BOLT-FLANGED-SMALL 132B 132E0640 8
BRACKET,LEAD WIRE 11044 11044-1474 1
GASKET,CLUTCH OUTSIDE COVER 11060 11060-1088 1
GASKET,GENERATOR COVER 11060A 11060-1089 1
GASKET,CLUTCH COVER 11060B 11060-1090 1
GASKET,TRANSMISSION COVER 11060C 11060-1091 1
COVER,TRANSMISSION 14024 14024-1175 1
COVER-GENERATOR 14031 14031-1187 1
COVER-GENERATOR,OUTSIDE 14031A 14031-1188 1
COVER-CLUTCH,OUTSIDE 14032 14032-1207 1
COVER-CLUTCH 14032A 14032-1211 1
CAP-OIL FILLER 16115 16115-1055 1
GAUGE,OIL LEVEL 52005 52005-1009 1
BOLT,6X16 92002 92002-1439 7
BOLT,6X30 92002A 92002-1622 2
SCREW,6X20 92009 92009-1156 3
PIN,6.2X8X14 92043 92043-1263 6
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O,31.5X2.6 92055 92055-049 1
RING-O,5.28X1.78 92055A 92055-109 3
RING-O,GENERATOR COVER 92055B 92055-1319 1
