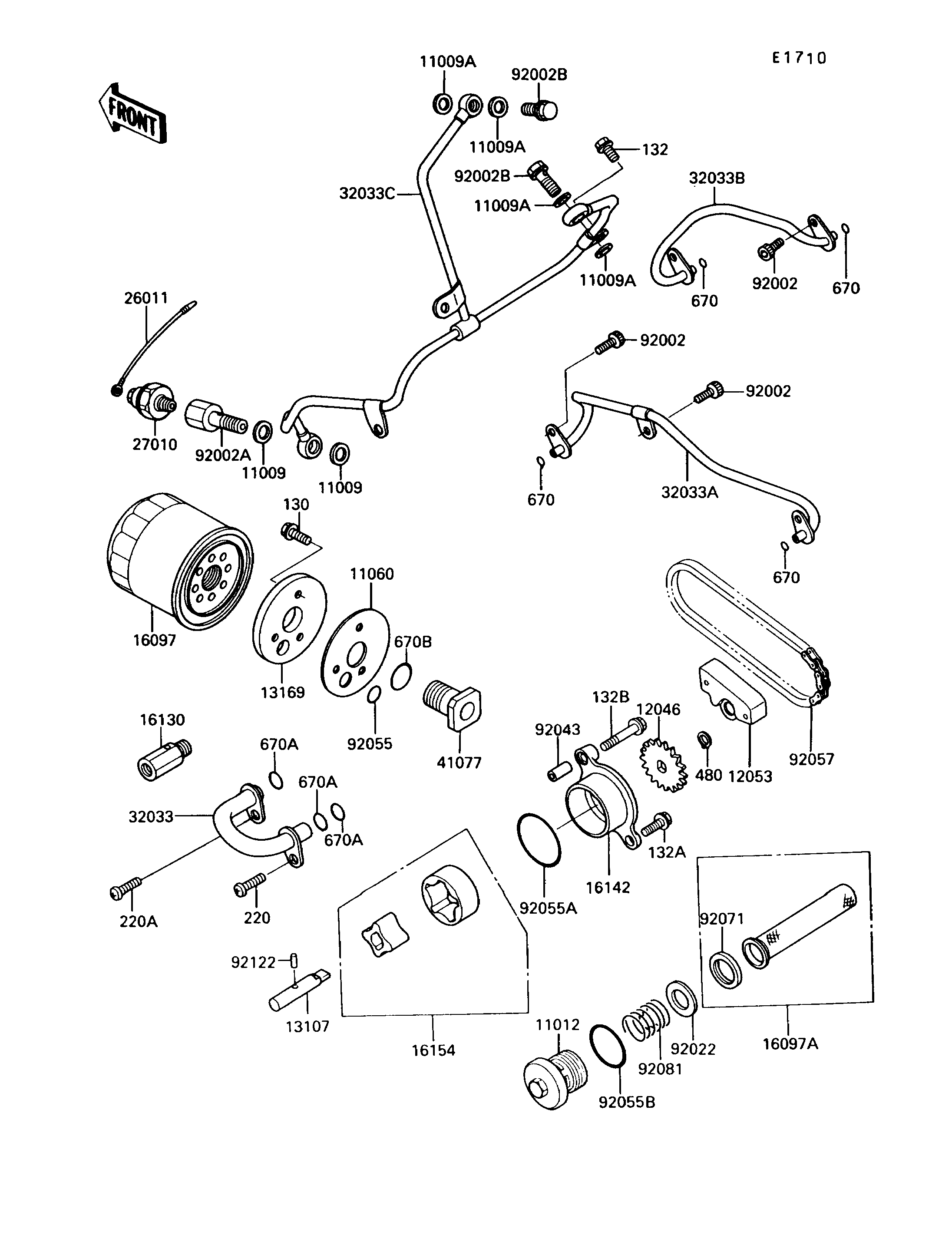

1991 Vulcan 750 - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132
132A
132A
132B
132B
220
220
220A
220A
480
480
670
670
670
670
670
670
670
670
11009
11009
11009
11009
11009A
11009A
11009A
11009A
11009A
11009A
11009A
11009A
11012
11012
11060
11060
12046
12046
12053
12053
13107
13107
13169
13169
16097
16097
16097A
16097A
16130
16130
16142
16142
16154
16154
26011
26011
27010
27010
32033
32033
32033A
32033A
32033B
32033B
32033C
32033C
41077
41077
92002
92002
92002
92002
92002
92002
92002A
92002A
92002B
92002B
92002B
92002B
92022
92022
92043
92043
92055
92055
92055A
92055A
92055B
92055B
92057
92057
92071
92071
92081
92081
92122
92122
670A
670A
670A
670A
670A
670A
670B
670B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130P0514 3
BOLT-FLANGED-SMALL 132 132E0612 1
BOLT-FLANGED-SMALL 132A 132G0616 1
BOLT-FLANGED-SMALL 132B 132G0630 1
SCREW-PAN-CROS,6X16 220 220B0616 1
SCREW-PAN-CROS,6X20,WHITE 220A 220B0620 1
CIRCLIP-TYPE-C,11MM 480 480J1100 1
O RING,6MM 670 670D1506 4
GASKET,10X14.5X1.5 11009 11009-1105 2
GASKET,OIL PIPE,8.2X14X1.0 11009A 11009-1344 4
CAP,OIL FILTER 11012 11012-1483 1
GASKET,OIL FILTER 11060 11060-1092 1
SPROCKET,OIL PUMP,19T 12046 12046-1079 1
GUIDE-CHAIN 12053 12053-1187 1
SHAFT,OIL PUMP 13107 13107-1131 1
PLATE,OIL FILTER 13169 13169-1921 1
FILTER-ASSY-OIL 16097 16097-1054 1
FILTER-ASSY-OIL 16097A 16097-1058 1
VALVE-ASSY-RELIEF 16130 16130-1001 1
COVER-PUMP,OIL 16142 16142-1061 1
ROTOR-PUMP 16154 16154-1056 1
WIRE-LEAD 26011 26011-1295 1
SWITCH,OIL PRESSURE 27010 27010-1155 1
PIPE,OIL,PUMP-FILTER 32033 32033-1479 1
PIPE,OIL,FILTER-TRANSMISSION 32033A 32033-1741 1
PIPE,OIL,FILTER-CRANKSHAFT 32033B 32033-1742 1
PIPE,FILTER-HEAD 32033C 32033-1863 1
ADAPTER,OIL FILTER 41077 41077-1052 1
BOLT,SOCKET,6X14 92002 92002-1592 5
BOLT,OIL SWITCH 92002A 92002-1617 1
BOLT,BANJO,8X20 92002B 92002-1618 2
WASHER,16.5X28X0.5 92022 92022-169 1
PIN,6.2X8X14 92043 92043-1263 1
RING-O,13X1.9 92055 92055-1021 1
RING-O,44.7X2.4 92055A 92055-1279 1
RING-O,35.2X2.4 92055B 92055-1358 1
CHAIN,PUMP,BS25HX50L 92057 92057-1183 1
GROMMET,OIL STRAINER 92071 92071-100 1
SPRING,OIL FILTER 92081 92081-1862 1
ROLLER,3X15.8 92122 92122-1126 1
O RING,12MM 670A 670D2012 3
O RING,20MM 670B 670D2020 1
