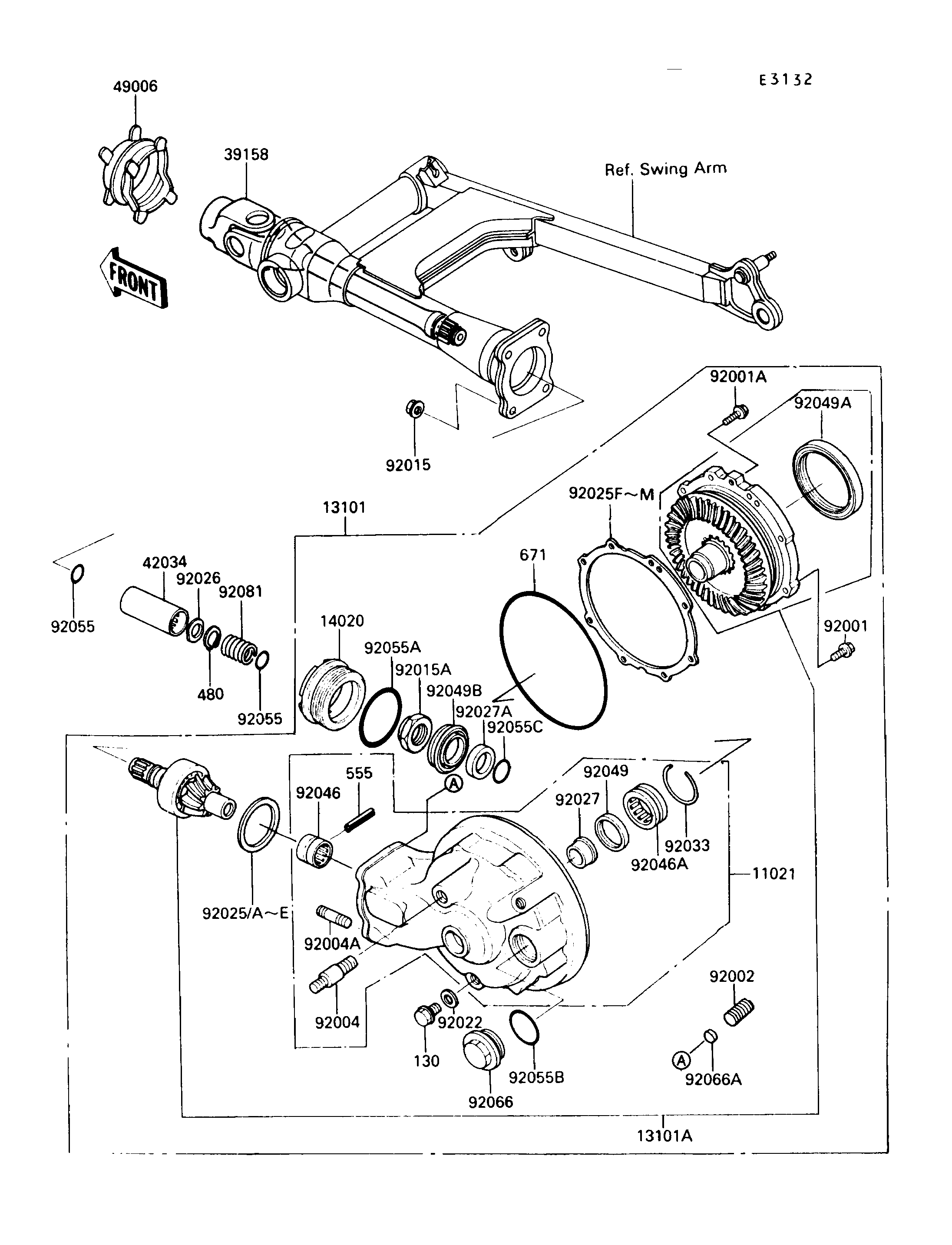

1991 Vulcan 750 - Drive Shaft/Final Gear

DOWNLOAD PDF
SELECT A NEW PART
11021
11021
13101
13101
13101A
13101A
14020
14020
39158
39158
42034
42034
49006
49006
92001
92001
92001A
92001A
92002
92002
92004
92004
92004A
92004A
92015
92015
92015A
92015A
92022
92022
92025
92025
92025A
92025A
92025F
92025F
92025G
92025G
92025H
92025H
92025I
92025I
92025J
92025J
92025K
92025K
92025L
92025L
92025M
92025M
92026
92026
92027
92027
92027A
92027A
92033
92033
92046
92046
92046A
92046A
92049
92049
92049A
92049A
92049B
92049B
92055
92055
92055
92055
92055A
92055A
130
130
480
480
555
555
671
671
92055B
92055B
92055C
92055C
92066
92066
92066A
92066A
92081
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ASSY,FINAL GEAR,M.SILVER 11021 11021-1066-7J 1
GEAR-ASSY,FINAL,M.SILVER 13101 13101-1124-7J 1
GEAR-ASSY,FINAL BEVEL 13101A 13101-5056 1
RETAINER 14020 14020-1055 1
SHAFT-ASSY-DRIVE 39158 39158-1052 1
COUPLING,DRIVE SHAFT,OUTER 42034 42034-1035 1
BOOT,PROPELLER SHAFT 49006 49006-1173 1
BOLT,FLANGED,8X28 92001 92001-1095 6
BOLT,FLANGED,10X23 92001A 92001-1778 2
SCREW-SET-SOCKET,8X18 92002 92002-1836 1
STUD,RR SHOCKABSORBER 92004 92004-1047 1
STUD,8X20 92004A 92004-1159 4
NUT,FLANGED,8MM,BLACK 92015 92015-1183 4
NUT,25MM 92015A 92015-1241 1
WASHER,8.2X16X1 92022 92022-1086 1
SHIM,50X61X0.10 92025 92025-1519 AR
SHIM,50X61X0.15 92025A 92025-1520 AR
SHIM,T=0.15 92025F 92025-1525 AR
SHIM,T=0.50 92025G 92025-1526 AR
SHIM,T=0.60 92025H 92025-1527 AR
SHIM,T=0.70 92025I 92025-1528 AR
SHIM,T=0.80 92025J 92025-1529 AR
SHIM,T=0.90 92025K 92025-1530 AR
SHIM,T=1.00 92025L 92025-1531 AR
SHIM,T=1.20 92025M 92025-1532 AR
SPACER,DRIVE SHAFT 92026 92026-1129 1
COLLAR 92027 92027-1412 1
COLLAR,25X35X11 92027A 92027-1972 1
RING-SNAP,50.4MM 92033 92033-1187 1
BEARING-NEEDLE,NK22/20R 92046 92046-1131 1
BEARING-NEEDLE,NK35/20R 92046A 92046-1132 1
SEAL-OIL,S3141 5.5 92049 92049-1210 1
SEAL-OIL,S75 9510 92049A 92049-1212 1
SEAL-OIL 92049B 92049-1234 1
RING-O,ID=18.64 92055 92055-1044 2
RING-O,61.6MM 92055A 92055-1280 1
BOLT-FLANGED 130 130X0812 1
CIRCLIP-TYPE-C,16MM 480 480J1600 1
PIN-SPRING 555 555A0428 1
O RING 671 671B25145 1
RING-O,35.8MM 92055B 92055-1281 1
RING-O,19.8X1.9 92055C 92055-1332 1
PLUG,OIL FILLER CAP,M.SILVER 92066 92066-1006-7J 1
PLUG,6.2X3 92066A 92066-1272 1
SPRING,DRIVE SHAFT 92081 92081-1717 1
SHIM,50X61X0.20 92025B 92025-1521 AR
SHIM,50X61X0.30 92025C 92025-1522 AR
SHIM,50X61X0.40 92025D 92025-1523 AR
SHIM,50X61X0.50 92025E 92025-1524 AR
