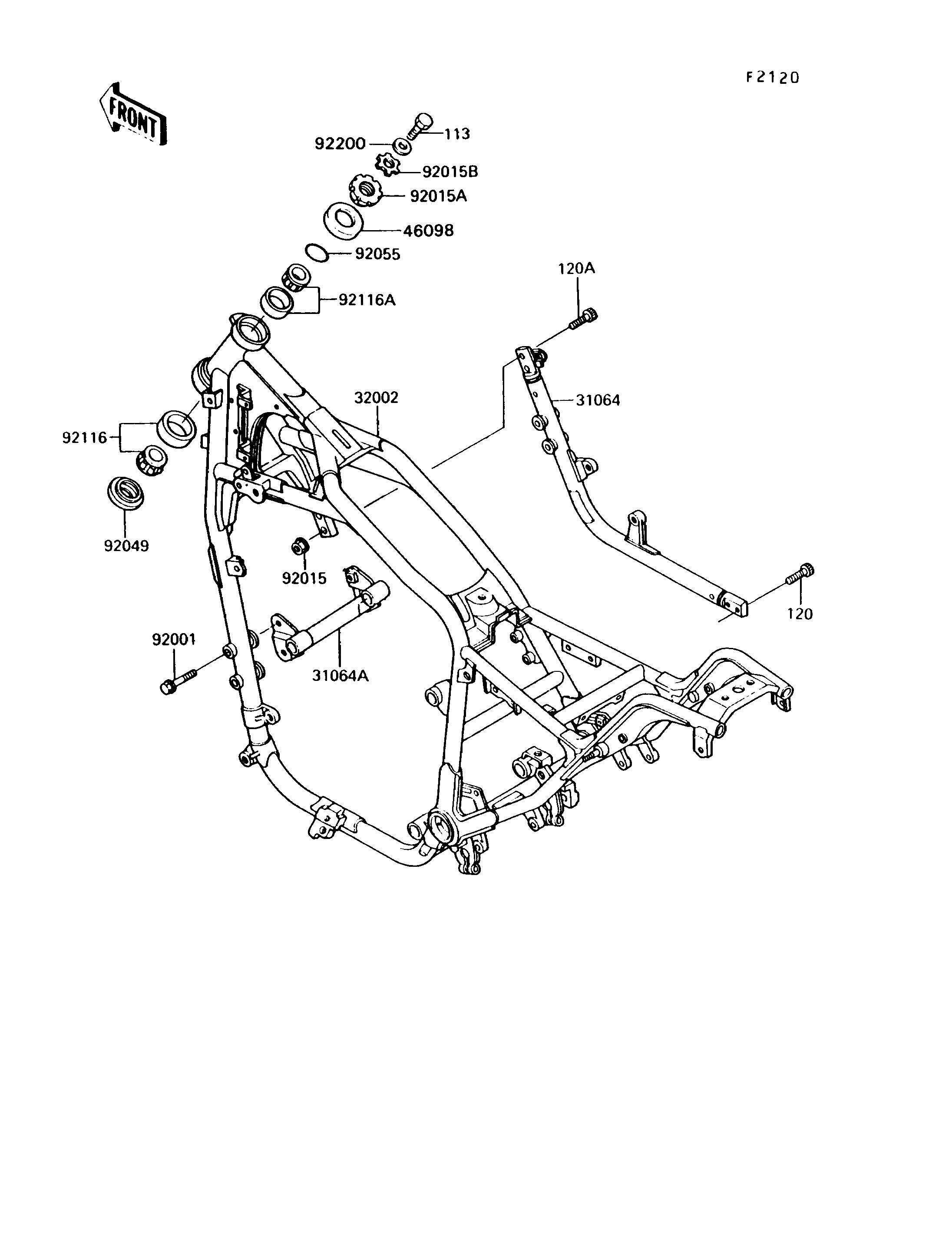

113
120
120A
31064
31064A
32002
46098
92001
92015
92015A
92015B
92049
92055
92116
92116A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-FINE,14X25 113 113G1425 1
BOLT-SOCKET 120 120S1020 2
BOLT-SOCKET,10X30 120A 120S1030 2
PIPE-COMP,SUB FRAME 31064 31064-1058 1
PIPE-COMP 31064A 31064-1059 1
FRAME-COMP 32002 32002-1783 1
CAP,STEERING STEM 46098 46098-017 1
BOLT,FLANGED,8X60,BLACK 92001 92001-1615 4
NUT,10MM 92015 92015-1021 2
NUT,25MM,T=10 92015A 92015-1377 1
NUT,25MM,T=6 92015B 92015-1378 1
SEAL-OIL,XMHE36X52X4J 92049 92049-1162 1
RING-O,ID=24.5 92055 92055-1459 1
BEARING-ROLLER,HR320/28XJ 92116 92116-1009 1
BEARING-ROLLER,HI-CAP32005JR 92116A 92116-1058 1
WASHER 92200 92200-1140 1
