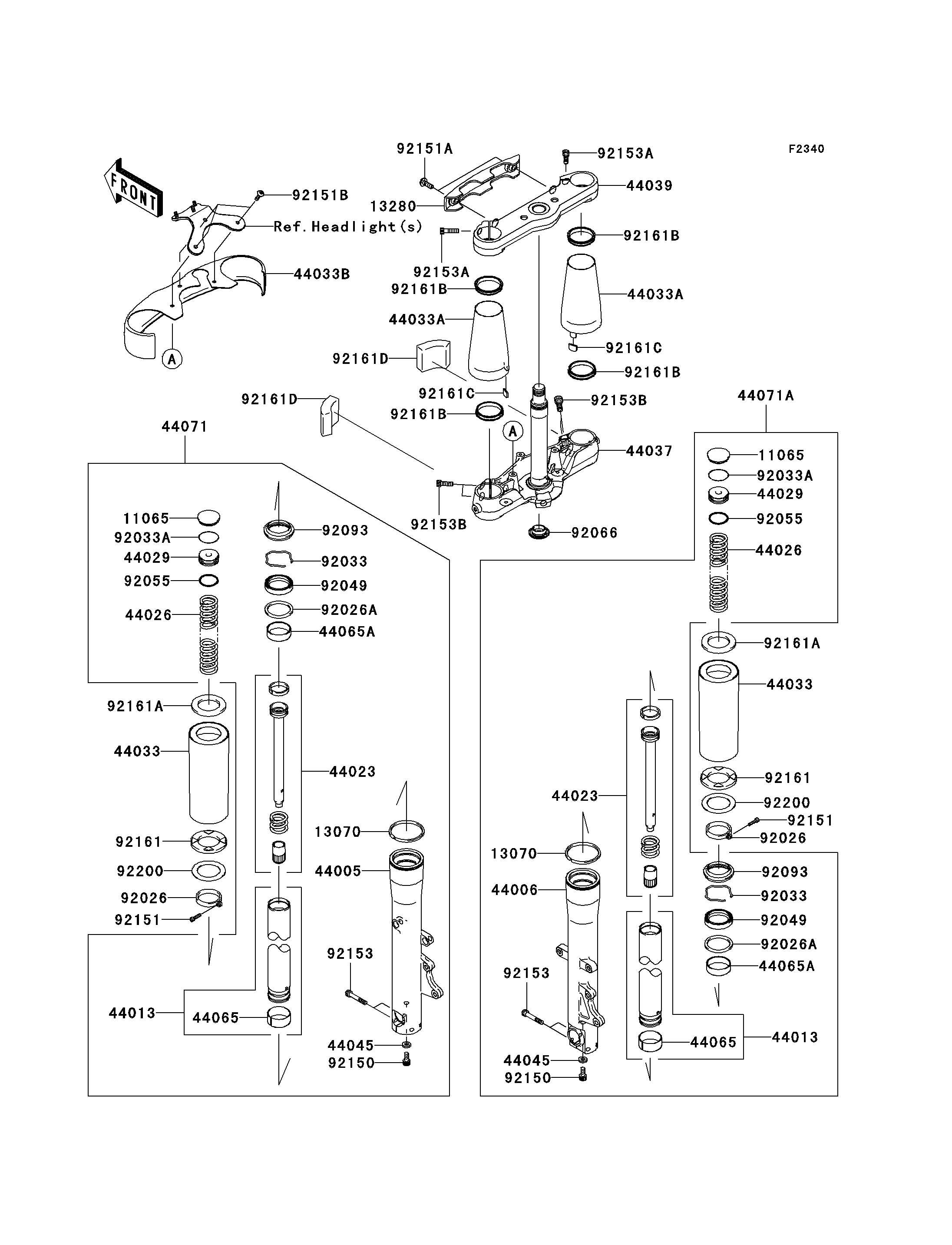

2008 Vulcan® 2000 Classic - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
13070
13070
13280
44005
44006
44013
44013
44023
44023
44026
44026
44029
44029
44033
44033
44033A
44033A
44033B
44037
44039
44045
44045
44065
44065
44065A
44065A
44071
44071A
92026
92026
92026A
92026A
92033
92033
92033A
92033A
92049
92049
92055
92055
92066
92093
92093
92150
92150
92151
92151
92151A
92151B
92153
92153
92153A
92153A
92153B
92153B
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92161C
92161C
92161D
92161D
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FORK 11065 11065-0146 2
GUIDE,CASE 13070 13070-0017 2
HOLDER,UPPER BRACKET 13280 13280-0167 1
PIPE-LEFT FORK OUTER 44005 44005-0008 1
PIPE-RIGHT FORK OUTER 44006 44006-0009 1
PIPE-FORK INNER 44013 44013-0027 2
CYLINDER-SET-FORK 44023 44023-0007 2
SPRING-FRONT FORK 44026 44026-0073 2
SEAT-FORK SPRING 44029 44029-0002 2
COVER-FORK 44033 44033-0019 2
COVER-FORK 44033A 44033-0041 2
COVER-FORK 44033B 44033-0042 1
HOLDER-FORK UNDER 44037 44037-0044 1
HOLDER-FORK UPPER 44039 44039-0042 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
BUSHING-FRONT FORK 44065 44065-0012 2
BUSHING-FRONT FORK 44065A 44065-0013 2
DAMPER-ASSY,FORK,LH 44071 44071-0325 1
DAMPER-ASSY,FORK,RH 44071A 44071-0326 1
SPACER 92026 92026-0050 2
SPACER 92026A 92026-0054 2
RING-SNAP 92033 92033-0026 2
RING-SNAP 92033A 92033-0027 2
SEAL-OIL 92049 92049-0044 2
RING-O 92055 92055-0055 2
PLUG 92066 92066-0032 1
SEAL,FORK OUTER TUBE 92093 92093-0023 2
BOLT,SOCKET,8X18 92150 92150-1432 2
BOLT,SOCKET,4X16 92151 92151-1356 2
BOLT,SOCKET,8X25 92151A 92151-1753 2
BOLT,SOCKET,6X25 92151B 92151-1945 3
BOLT 92153 92153-0499 4
BOLT,SOCKET,8X30 92153A 92153-0500 2
BOLT,SOCKET 92153B 92153-0711 4
DAMPER 92161 92161-0086 2
DAMPER 92161A 92161-0087 2
DAMPER,FORK COVER 92161B 92161-0323 4
DAMPER 92161C 92161-0383 2
DAMPER 92161D 92161-0389 2
WASHER 92200 92200-0132 2
