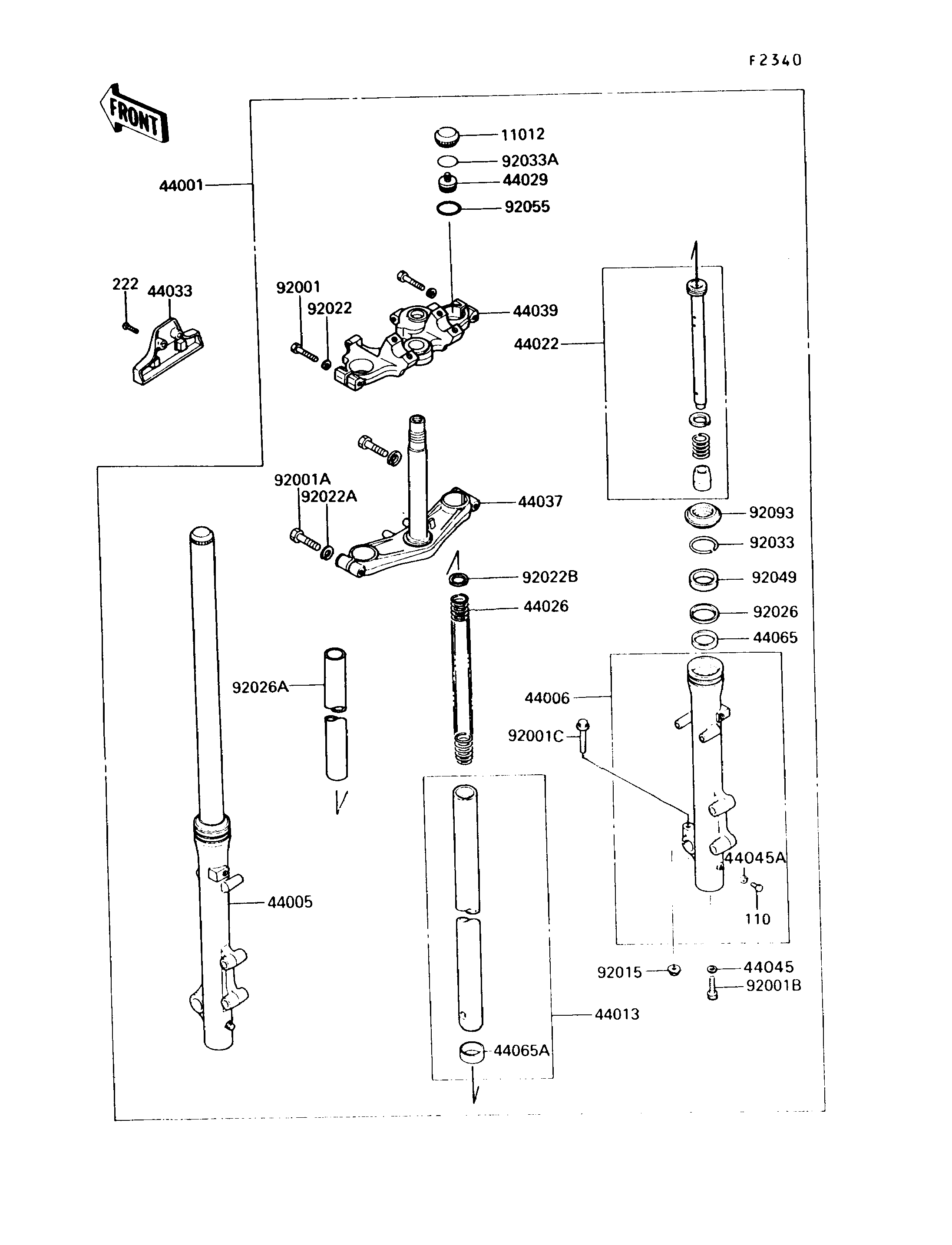

1991 Vulcan 750 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
110
222
11012
44001
44005
44006
44013
44022
44026
44029
44033
44037
44039
44045
44045A
44065
44065
44065A
92001
92001A
92001B
92001C
92015
92022
92022A
92022B
92026
92026A
92033
92033A
92049
92055
92093
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,6X8 110 110B0608 2
SCREW-CSK-RD-CROS 222 222C0520 2
CAP,FORK TOP 11012 11012-1696 2
FORK-FRONT 44001 44001-1723 1
PIPE-LEFT FORK OUTER 44005 44005-1231 1
PIPE-RIGHT FORK OUTER 44006 44006-1231 1
PIPE-FORK INNER 44013 44013-1230 2
CYLINDER-FORK 44022 44022-1180 2
SPRING-FRONT FORK,K=0.5 44026 44026-1301 2
SEAT-FORK SPRING 44029 44029-1135 2
COVER-FORK 44033 44033-1166 1
HOLDER-FORK UNDER 44037 44037-1175 1
HOLDER-FORK UPPER 44039 44039-1117 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
GASKET,DRAIN PLUG 44045A 44045-052 2
BUSHING-FRONT FORK 44065 44065-1070 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1071 2
BOLT,8X40 92001 92001-1063 2
BOLT,10X40 92001A 92001-1454 2
BOLT,FORK CYLINDER 92001B 92001-1464 2
BOLT,FLANGED,8X50 92001C 92001-1486 1
NUT,FLANGED,8MM 92015 92015-1055 1
WASHER,SPRING,8MM 92022 92022-1703 2
WASHER,SPRING,10MM 92022A 92022-1704 2
WASHER,SPRING SEAT 92022B 92022-1713 2
SPACER,FORK 92026 92026-1254 2
SPACER,FRONT FORK SPRING 92026A 92026-1255 2
RING-SNAP,FORK 92033 92033-1200 2
RING-SNAP 92033A 92033-1201 2
SEAL-OIL,FORK 92049 92049-1230 2
RING-O,FORK SPRING SEAT 92055 92055-1309 2
SEAL,FORK 92093 92093-1197 2
