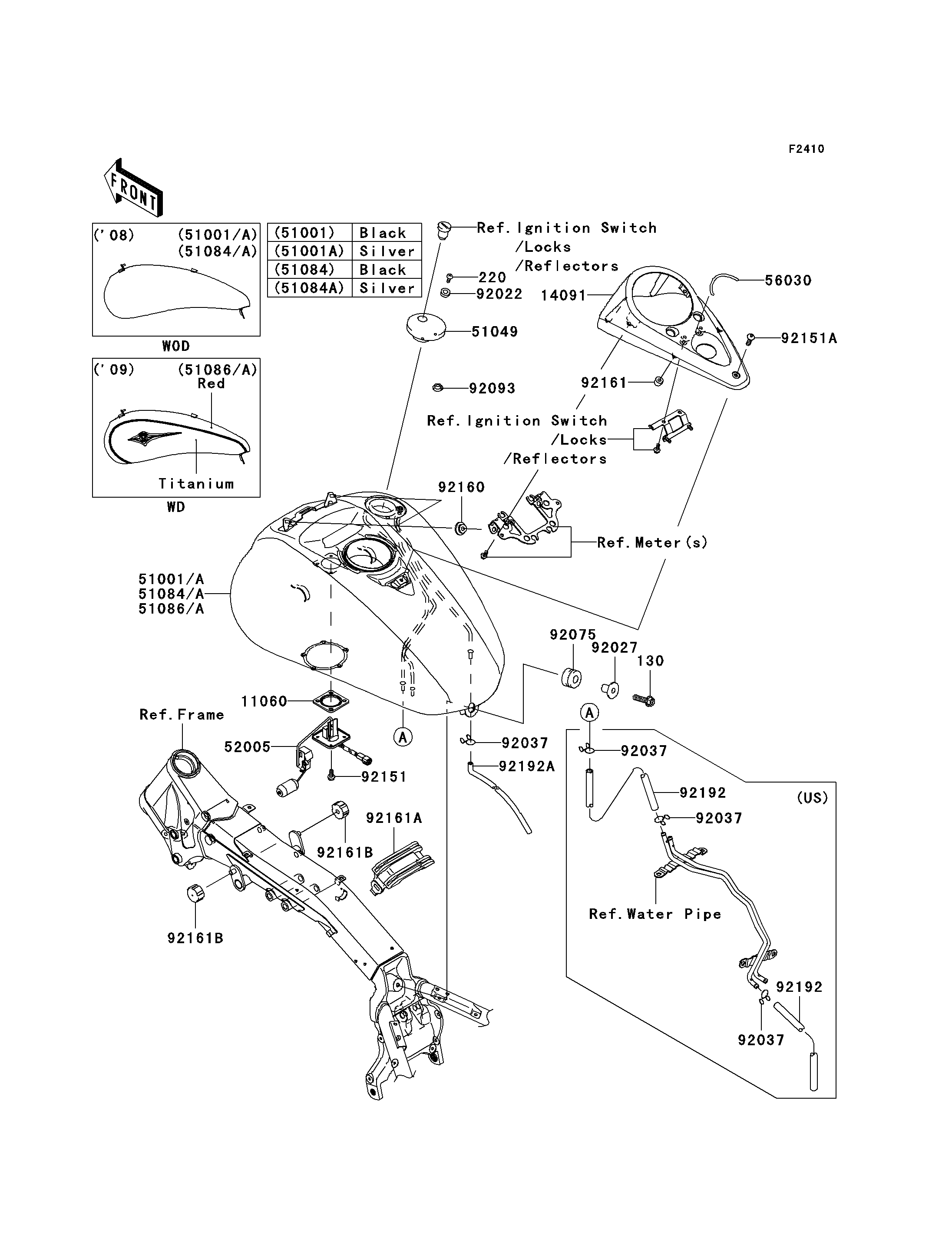

2008 Vulcan® 2000 Classic - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
14091
14091
51049
51049
52005
52005
56030
56030
92022
92022
92027
92027
92075
92075
92093
92093
92151
92151
92151A
92151A
130
130
220
220
92160
92160
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92192A
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11060 11060-1952 1
COVER,METER 14091 14091-0530 1
CAP-TANK,FUEL 51049 51049-0003 1
GAUGE,FUEL 52005 52005-0022 1
LABEL,IGNITION SWITCH 56030 56030-0103 1
WASHER,5.1X10X1.0 92022 92022-1977 2
COLLAR,L=19.3 92027 92027-1780 1
DAMPER 92075 92075-1736 1
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,5X12 92151 92151-1599 4
BOLT,SOCKET,6X12 92151A 92151-1940 1
BOLT-FLANGED,8X30 130 130BA0830 1
SCREW-PAN-CROSS,5X10 220 220AA0510 2
DAMPER 92160 92160-1613 2
DAMPER,METER COVER 92161 92161-0040 4
DAMPER,FUEL TANK,CNT 92161A 92161-0042 1
DAMPER,FUEL TANK 92161B 92161-0293 2
TUBE,DRAIN 92192A 92192-0316 1
TANK-COMP-FUEL,M.D,BLACK 51001 51001-0224-17K 1 US
TANK-COMP-FUEL,A.SILVER 51001A 51001-0224-17M 1 US
TANK-COMP-FUEL,M.D,BLACK 51084 51084-5201-17K 1 CA
TANK-COMP-FUEL,A.SILVER 51084A 51084-5201-17M 1 CA
CLAMP,TUBE 92037 92037-147 1 CA
CLAMP,TUBE 92037 92037-147 4 US
TUBE,BLUE 92192 92192-0037 2 US
