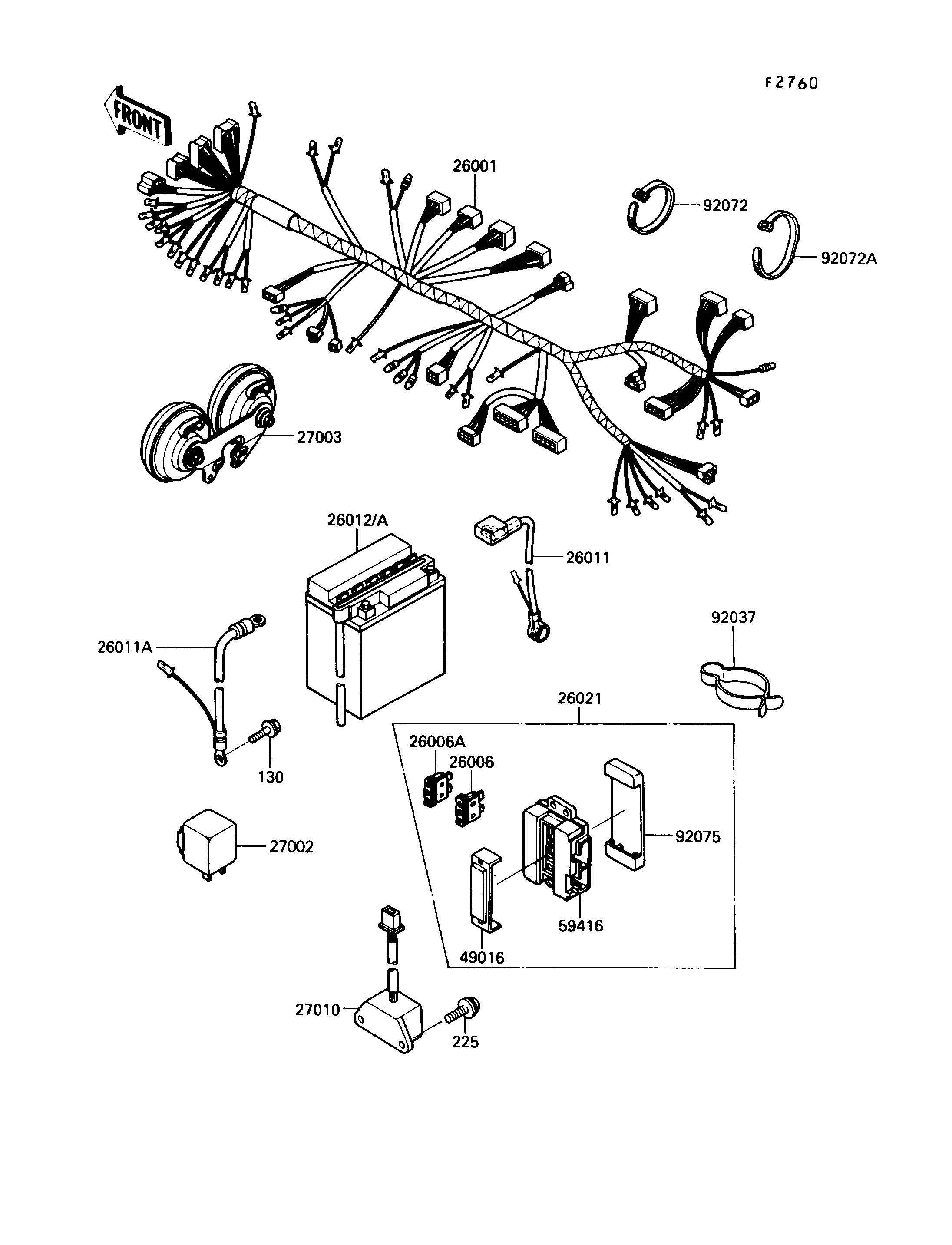

1991 Vulcan 750 - Electrical Equipment
130
225
26001
26006
26006A
26011
26011A
26012A
26021
27002
27003
27010
49016
59416
92037
92072
92072A
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X10 | 130 | 130B0610 | 1 | ||
| SCREW-PAN-WSP-CROS | 225 | 225B0620 | 2 | ||
| HARNESS,MAIN | 26001 | 26001-1961 | 1 | ||
| FUSE,30A-G | 26006 | 26006-1067 | 2 | ||
| FUSE,10A-R | 26006A | 26006-1068 | 4 | ||
| WIRE-LEAD,BATTERY(+) | 26011 | 26011-1310 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011A | 26011-1311 | 1 | ||
| BATTERY,12V 14AH,YB14L-A2 | 26012A | 26012-1238 | 1 | ||
| JUNCTION BOX | 26021 | 26021-1073 | 1 | ||
| RELAY-ASSY,TURN SIGNAL | 27002 | 27002-1060 | 1 | ||
| HORN,DOUBLE | 27003 | 27003-1218 | 1 | ||
| SWITCH,RESERVE LIGHTING | 27010 | 27010-1069 | 1 | ||
| COVER-SEAL,FUSE | 49016 | 49016-1106 | 1 | ||
| CASE-ELECTRIC,FUSE & RELAY BOX | 59416 | 59416-1052 | 1 | ||
| CLAMP,CABLE | 92037 | 92037-093 | 1 | ||
| BAND,L=149 | 92072 | 92072-031 | 4 | ||
| BAND,L=186 | 92072A | 92072-056 | 7 | ||
| DAMPER,JUNCTION BOX | 92075 | 92075-1688 | 1 |
