130
132
32046
32046A
53066
53066A
92150
92161
92161
92161A
92161B
92161B

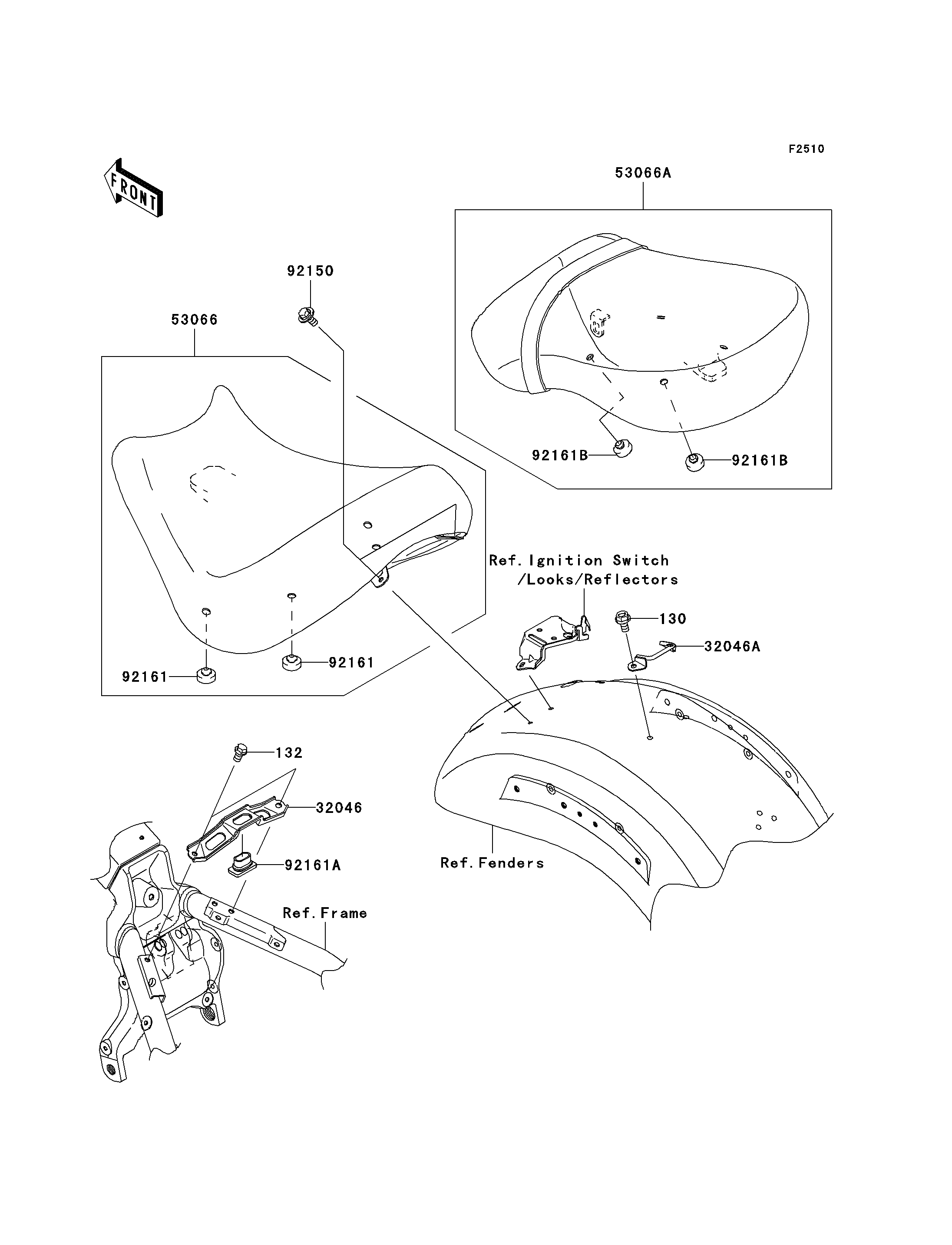

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BB0612 2
BOLT-FLANGED-SMALL,6X10 132 132BB0610 2
BRACKET-SEAT,FR 32046 32046-0034 1
BRACKET-SEAT,RR 32046A 32046-0039 1
SEAT-ASSY,FR,BLACK 53066 53066-0074-MA 1
SEAT-ASSY,RR,W/BAND,BLACK 53066A 53066-0148-MA 1
BOLT,FLANGED,6X14 92150 92150-1689 2
DAMPER,SEAT 92161 92161-0095 4
DAMPER,FRONT SEAT 92161A 92161-0294 1
DAMPER,SEAT 92161B 92161-1065 4
