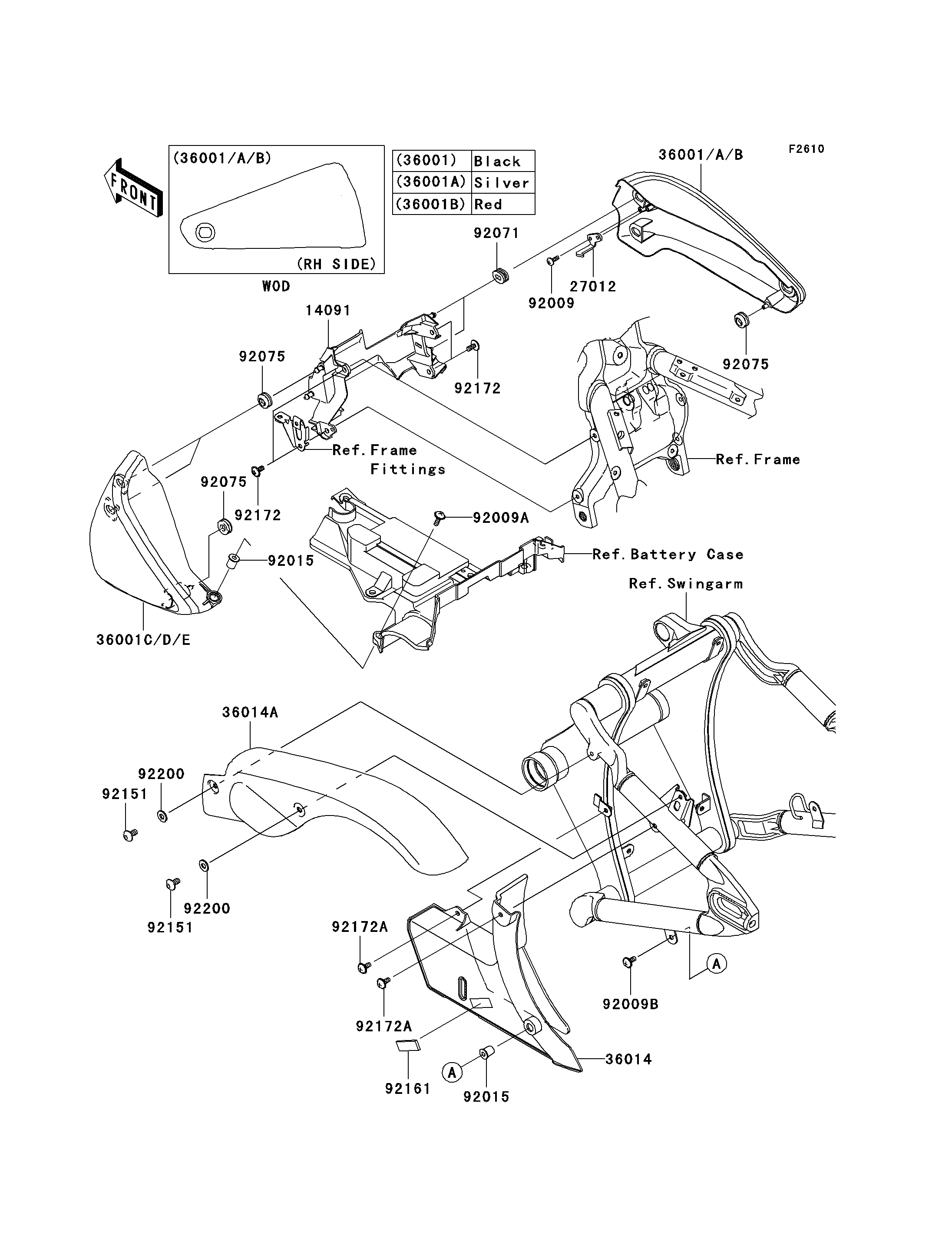

2008 Vulcan® 2000 Classic - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
14091
27012
36001
36001A
36001C
36001D
36014
36014A
92009
92009A
92009B
92015
92015
92071
92075
92075
92075
92151
92151
92161
92172
92172
92172A
92172A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SIDE COVER,CNT 14091 14091-0237 1
HOOK,SIDE COVER,RH 27012 27012-0025 1
COVER-SIDE,RH,M.D,BLACK 36001 36001-0031-17K 1
COVER-SIDE,RH,A.SILVER 36001A 36001-0031-17M 1
COVER-SIDE,LH,M.D,BLACK 36001C 36001-0035-17K 1
COVER-SIDE,LH,A.SILVER 36001D 36001-0035-17M 1
CASE-CHAIN,LWR 36014 36014-0014 1
CASE-CHAIN,UPP 36014A 36014-0026 1
SCREW,TAPPING,4X12,BLACK 92009 92009-1142 2
SCREW,6X25 92009A 92009-1465 1
SCREW,6X14 92009B 92009-1662 1
NUT 92015 92015-1700 2
GROMMET 92071 92071-0011 2
DAMPER 92075 92075-1067 4
BOLT,SOCKET,6X12 92151 92151-1940 2
DAMPER 92161 92161-0124 1
SCREW,6X14 92172 92172-0004 4
SCREW,6X14 92172A 92172-0140 2
WASHER,6.5X14.5X1.5 92200 92200-3775 2
