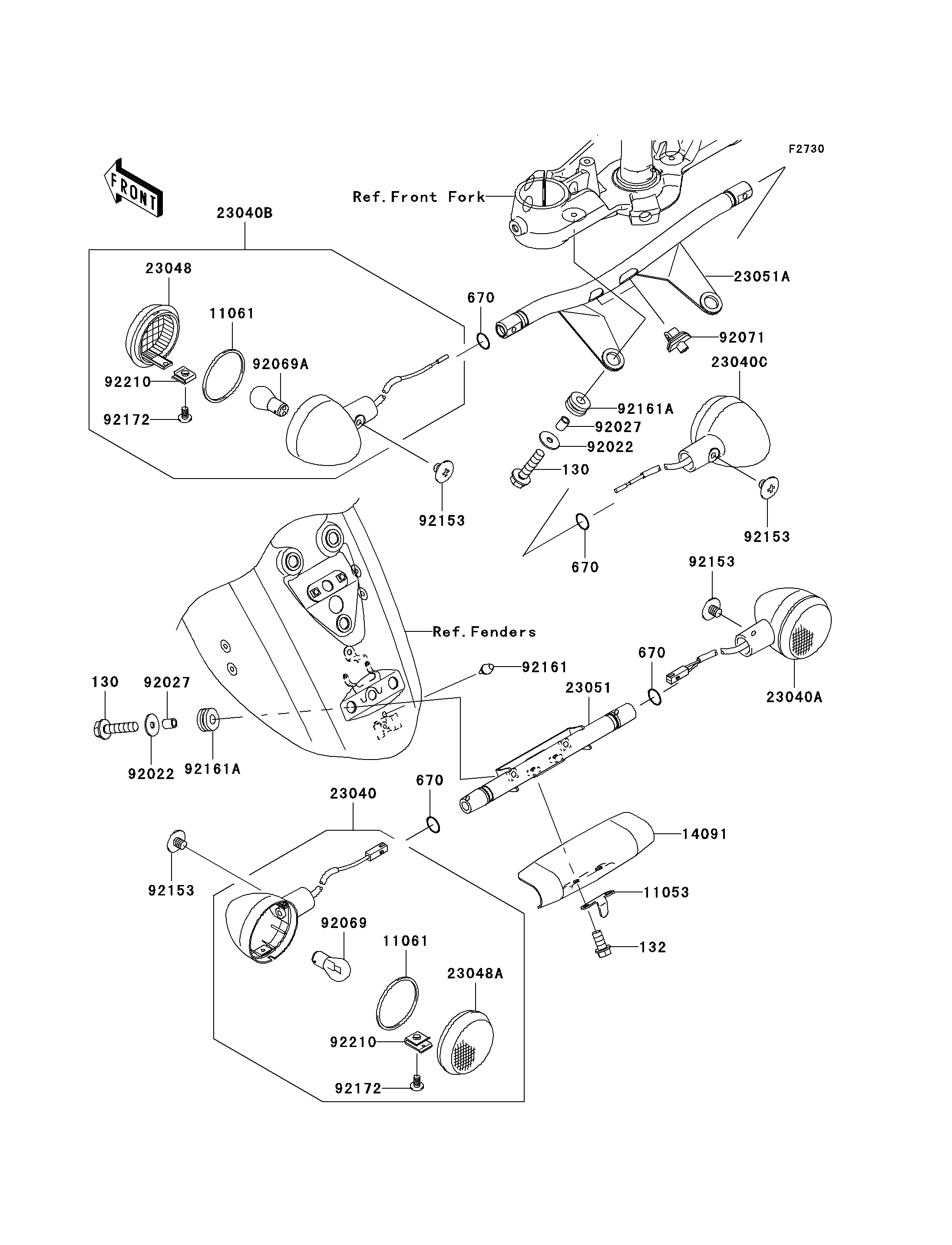

2008 Vulcan® 2000 Classic - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
670
670
670
670
11053
11061
11061
14091
23040
23040A
23040B
23040C
23048
23048A
23051
23051A
92022
92022
92027
92027
92069
92069A
92071
92153
92153
92153
92153
92161
92161A
92161A
92172
92172
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BB0625 4
BOLT-FLANGED-SMALL,6X12 132 132BB0612 2
O RING,16MM 670 670B2016 4
BRACKET,REAR SIGNAL LAMP 11053 11053-0929 1
GASKET,SIGNAL LAMP 11061 11061-0005 4
COVER,REAR SIGNAL LAMP 14091 14091-1572 1
LAMP-SIGNAL,RR,LH 23040 23040-0036 1
LAMP-SIGNAL,RR,RH 23040A 23040-0037 1
LAMP-SIGNAL,FR,LH 23040B 23040-0061 1
LAMP-SIGNAL,FR,RH 23040C 23040-0062 1
LENS-SIGNAL LAMP 23048 23048-0001 2
LENS-SIGNAL LAMP 23048A 23048-0002 2
BRACKET-SIGNAL LAMP,RR 23051 23051-0002 1
BRACKET-SIGNAL LAMP,FR 23051A 23051-0014 1
WASHER,7X24X1.6 92022 92022-1160 4
COLLAR,6.8X10X12 92027 92027-162 4
BULB,12V 21W 92069 2 (LOCAL PROCUREMENT ITEM)
BULB,12V 21/5W 92069A 92069-1084 2
GROMMET,SIGNAL LAMP 92071 92071-0007 2
BOLT,6MM 92153 92153-0396 4
DAMPER 92161 92161-0091 1
DAMPER 92161A 92161-0163 4
SCREW,4X8 92172 92172-0146 4
NUT,4MM 92210 92210-0155 4
